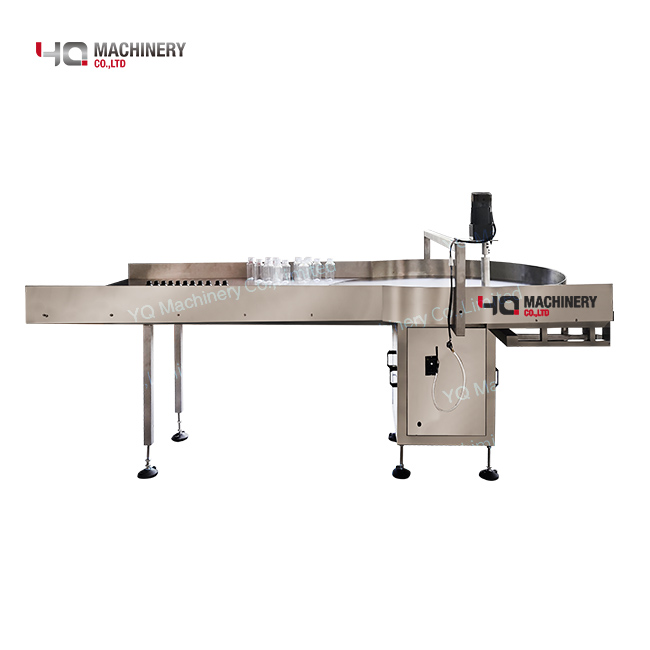

Bottle turntable
Introduction:
Can be widely used in glass bottles, plastic bottles, polyester bottles in the pharmaceutical, pesticide, food, chemical and other industries
Applicable bottle diameter: φ20mm ~ φ100mm
this bottle unscrambler turntable machine adopts frequency conversion stepless speed regulation for rotary motion.
Main feature
The bottle feeding turntable adopts frequency conversion stepless speed regulation for slewing motion, so that the bottle enters the conveyor belt in sequence under the action of rotating tangential force, and is matched with the packaging production line to achieve the purpose of saving labor and improving production efficiency.
This bottle turntable machine is ready to use after power-on, easy to operate, and can be widely used in glass bottles, plastic bottles, polyester bottles in the pharmaceutical, pesticide, food, chemical and other industries. It is an ideal auxiliary equipment for large, medium and small production workshops.
Main parameter
Overall dimensions (L * W *H) | 1200mm * 800mm * 850mm |
Weight | about 150kg |
Production capacity | 60 ~ 120 bottles / min |
Applicable bottle diameter | φ40mm ~ φ100mm |
Working turntable diameter | 800mm;1000mm;1200mm(option) |
Power requirements | AC220V, 50HZ |
Overall power | 0.5kw |

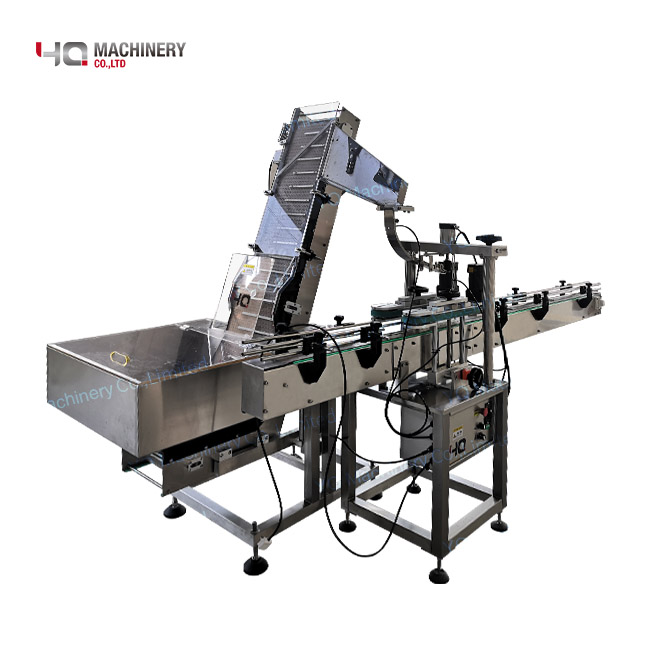

Bottle Pressing Machine
Introduction for plastic bottle pressing machine:
The plastic bottle pressing machine is based on the improved design of international advanced models, with fast cap pressing speed, high pass rate and easy operation. It can be applied to different bottle-shaped screw caps in food, pharmaceutical, daily chemical, pesticide, cosmetics and other industries. The machine has high degree of automation, good stability, and convenient adjustment. No replacement parts are needed when replacing the bottle shape or cap. It can be completed only by making adjustments (such as with a capping machine, which can be automatically capped).

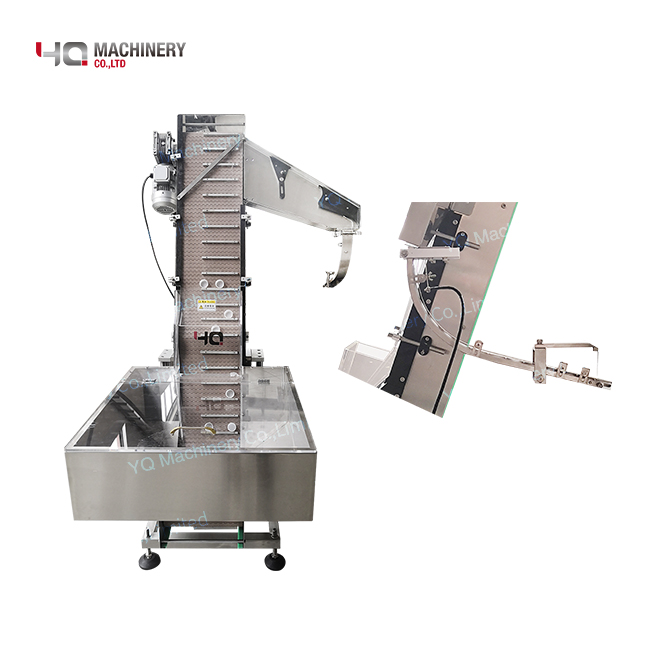

Features of cap pressing machinery:
1. Lid sorting and feeding mode: automatic cap sorting and dropping, sensor control
2. cap pressing method: cylinder type pressing, height and pressure are adjustable;
3. Conveying method: manual bottle placement, automatic bottle transportation; (can be connected to automatic filling equipment)
4. Control method: integrated control of electricity and air;
5. Capping force: adjustable;
6. Start mode: photoelectric sensor, automatic control
7. The pressing is tight and there is no leakage.
Technical parameter of lid pressing machines:
Model: | YQP-1 |
Power supply voltage (V / Hz) | AC 220/110V;50/60HZ(can be customized |
Heat sealing power (W) | 1100 |
Sealing bottle height (mm) | 100-400 |
Adapt to cover diameter (mm) | 50-300 |
Adapt to bottle diameter (mm) | 50-300 |
Working air pressure (mpa) | 0.3-0.5 |
Yield (bottle / minute) | 30-100 |
Dimensions (L × W × H) (mm) | 2000X700X1500 |
Net weight (kg) | 250 |

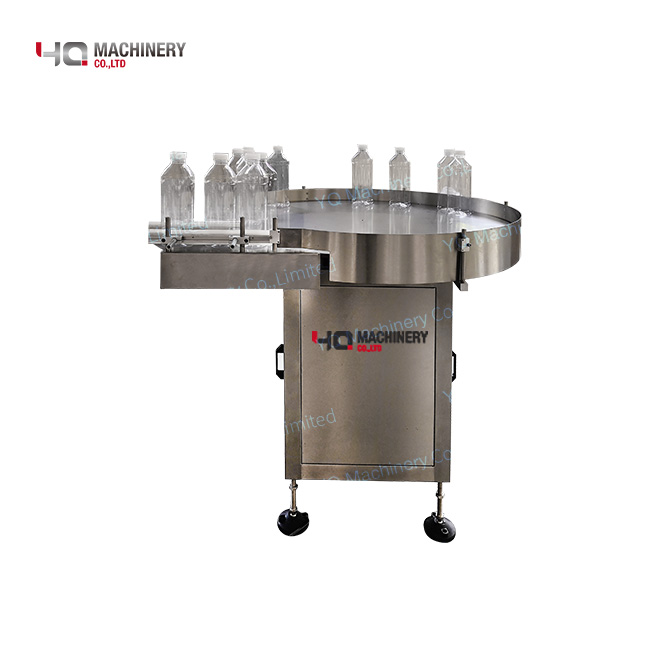

Bottle collector
Frame
• All Stainless Steel Construction to meet the GMP Standard
Specifications
Diameter of disk | 800mm;1000mm;1200mm(option) |
Turning disk motor power | 0.5kw |
Variable Speed Control for motor | |
Production Capacity | 30-120 bottles per min(can be adjusted) |
Machine dimension (L x W x H) | 1400 x 900x 1200mm |
Main Machine weight | 150kg |
Power Source | AC220V, 50Hz, 1 Phase(can be customized) |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
