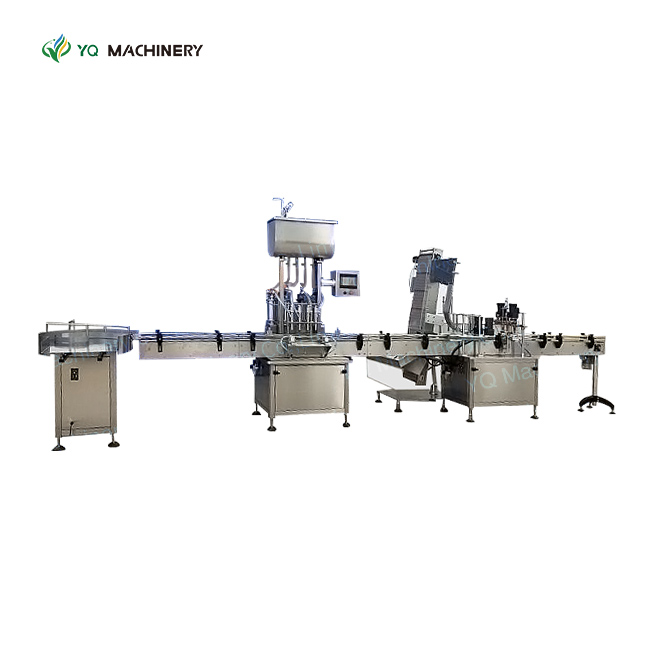

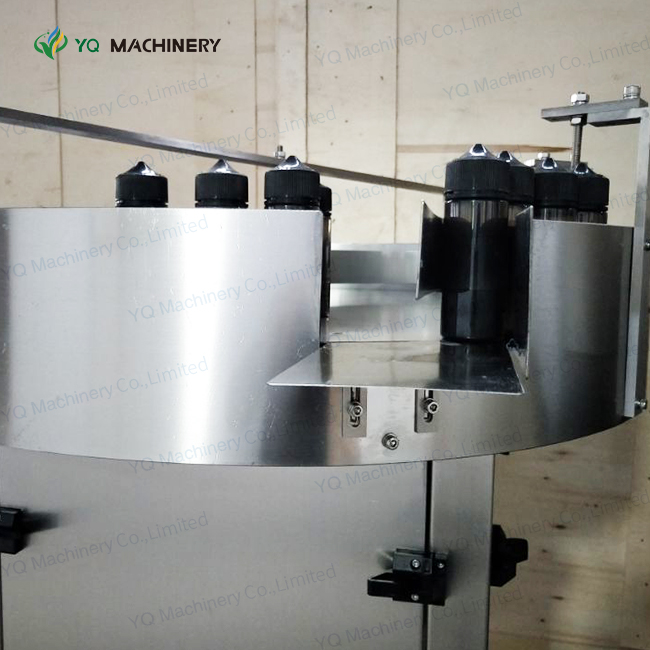

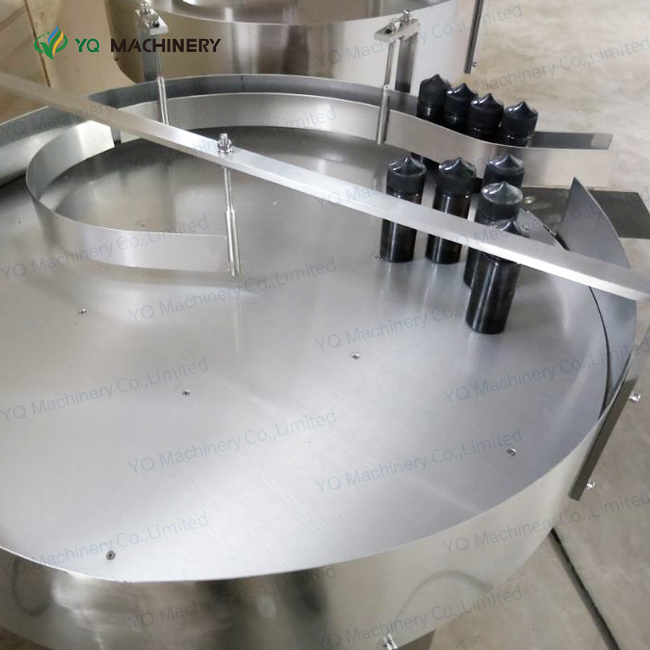

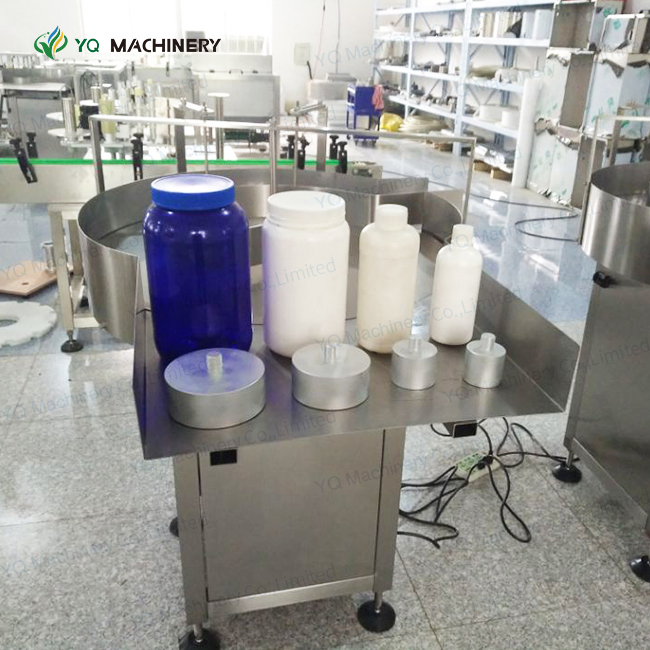

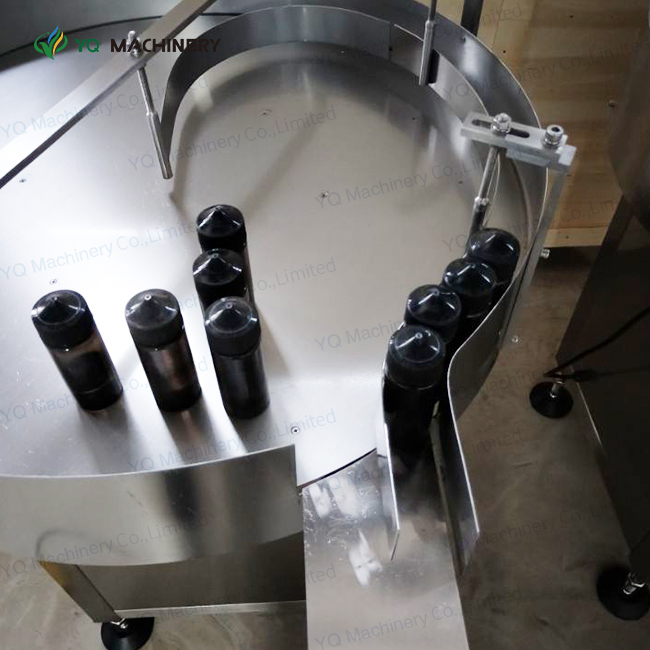

Bottle turntable
Introduction:
It is suitable for the automatic separation and transmission of round bottles,square or different shape bottles. It is compatible with plastic bottles and glass bottles.This bottle feeder can be connected to the filling machine,capping machine and labeling machine. Bottle turntable can be applied to the intermediate connection of the assembly line as a buffer platform to reduce the length of the conveyor belt.
Applicable bottle diameter can be adjusted freely, compatible with glass bottle, plastic bottle, bottle conveying speed is 20 ~ 100 bottles / min, the speed can be adjusted steplessly, which is convenient for production arrangement.
Working Principle:
The bottle feeding machine drives the product to automatically rotate, and the product is close to the edge of the turntable under the fluctuation of the dial plate, and the product is led out along the bottle sorting slot in an orderly manner.
Technical Parameters of bottle unscramble turntable
Turntable diameter | 600mm-1200mm (customized according to bottle size) |
Dimensions: | 1200 * 900 * 1300mm |
Voltage | 220V / 50H z |
Motor power | 0.12KW |
Weight | about 105KG |
Diameter | φ20mm ~ φ100mm |
Height | 20mm ~ 150mm |

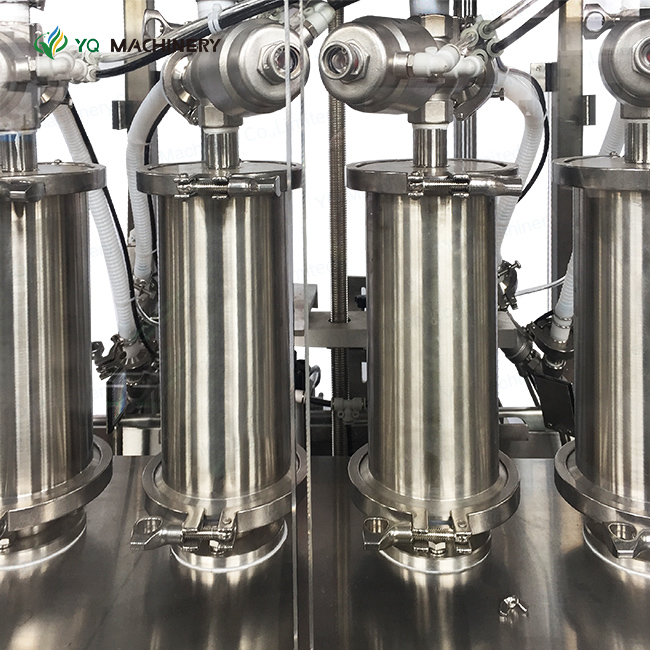

Jar filling machine
The volumetric filler machine adopt brand name electrical and pneumatic components.The filling equipment is controlled by PLC in conjunction with the human-machine interface. The design is novel, the appearance is beautiful, the interface is friendly, the adaptability is simple, the operation is accurate, the filling accuracy is high, and the maintenance is convenient. Widely suitable for filling of various liquids, viscous pastes, replacement of filling valves (ie, automatic filling machines for thick sauces with multiple heads), and filling of semi-fluids, paste and sauces containing particles.
Other features:
①Using world-renowned brands of electrical and pneumatic components, low failure rate, reliable performance and long service life.
② Using high-strength stainless steel frame, easy to disassemble, easy to clean and meet GMP requirements
③The filling volume and filling speed are easy to adjust, operated and displayed by the touch screen, and the appearance is beautiful;
④ It has a function of no bottle and no filling, and the liquid level is automatically controlled for feeding;
⑤ You can quickly adjust bottles of different shapes and specifications without changing parts;
⑥The filling head is equipped with a special leak-proof device, and there is no drawing or dripping during filling.
Note: The filling range and speed can be designed according to user needs for different filling heads.
Technical parameters of filling equipment:
Production capacity | ≤2000 bottles / hour (filling speed of 200ml) |
Filling accuracy | ≤ ± 1% (200ml) |
Filling capacity | 100ml-1000ml |
Power supply | AC220V / 50Hz |
Power | ≤2.5Kw |
Weight | about 600Kg |
Dimensions (L × W × H) | 1500mm × 1150mm × 1800mm |
Bottle cap sealing machine
Introduction of cap pressing machine:
Automatic capping machine has fast capping speed, high pass rate and easy operation. Applicable to different sizes of caps in food, pharmaceutical, daily chemical, pesticide, cosmetics and other industries. The capper machine has good stability, and convenient adjustment. No spare parts are required when changing the bottle shape or cap. It can be completed by adjusting. It can be selected according to actual needs.
Device parameters of capping machinery:
Power supply voltage (V / Hz) | AC 220 / 50HZ 380 / 60HZ |
Power (W) | 1000W |
Sealing height (mm): | 38-200MM |
Adapt to cover diameter (mm) | 30-80MM |
Adapt to bottle diameter (mm) | 30-130MM |
Working pressure (mpa) | 0.6-0.8MPa |
Output (bottle / min) | 20-50bottles / min |
Dimensions (L × W × H) (mm) | 2000 * 900 * 1450mm |
Net weight (kg) | 200kg |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
