YQGZ-50
YQ

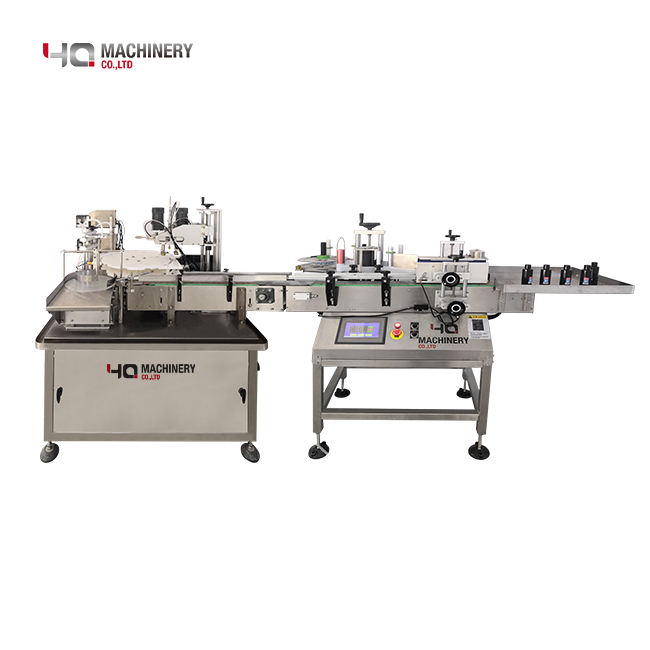

Bottle filling and capping machine
Introduction:
Monoblock filling and capping machine adopts disc positioning filling and four-wheel capping, which is stable and reliable, with accuracy of over 99%. This machine uses high-precision closed cam indexing station, which has high precision, reliable operation and long service life. The indexer has a simple structure and can be used for long-term.
This bottle filling machine is mainly suitable for fill various liquids, such as cream, lotion, e-liquid, shampoo,etc. Widely used in food, pharmaceutical, chemical industry and scientific research fields. This liquid filling machine is filled with advanced peristaltic pumps or piston pumps or plunger pump with high filling accuracy. The filling machinery includes conveyor belt parts, filling parts, capping parts etc. It has a compact structure, reasonable design and stable operation.The equipment can not only stand alone production, but also form a linked production line with bottle washing machine, dryer and other equipment. Fully meet the national GMP requirements. This filling and capping machine can upgrade the electrical configuration according to customer requirements.
Advantage of this bottling machine:
1.Man-machine interface setting, intuitive and convenient operation, PLC control, accurate loading.
2. Variable frequency control, arbitrary adjustment of production speed, automatic counting.
3. Automatic stop function, no bottle, no filling, no inner stopper.
4. Disc positioning filling, stable and reliable.
5. High-precision cam indexer control, accurate positioning.
6. Made of SUS304 and 316L stainless steel, fully comply with GMP requirements.
Technical Parameters:
Model | YQGZ-50 |
Power supply | 110/220v;50/60hz(can be customized) |
Power | 1.5 kw |
Loading range | 10-100ml,50-500ml |
Loading error | ≤ ± 1% |
Production capacity | 20-40 bottles / minute |
Dimensions | 1400 * 1600 * 1500mm |
Net weight of machine | 300 kg |
Working process:
1. Put the bottles on the turntable manually or the bottles move to filling machine automatically
2. Automatic filling;
3. Put caps manually;
4. Automatic capping;
5. finished product output.

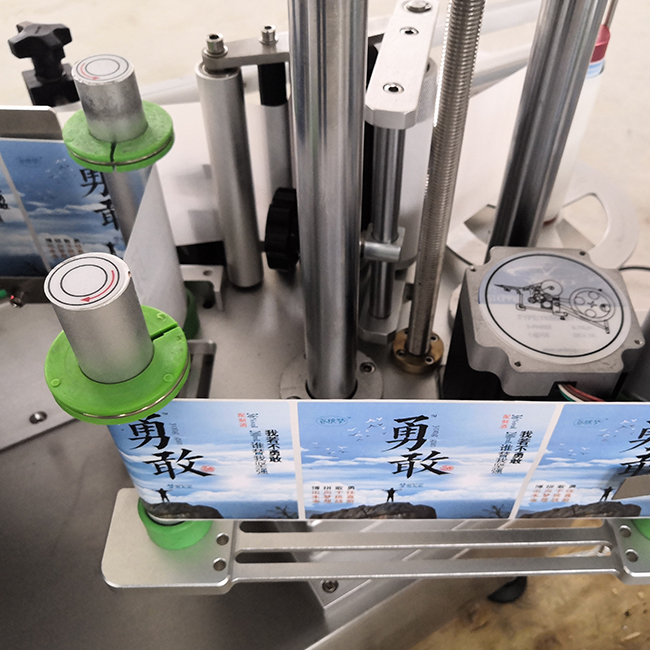

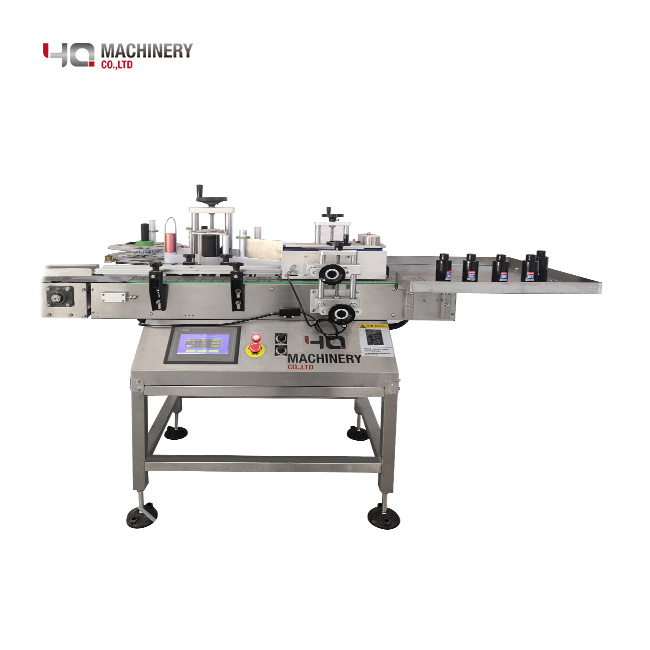

Bottle Labeling machine
Advantage of labeler:
a.Advanced and easy-to-operate human-machine interface system, simple and intuitive, and complete functions.
b.The PLC control system is adopted to make the machine run more stable and have a longer life.
c.General-purpose bottle sorting device. Bottles of any diameter can be adjusted quickly without changing accessories.
Optional of this label machine:
Transparent label sensor, synchronous thermal printer, thermal transfer printer, inkjet printer
Technical parameters
1. Applicable product range: diameter 10-100 mm
2.Applicable label range: width 10-180 mm, length 10-400 mm
3. Labeling speed: 5-40m / min.
4. Labeling accuracy: ± 1mm.
5. Voltage: 110/220V; 50/60Hz(can be customized)
6. Power: 0.8KW.
7. Inner diameter of paper roll: 76mm; Outer diameter of paper roll: max. 300mm.
How to adjust filling capping machine
Scope of application:
This labeling machine is Suit for different size round shape products, such as round jars ,round bottle, round cans in food, medicine, daily chemical and other light industries, this labeling machine can be matched with date printer, which can print the batch number and other information while labeling.

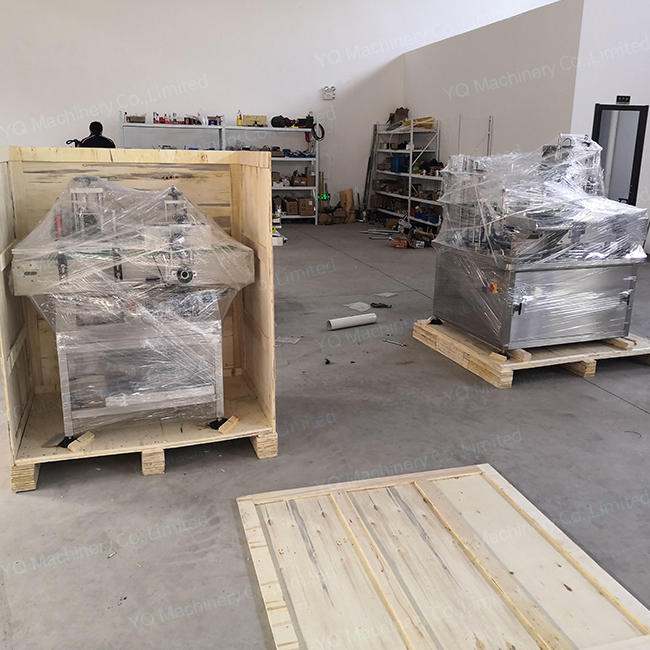

About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:

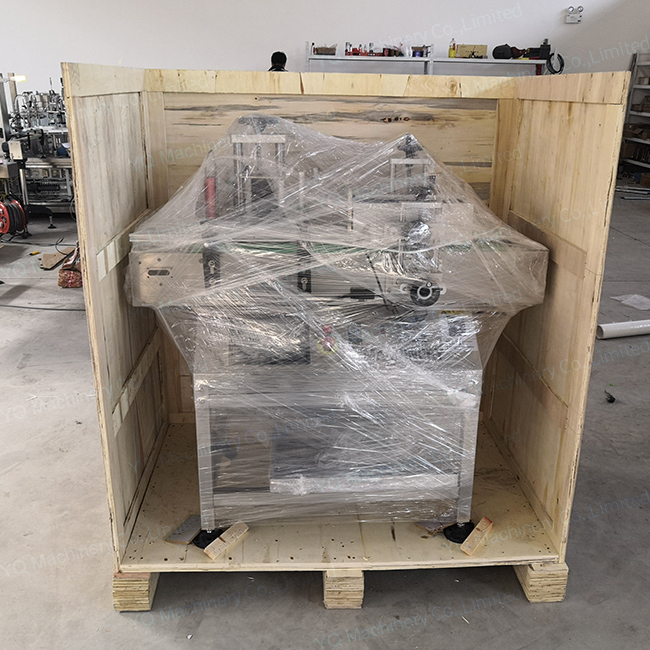

1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.

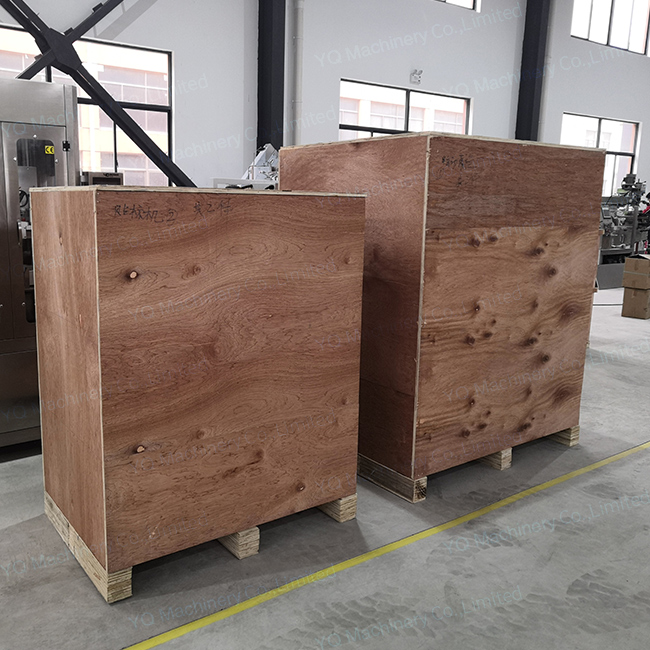

2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
