Bottle unscramble machine
Application:
Automatic empty bottles unscrambler is special designed for plastic empty bottles. empty bottles will be sent to the storage tank, then the bottles are put in order automatically and mouth upward into the production line. It adopts advanced overload safety production devices. This machine is used in pharmaceutical factory, health care products. the suitable bottles include round bottles, special shaped bottles.
Working principle:
It is used in the automatic bottle unscrambler of plastic bottles in pharmaceutical, chemical, food and other industries. It can be used with filling,capping and labeling machine.
The bottle unscramble machinery is mainly composed of storage hopper, bottle sorting star wheel, curve bottle turning machine, etc. After the bottle is pour into the storage hopper, star wheel rotates and arranges, so that the bottles are pushed upright one by one to the bottle guide groove, and then sent to the next process in conveyor. This bottle unscramble equipment adapts to different production speed requirements.
Main Features:
(1) This bottle arranging machine is electromechanical integration equipment, convenient operation, simple maintenance, reliable running.
(2) With a bottle of quantitative detection and control excessive overload protection device.
(3) Frame and material barrel is made of high quality stainless steel material, beautiful appearance, in line with the GMP requirements.
(4) Don't need to use air bottle blowing, the use of automatic bottle body, and is equipped with a set bottle device, greatly improve production efficiency.
(5)Only take 3-5 mins to do changeover for different sizes
Main technical parameters:
Bottle type | plastic round bottle |
Production speed | 50-100bottles/min |
Voltage | AC220V;50/60HZ |
Power | 0.3kw |
Weight | 500kg |
Machine dimension | 2200×1150×1500MM |
Inline filler
Introduction of filling equipment:
The multi-head filling machine adopts the piston pump.The electrical and pneumatic components are selected from world-famous brands. It is controlled by PLC and man-machine interface. It has a novel design, beautiful appearance, friendly interface, strong adaptability, simple operation. It is widely used for the filling of various liquids, and semi-fluids, pastes, sauces without particles.
Features of automatic filling machines:
① The use of world-famous brands of electrical appliances and pneumatic components, low failure rate, reliable performance and long service life.
②Adopt high-strength stainless steel frame, easy disassembly and assembly, easy to clean, in line with GMP requirements
③The filling volume and filling speed are easy to adjust, operated and displayed by the touch screen, with beautiful appearance;
④ With no bottle and no filling function, the liquid level automatically controls the liquid feeding;
⑤You can quickly adjust bottles of different shapes and specifications without replacing parts;
⑥The filling head is equipped with a special leak-proof device, and the filling is absolutely free of wire drawing and dripping.
Note: The filling range and speed can be designed according to user needs with different numbers of filling heads.
Technical Parameters of filling machinery:
Number of filling heads | 4, 6, 8, 10, 12,16 (can be customized) |
Filling capacity | 50-500ml;100~1000ml;1000-5000ml (can be customized) |
Filling form | piston filling |
Theoretical filling speed | 10-100 bottles / min |
Filling accuracy | 1% |
Conveyor belt width | 83,114,152 (mm) |
Conveyor belt | 6 meters |
The height of the conveyor belt from the ground | 850 ± 50 (mm) |
Machine power | 2KW / 220V AC single phase(can be customized) |
Air source | 0.6-0.8MPa |

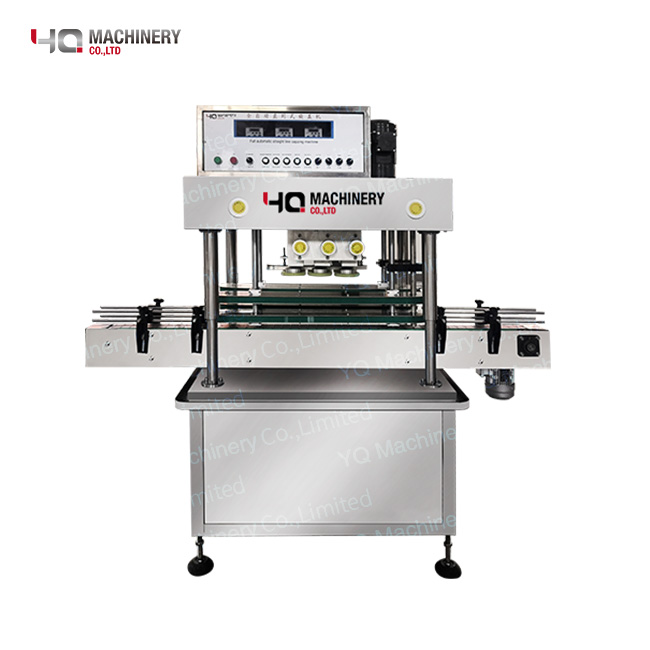

Spray bottle capping machine
Main application:
The Automatic Spindle Capper from Liquid Packaging Solutions is ideal for almost any packaging system. Automatic spindle capping machinery provides continuous capping for a wide variety of cap sizes, cap types, container sizes and container types! An automatic cap delivery system allows for continuous capping, making the spindle capper ideal for automated, inline packaging systems.
Products Information:
Machine applicable to the diameter 10 mm-100mm all kinds of bottle caps, overcomes the traditional screw cap machine a bottle with a set of star wheel, a cap with a covering of ills. This kind of novel and unique design, convenient operation and adjustment, the fastest production up to 150 bottles/minute. It can be used to single production, but also it’s the ideal models for the filling production line.
Main features:
1. Portable stainless steel construction
2. Cap sorting device and Cap chute
3. Adjustable gripper belts
4. Power height adjustment
5. Stainless steel face panel and lower base for easy cleanup
Technical Parameter
Power supply | AC220V / 50HZ,60HZ |
Power | 1.5KW |
Cap Diameter | 10~100mm |
Capping speed | 40-150bottles/min |
Suitable bottle height | 50~280mm |
Air sauce pressure | 0.6-0.8MPa |
Net Weight | 650kg |

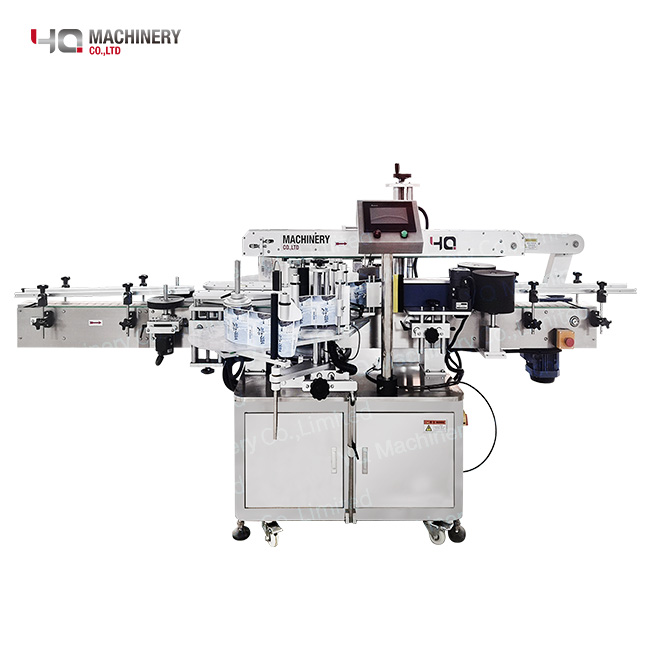

Pressure sensitive labeling machine
Introduction:
This labeling machine is suitable for foodstuff, daily chemical, pharmaceutical, pesticide and other lines. For rectangle bottle, oval bottle with double sides labeling or single side labeling. Automatically controlled by computer (PLC), touch screen control panel, easily operation. No bottle no labeling.
Features:
1. The whole labeler machine is made of S304 stainless steel.
2. The labeling head is driven by an advanced stepping motor imported from Japan.
3.All electric eyes are advanced photoelectric eyes in Japan and Germany.
4. PLC cooperates with large-scale human-machine interface control and contains 60 sets of memory.
5. This labeling machines is suitable for single-machine single-person operation of a small variety of products.
6. This label machine has mechanisms for bottle guiding, bottle separation, labeling, wheel leveling, counting, etc.
7.The labeling position, height, and angle can be adjusted.
8.Can be used in conjunction with the production line
Technical Parameter:
Power supply | AC 220V; 50Hz |
Power | 2.5 kW |
Labeling speed | 30-80 bottle/min |
Inner diameter of paper roll | 75mm |
Max outer diameter of paper roll | 350mm |
Standard label height | 0 ~ 130mm |
Maximum label height | 200mm |
Weight | 750 Kg |
Machine dimension | ( L × W × H ) 2600mm x 1200mm x 1600mm |

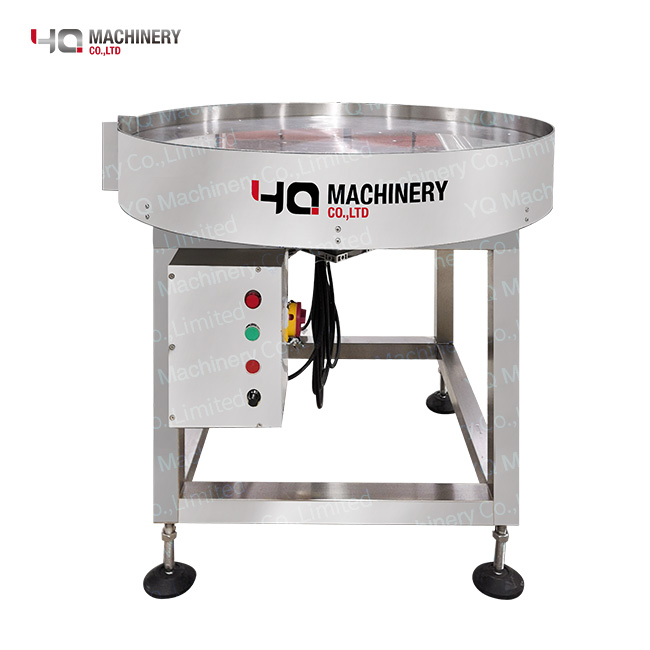

Bottle accumulator table
Introduction:
The function of this unscrambler disc is to arrange glass or plastic bottle.It is used to collect bottles after capping or labeling.
The bottle feeding turntable is made of 304 stainless steel, which is easy to clean and maintain.
Technical Parameters:
Production speed | 30-100 bottles/min (speed adjustable) |
Applicable specifications | 10-1000 ml |
Bottle diameter | φ10-φ90 mm |
The bottle height | 85-300 mm |
Voltage | 220v three phase;50/60hz |
Power | 0.2 kW |
Weight | 150kg |
Machine size | 1000*1000*1300mm (L×W×H) |
Stainless steel | SUS304 material |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
