YQTB-110
YQ
A. Pack On Table
Introduction:
It is suitable for the automatic separation and transmission of round bottles,square or different shape bottles. It is compatible with plastic bottles and glass bottles.This bottle feeder can be connected to the filling machine,capping machine and labeling machine. Bottle turntable can be applied to the intermediate connection of the assembly line as a buffer platform to reduce the length of the conveyor belt.
Applicable bottle diameter can be adjusted freely, compatible with glass bottle, plastic bottle, bottle conveying speed is 20 ~ 100 bottles / min, the speed can be adjusted steplessly, which is convenient for production arrangement.
Working Principle:
The bottle feeding machine drives the product to automatically rotate, and the product is close to the edge of the turntable under the fluctuation of the dial plate, and the product is led out along the bottle sorting slot in an orderly manner.
Features:
All-in-one versatility: Different table diameters with variable speed control.
AC variable speed drive: speed can be adjusted precisely.
Two-way control: Allows turntables to transport or collect products in the packaging line.
Durable structure: The stainless steel SUS 304 structure means that the unit can handle the harshest environments.
Height adjustable feet: Allows the turntable to match the conveyor height for a seamless transition. They are also vibration-resistant and can run smoothly.
Industry Applications:
Food Industry : honey, fruit jam, butter, olive oil, tomato sauce, peanut butter, chocolate cream
Daliy chemical:shampoo,body wash,liquid detergent.
Technical Parameters:
Applicable specifications | 10-2000 ml |
Bottle diameter | 10-80 mm |
Bottle height | 85-300 mm |
Production capacity | 30-120 BPM (speed adjustable) |
Voltage | 110v/220v;50hz/60hz |
Power | 0.5 kw |
Weight | 95kg |
Machine size | 1000*800*1000mm |
Stainless steel | SUS304 material |
B. Sticker Labeling Machine
Features:
1. The labeling machine is compact design for easy installation, operation and maintenance.
2. Main body is made of SS304.
3. Label dispensing is driven by servo motor of great precision.
4.All photocell sensors are famous brand
5.HMI Touch panel is in English/Chinese interface. Other languages available as requested.

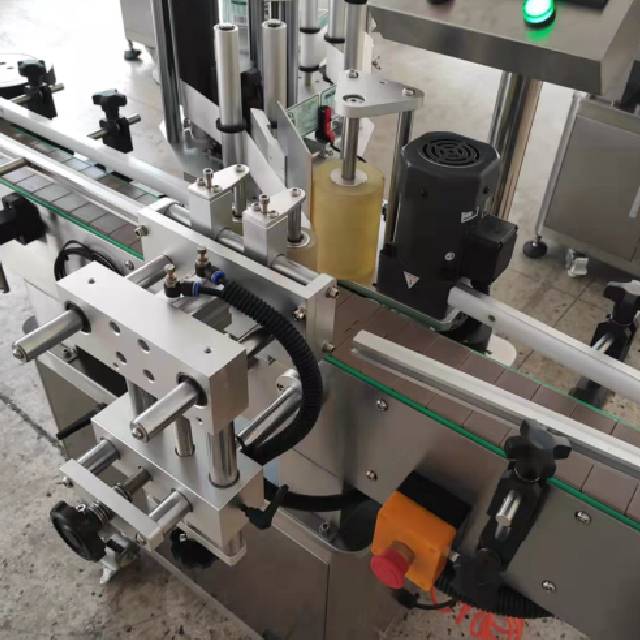

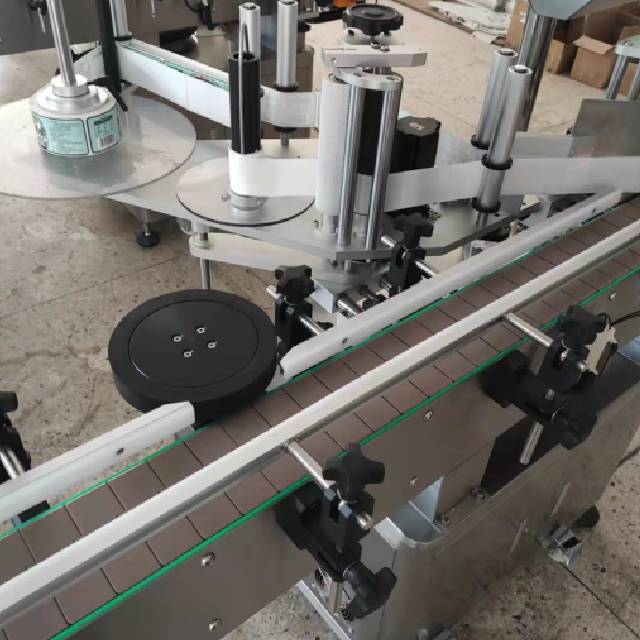

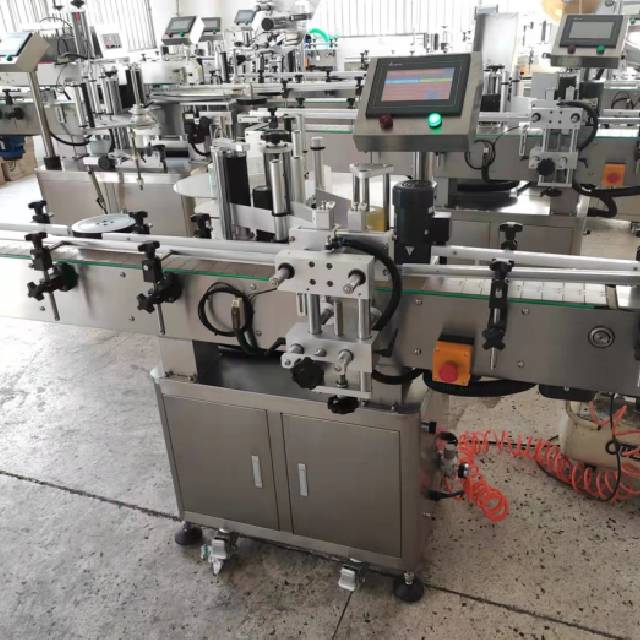

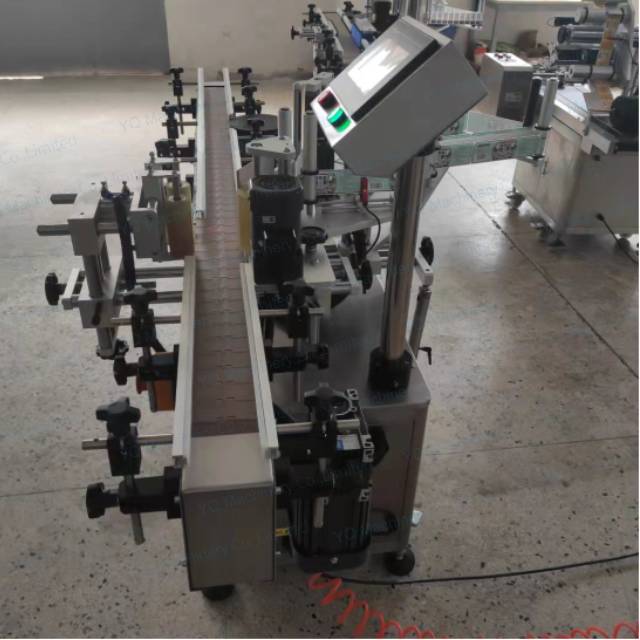

Detailed images
Main technical parameters:
Operating direction | Left or Right |
Labeling Accuracy | ±1.0 mm(subject to the roughness of the plane) |
Production(bottle/min) | 10-100(according to the size of bottle and label) |
Label Specifications | adhesive sticker,transparent or opaque |
The application of bottle | Outer diameter 20-100mm Height 35-200mm(can be customized according to your requirement) |
The application of label | Height 20-180mm ; Length 23-300mm(can be customized according to your requirement) |
The inner diameter of label roll | 76mm |
The outer diameter of label roll | 350mm (max) |
The power of motor(w) | 1.5KW |
Voltage | AC220V 50/60HZ Single phase |
Size appearance(mm) | 2000(L) 800(W) 1500(H)mm |
C. Pack Off Table
Features:
All-in-one versatility: Different table diameters with variable speed control.
AC variable speed drive: speed can be adjusted precisely.
Two-way control: Allows turntables to transport or collect products in the packaging line.
Durable structure: The stainless steel SUS 304 structure means that the unit can handle the harshest environments.
Height adjustable feet: Allows the turntable to match the conveyor height for a seamless transition. They are also vibration-resistant and can run smoothly.
Technical Parameters:
Applicable specifications | 10-1000 ml |
Bottle height | 85-300 mm |
Production capacity | 30-120 BPM (speed adjustable) |
Voltage | 110v/220v;50hz/60hz |
Power | 0.3 kw |
Weight | 100kg |
Machine size | 800*900*850mm 1000*1000*850mm |
Stainless steel | SUS304 material |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
After-sale service:
1. Instruction for Installation and Debugging
Before delivery, we takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
We also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer, provides the engineer with round-trip tickets, accommodation, vehicle and $100 per day salary.
2. User Training
Before delivery, we will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3. Warranty Period
The warranty period for machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.Mechanical models are standard, make special design according to customer requirements.
