YQW-30
YQ
Description:

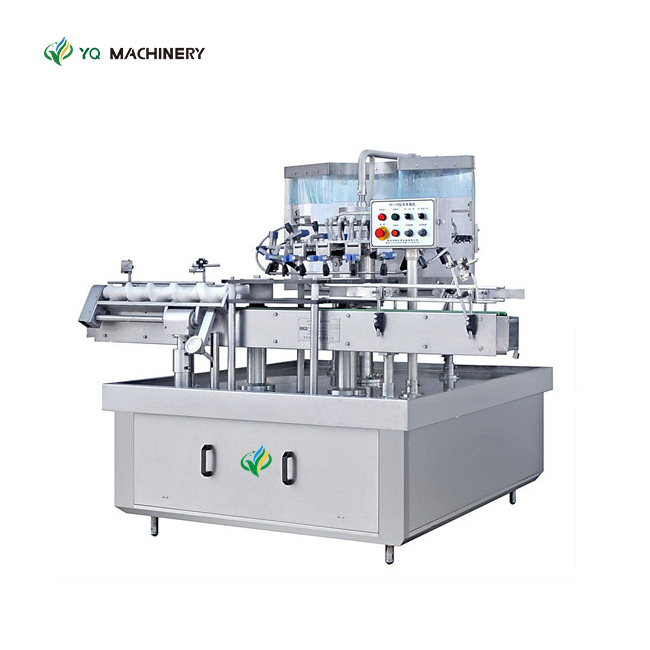

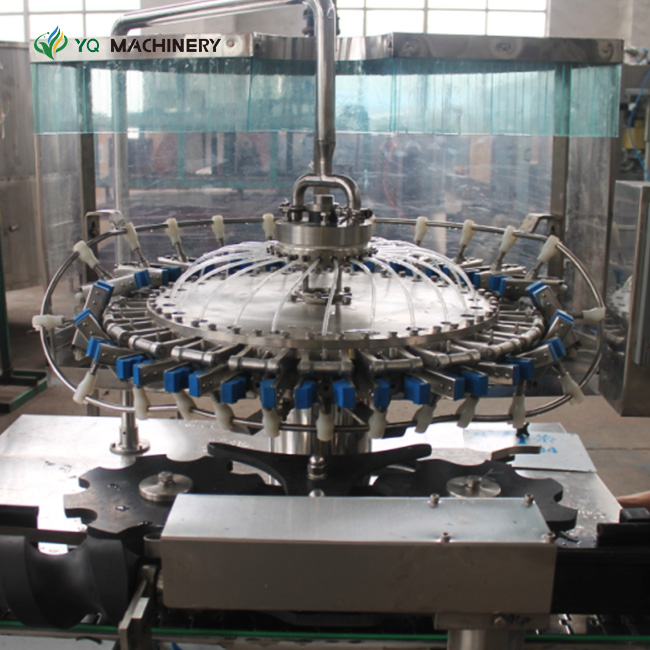

1. This is a rotary bottle washing machine.
2. This machine applies to foodstuff, pharmacy, cosmetic, chemical and pesticide industries.
3. It is suitable for different specifications of bottles.
4. Production capacity : 8000-10000 bottles/hour
Major Characteristics:
It adopts continual tracking to spray and wash bottles, high efficiency, well effect of rinse, and it is suitable for different specifications of bottles. Widely range, easy operating convenient maintaining.
Main Performance parameter:
Power supply : AC220V ; 50Hz ( or according to client voltage requirement )
Pneumatic ( air-operated ) source : 0.6Mpa clean and Stable compressed airbottles/hour
Machine weight : 600kg
Numbers of washing heads :
Pressure of water : 0.2 Mpa~0.4Mpa
Medium of rinse : germfree water
Model | Washing heads | Capacity(BPH) | Motor power (kw) | Overall dimension(mm) |
YQW-H8 | 8 | 1000-2000 | 1.2 | 2000*1400*2300 |
YQW-H14 | 14 | 2000-4000 | 1.5 | 2100*1400*2500 |
YQW-H16 | 16 | 5000-7000 | 2 | 2250*1600*2600 |
YQW-H18 | 18 | 6000-8000 | 2.2 | 2460*1720*2650 |
YQW-H24 | 24 | 8000-10000 | 3 | 3100*2100*2650 |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
