YQPF-1000
YQ
Introduction:

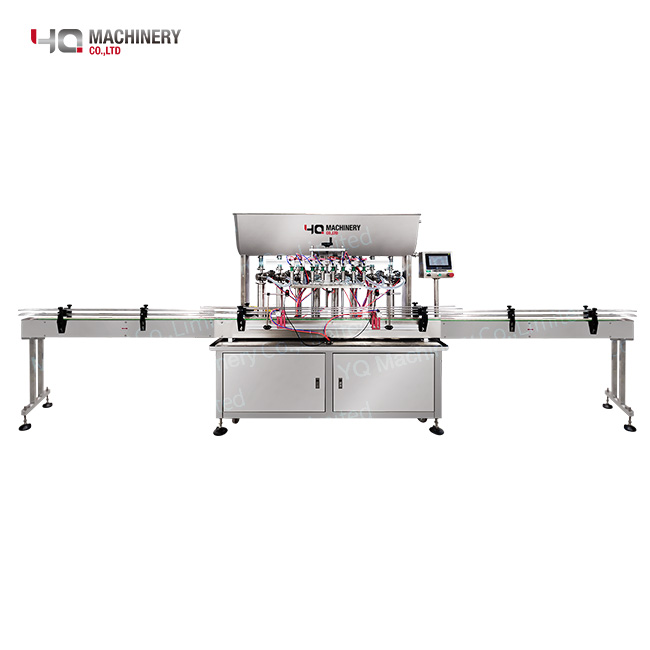

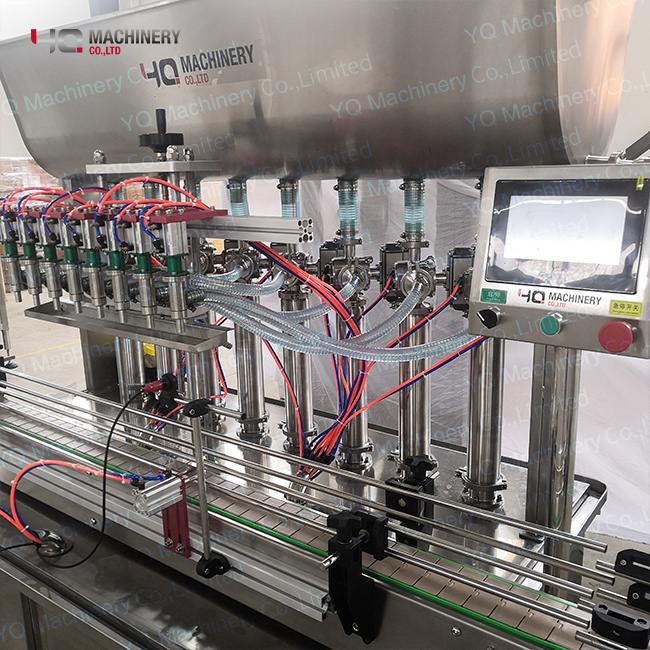

The filling equipment integrates light, electricity, air and PLC microcomputer control. It can automatically combine with bottle unscramble, bottle washing, filling, capping, coding, and labeling etc..The equipment can be added or reduced according to customer requirements. This assembly line adopts a linear structure, a dedicated metering pump is used for quantitative, accurate metering and less waste of finished products.
Advantage:
Reasonable design, compact structure, beautiful appearance, stable and reliable performance, high filling accuracy, strong adaptability, simple operation and convenient maintenance. It is widely used in the production of food, daily chemical, pharmaceutical and other industries.
Features:
1. Adopt steady electrical and pneumatic components, low failure rate, stable and reliable performance, and long service life;
2. All contact materials are made of 304 stainless steel, corrosion-resistant, easy to disassemble and assemble, easy to clean, and meet sanitary requirements;
3. Simple adjustment of filling volume and filling speed, intelligent photoelectric sensor, bottle filling machine, no filling without bottle, automatic liquid level control and feeding, convenient and fast, saving labor;
4. The filler has strong compatibility, no need to replace parts, you can quickly adjust and replace different sizes of bottles, which can meet the production requirements of multiple varieties and specifications;

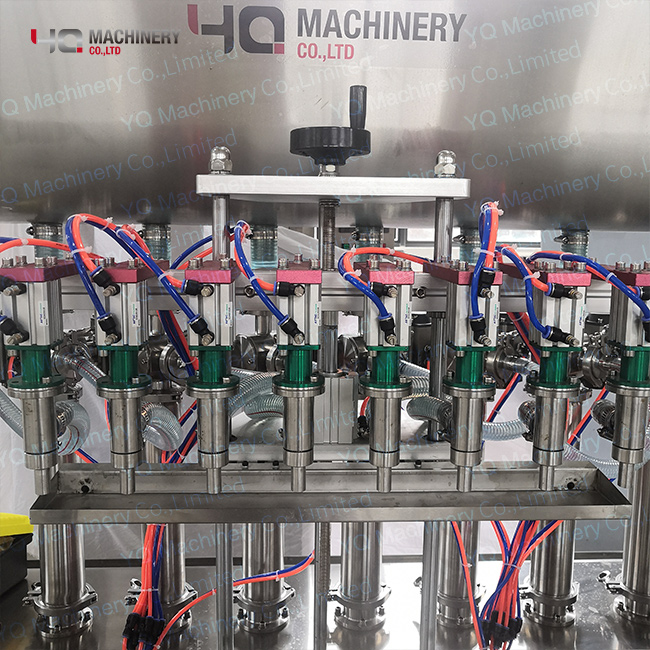

5. The filling nozzle is equipped with an anti-drip device to ensure no dripping during filling.

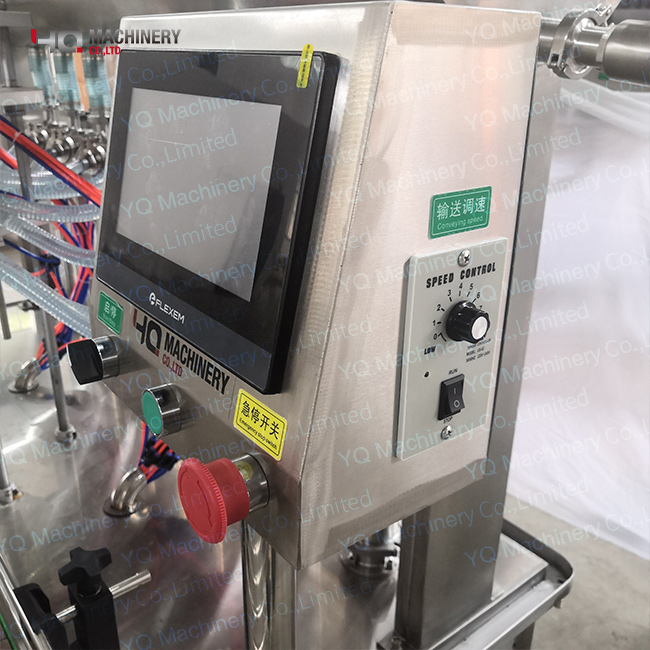

6. The terminal display and operation platform adopts English menus. The man-machine interface has functions such as parameter setting, working status, help information, fault warning, etc., which is intuitive and simple; it greatly facilitates parameter adjustment and Testing of various functions;
Technical Parameters of filling machinery:
Number of filling heads | 4, 6, 8, 10, 12,16 (can be customized) |
Filling capacity | 50-500ml;100~1000ml;1000-5000ml (can be customized) |

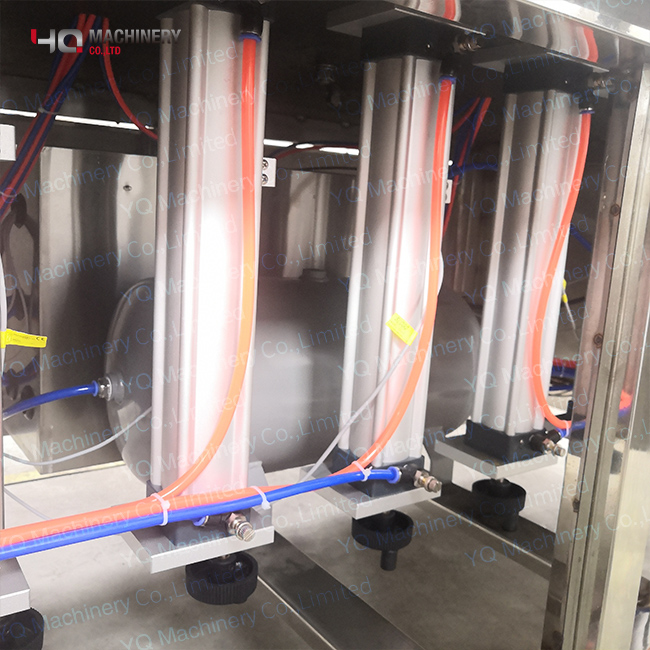

Filling form | piston filling |
Theoretical filling speed | 10-100 bottles / min |
Filling accuracy | 1% |
Conveyor belt width | 83,114,152 (mm) |
Conveyor belt | 6 meters |
The height of the conveyor belt from the ground | 850 ± 50 (mm) |
Machine power | 2KW / 220V AC single phase(can be customized) |
Air source | 0.6-0.8MPa |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
