Views: 152 Author: Tracy Publish Time: 2017-02-15 Origin: YQ MACHINERY CO.,LIMTED

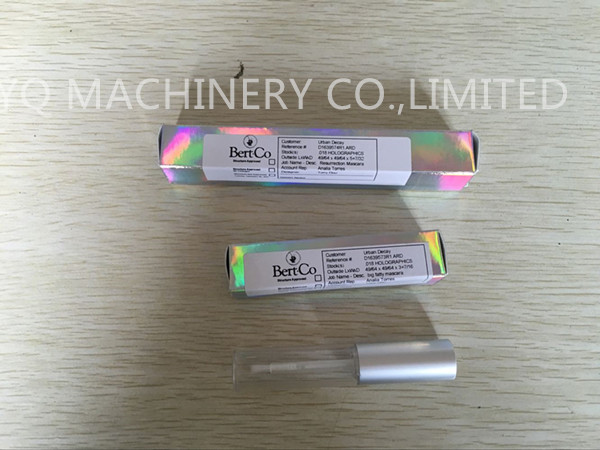

The client from USA made a purchase of cartoning machine.It is used to pack comestic product.

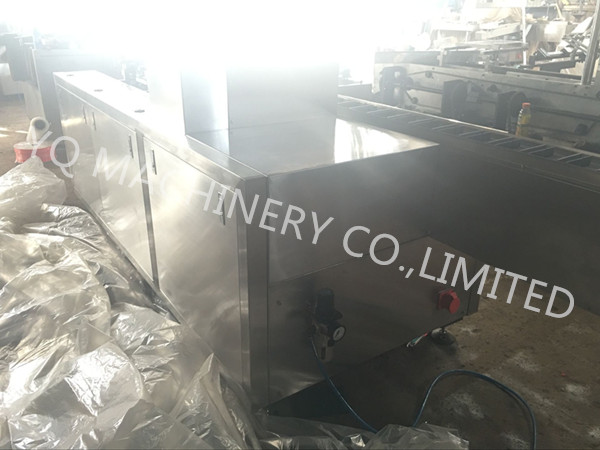

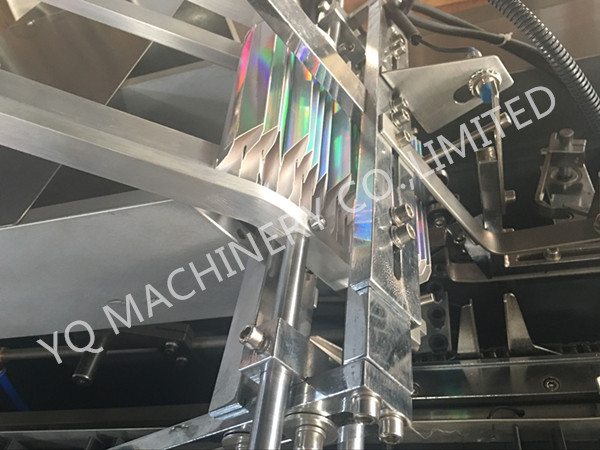

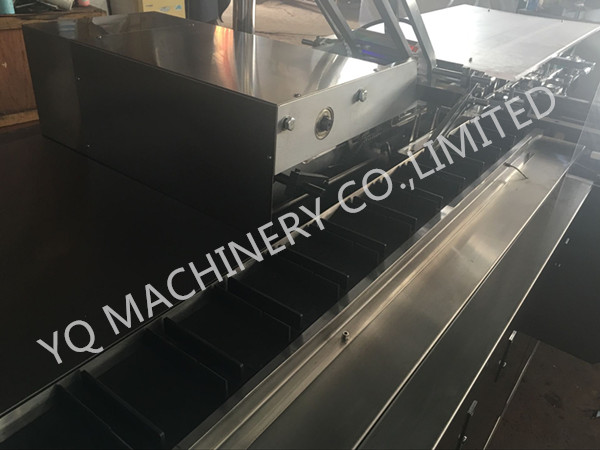

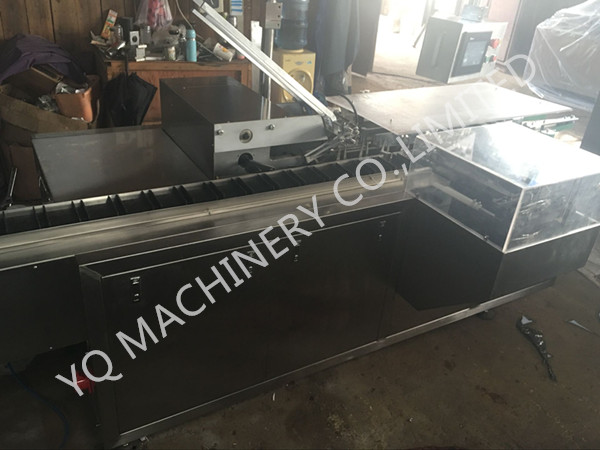

Below is pic of the product:

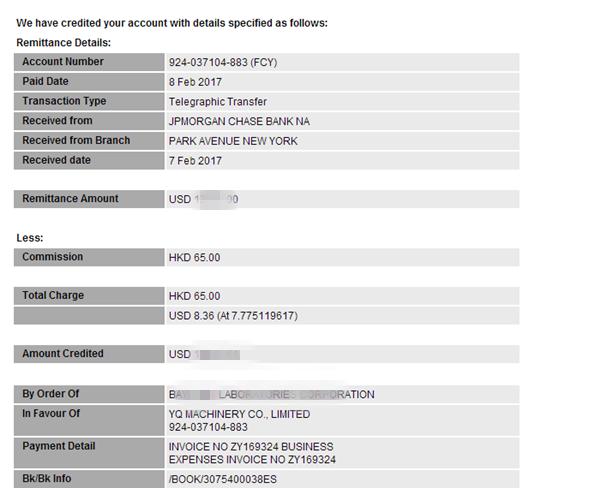

Bank receipt:
You can check the details of our box cartoning machine:
Introduction of this cartoning machine:
It is a continuous motion Carton Boxes Packing Machine,which issuitable for the packaging of snack, bottles, vials, noodle,pillow packs, etc.The machine finished running by a series of photo-electro controller to make the machine stability and guarantee the packing quality. It includes cantons in suction and open, products put into, printing batch number, sealing or option hot-glue device. The machine can be single used or linked with Filling Machine, Blister Packing Machine, Shrink Machine, Three Dimensional Packaging Machine to form a production chain.
Feature of cartoning machine:

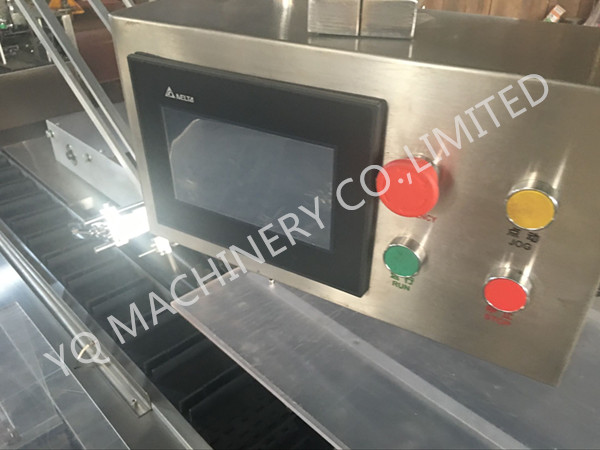

1.International famous brand of electrical component such as PLC touch screen, frequency inverters,etc.
2.Adopt human-machine operation system.
3.Automatically displaying device for trouble, speed and finished products counting.
4.Machine running without pressing if no products or incorrect position of products. And stopping
automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.
5.No products not suction leaflet, no leaflet not suction carton .
6.Automatic detection and rejection device for lacking blister goods and leaflets.
7.Protecting automatically for overloading.
8.stable performance , operation is easy .
Main technical parameters of this cartoning machine:
Encasing speed | 50-120 boxes/min | |
Box | Quality requirement | 250-350g/m2 |
Dimension range L×W×H | (30-250)mm×(20-170)mm×(15-90)mm | |
Quality requirement | 60-70g/m2 | |
Compressed air | Working pressure | ≥0.6Mpa |
Air consumption | 120-160L/min | |
Power | 380V/220V,50Hz/60Hz | |
Motor power | 1.5kw | |
Machine dimension(L×W×H) | 3100mm×1100mm×1850mm | |
The videos are listed and they show you how to use this cartoning machine:
how to use touch screen
2.how to adjust if the sizes of boxes are different
3.how to adjust the tank chain to fit for different size of products
4.how to adjust of malposition box and pusher are not in the same position
5.how to adjust the sealing effect for different boxes
