YQIC-100
YQ
Video 2

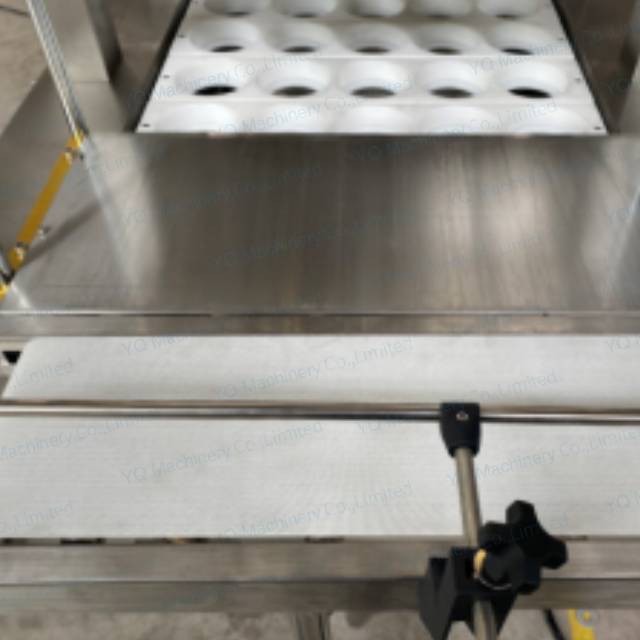

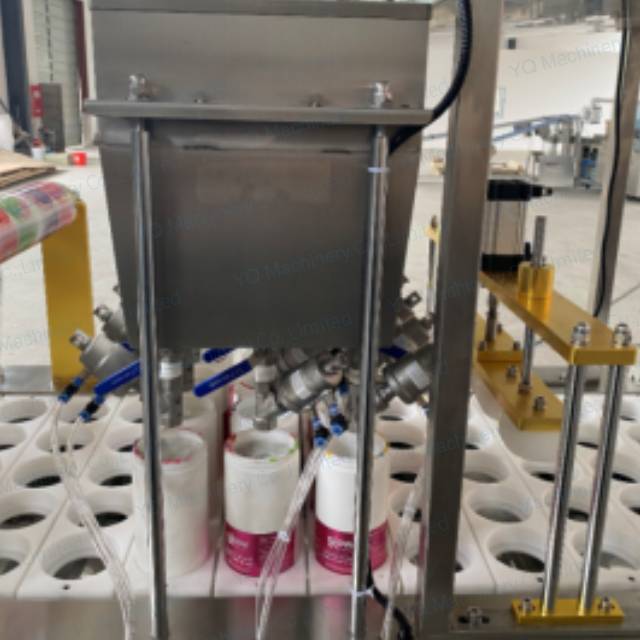

A.Canister Filling And Sealing Machine
Introduction:
Canister Filling and Sealing Machine is suitable for the production of various products. This one is customized for wet tissue.It can automatically complete the functions of automatic filling, film cutting, sealing and canister discharging . Wet wipes packaging machine adopts brand name programmable logic controller,pneumatic control components, intelligent digital display temperature control system, with high sealing strength, good sealing,low failurerate, etc. It is the first choice for the automatic production.
Features:
1. The body of this canister filler and sealer is welded with stainless steel. The appearance is beautiful, bright and clean.
2. Adopting the integration of gas, electricity and machinery, the transmission is stable, and the supply, filling, film absorption, sealing, and product output of the container are fully automated to save manpower and reduce costs.
3. High efficiency, can fill and seal multiple containers at the same time.
4. Adopt double sealing device, two times, tight sealing and absolutely reliable quality.
Technical Parameter:
Model | YQCF4 | YQCF6 | YQCF8 | YQCF10 |
Production capacity | 3000-4000Cups/H | 5000-6000Cups/H | 7000-8000Cups/H | 9000-10000Cups/H |
Filling range | 10-100ml;20-200ml;300-300ml;50-500ml;100-1000ml(can be customized) | |||
Air consumption | 0.8m3/Min | 1m3/Min | 1.2m3/Min | 1.6m3/Min |
Voltage | 220V,50HZ | |||
Power | 3.5Kw | 5Kw | 6Kw | 7.5Kw |
Weight | 700Kg | 800Kg | 1000Kg | 1200Kg |
Overall dimension | 3300x710x1700mm | 3800 x 630 x1700mm | 3800x710x1700mm | 4000x800x1700mm |

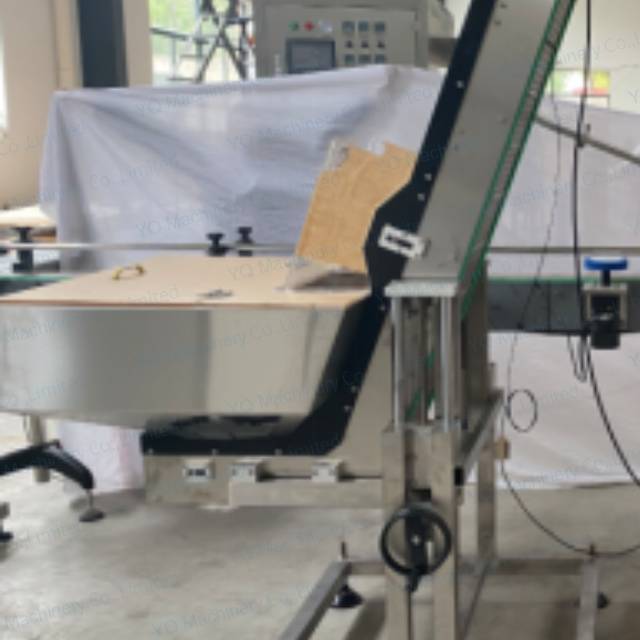

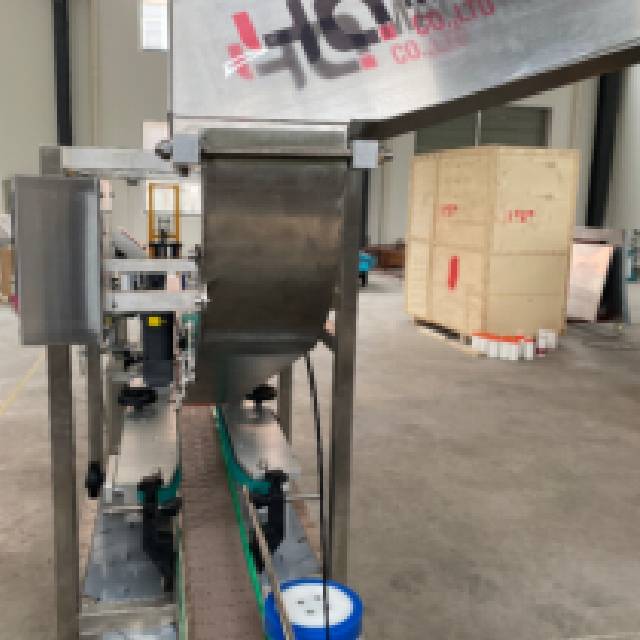

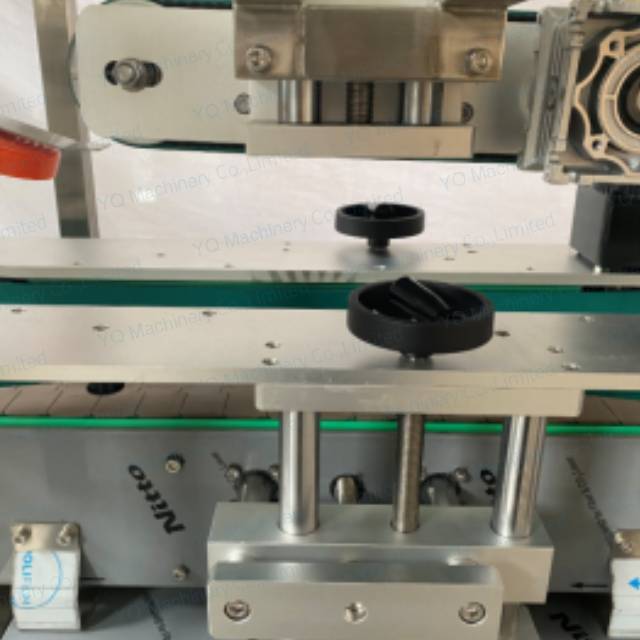

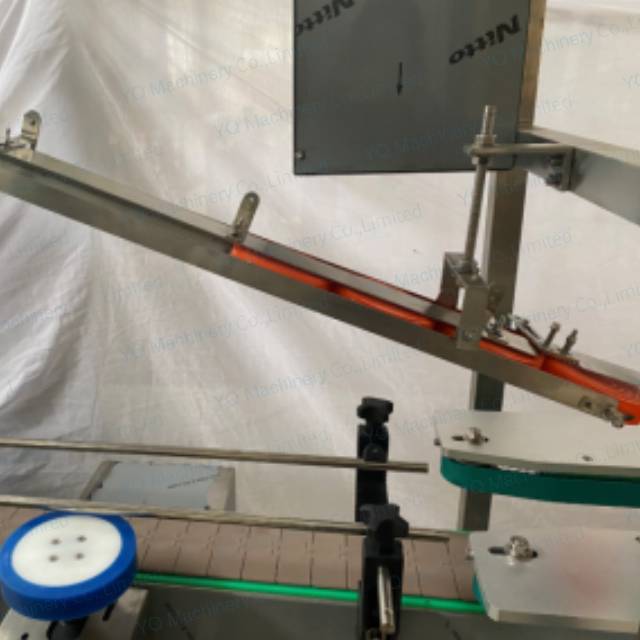

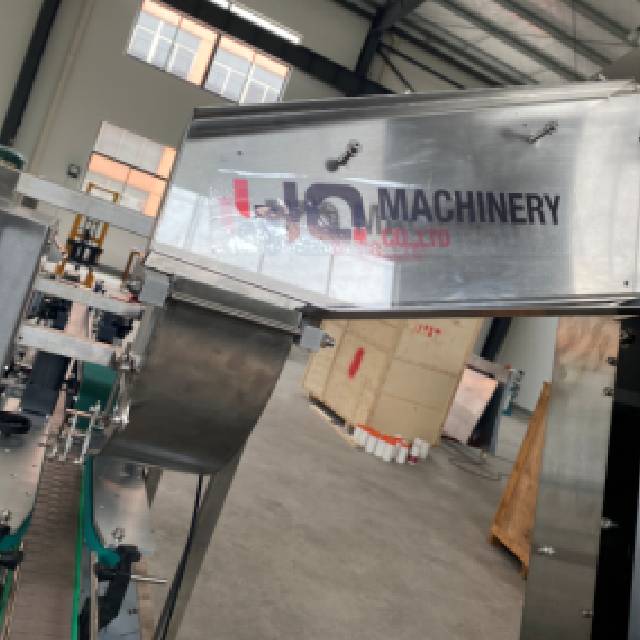

B.Lid Press Machine With Cap Sorting Elevator
Introduction:
The bottle cap pressing machine is a kind of equipment that is placed under the conveyor belt and keeps synchronous operation with the conveyor belt. It gradually tilts downward and realizes the pressing function through the chain plate. It is used for pressing various plastic caps.The lid sorting elevator can place the lid on each container in transit then the slightly angled top conveyor rolls it down and seals it before it comes out from the other end.
Features
1. The lid press machine uses stainless steel chain plates as the conveyor belt, which is reliable in work
2. Using the principle of synchronous chain plate type capping, all kinds of plastic caps can be pressed without any scratches.
3. The equipment body is made of stainless steel and has a beautiful appearance.
Techbical parameters
Maximum production speed | 6000 bottles /h |
Cap diameter | 15 -80mm |
Gas source | 0.6-0.8mpa |
machine size | 2000x800x1600mm |
Weight | 350Kg |
Suitable bottle diameter | 50 - 110mm |
Suitable bottle height | 150-300mm |
Total power | 0.6Kw |
power supply | 110/220v;50/60hz(can be customized) |

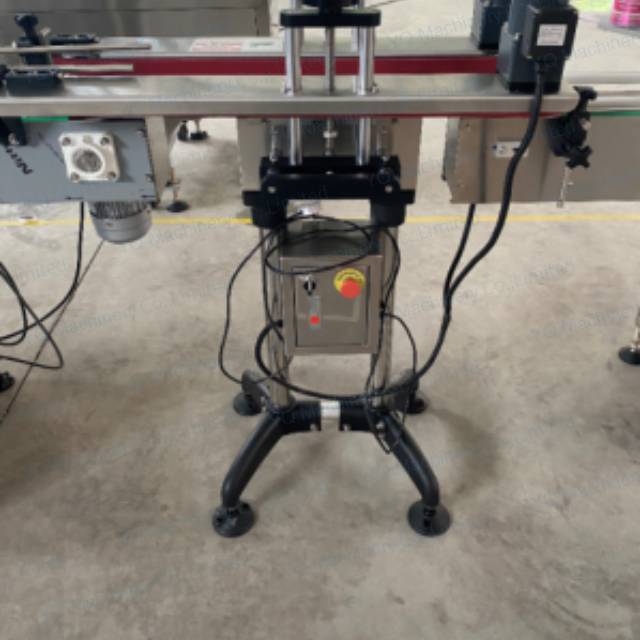

C.Bottomless Conveyor Side Belt Transfer
Introduction:
Bottomless conveyors are mostly dedicated conveying equipment for bottle products. Used in the food industry, cosmetics industry, medical industry and other fields. The whole body is made of stainless steel according to product requirements. The motor adopts a variable frequence, which can adapt to different production conditions and frequently change speed, and save energy.
Advantage:
Side Belt Transfer Conveyor is made of PVC belt, which has good durability and is not easy to wear. This conveyor can maintain the stability of the bottles during the conveying process. Even lighter bottles can be transported efficiently and quickly, and are not easy to dump. It can also increase the coding operation of the product according to the customer's requirements for the equipment.
The bottle gripper conveyor is used for the connection between multiple automatic machine conveyor belts, and the bottles will definitely not fall through this mechanism. Ensure that the speed of the two bottle clamping belts is the same, and at the same time, it can complete the work of coding at the bottom of the bottle. Online coding for wiring saves labor and one process, and is a good helper for production.
D.Sticker Labeling Machine
Introduction:
This bottle labeling machine is made of 304 stainless steel, which makes the overall structure of the label applicator machine more durable. In terms of mechanical performance, the modular and user-friendly design makes it easier to change the style. The man-machine interface control is used on the control circuit, which is easy to learn and understand, and the excellent circuit design makes the labeling speed faster and more steady.Because the labeler is completely developed with the new design concept, many mechanical adjustments are reduced, and the labeling performance is improved. Accuracy and production speed.
Features:
1. Labeling height and angles are adjustable.
2. Driven by servo motor.
3. Can be connected with production line.
4. Conveyor belt and labeling speed are adjustable.
5. Controlled by PLC with touch screen, easy to read and set information.
6. Labeling speed is synchronized with conveyor belt.
7. Advanced sensor detection system makes precise labeling.
8. No repositioning or timing adjustment is necessary when changing bottles size.
9. Labeling counter, easy management.
10. Emergency button for safety.
11. Conveyor belt can be customized.
Option:
Transparent label sensor
Date coder/inkjet printer
Main technical parameters:
Operating direction | Left or Right |
Labeling Accuracy | ±1.0 mm(subject to the roughness of the plane) |
Production(bottle/min) | 10-100(according to the size of bottle and label) |
Label Specifications | adhesive sticker,transparent or opaque |
The application of bottle | Outer diameter 20-100mm Height 35-200mm(can be customized according to your requirement) |
The application of label | Height 20-180mm ; Length 23-300mm(can be customized according to your requirement) |
The inner diameter of label roll | 76mm |
The outer diameter of label roll | 350mm (max) |
The power of motor(w) | 1.5KW |
Voltage | AC220V 50/60HZ Single phase |
Size appearance(mm) | 2000(L) 800(W) 1500(H)mm |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
After-sale service:
1. Instruction for Installation and Debugging
Before delivery, we takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
We also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer, provides the engineer with round-trip tickets, accommodation, vehicle and $100 per day salary.
2. User Training
Before delivery, we will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3. Warranty Period
The warranty period for machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.Mechanical models are standard, make special design according to customer requirements.
