YQC-W50
YQ
Introduction of capper:

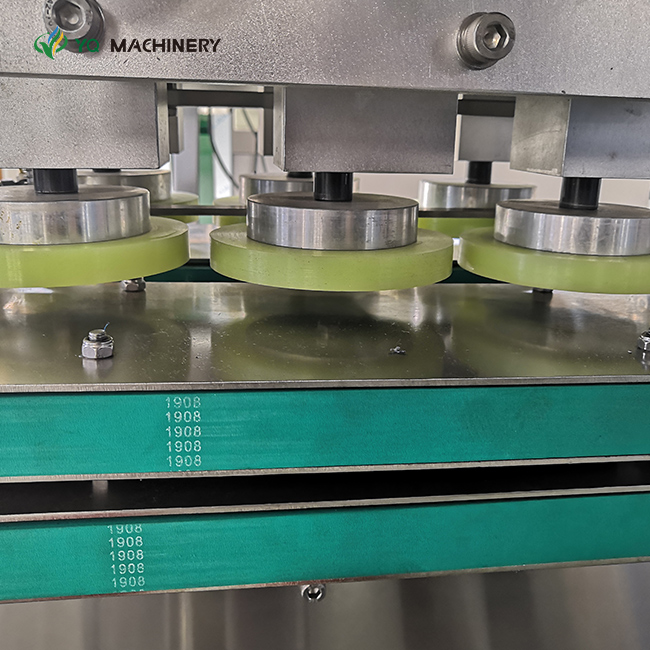

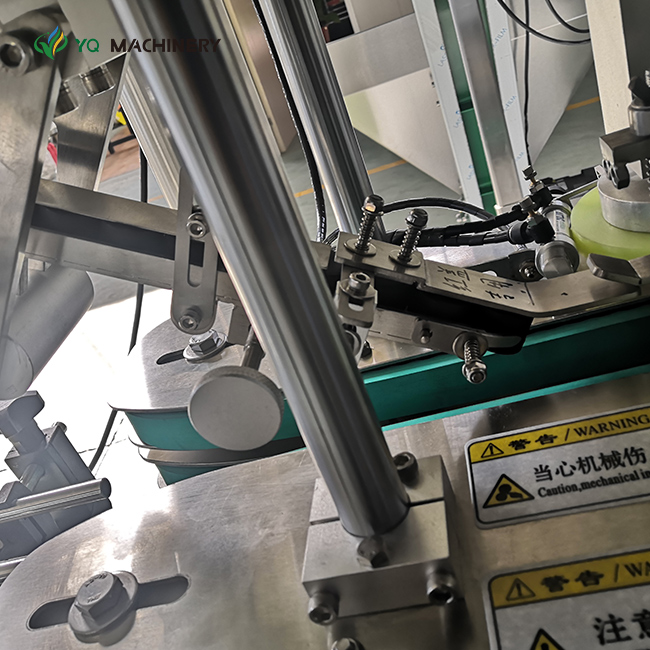

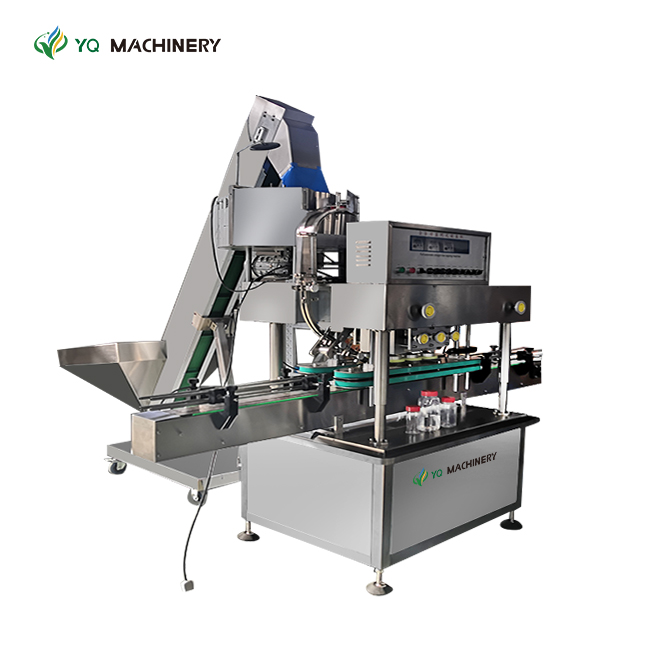

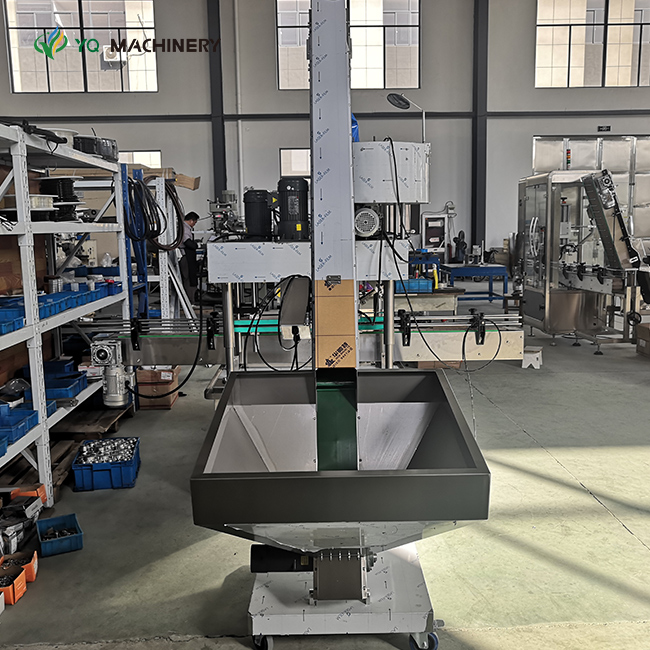

The spindle capping machine includes a cap sorting device,cap track, a cap screwing main machine, a bottle clamping transmission mechanism, and a capping wheel transmission mechanism. The bottle completes the actions of scraping, pressing, and capping during the horizontal movement of the bottle under the action of the clamping belt. It is suitable for the screwing of the round and flat bottle and screw caps of various materials. The structure of the whole cap sealing machine is simple and easy to adjust. There is no need to change accessories when changing the bottle type, just adjust.
Capping Equipment Advantages:
1. Wide versatility: economical and applicable, which can meet the production of screw caps for most bottle types in the industry.
2. The whole machine adopts Schneider's latest low energy consumption inverter, which is safer. 3. Ten years, the industry has sold thousands of classic models, the simpler is better.
4. Forming a synchronous belt and a special capping wheel at one time, using lower consumables.
Technical Parameters of cap sealer
Production capacity | ≤7000 bottles / hour |
Applicable bottle diameter | Φ30-110mm; height 80-300 mm |
Bottle cap specifications | Φ12-50 mm; height 15-40 mm |
Air source pressure | 0.5 ~ 0.7 MPa |
Power source | 220V, 50Hz |
Power | 2.4 kW |
Weight | 550 kg |
Dimensions | 2000 × 1000 × 2100 mm (length × width × height) |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
Introduction of capper:
The spindle capping machine includes a cap sorting device,cap track, a cap screwing main machine, a bottle clamping transmission mechanism, and a capping wheel transmission mechanism. The bottle completes the actions of scraping, pressing, and capping during the horizontal movement of the bottle under the action of the clamping belt. It is suitable for the screwing of the round and flat bottle and screw caps of various materials. The structure of the whole cap sealing machine is simple and easy to adjust. There is no need to change accessories when changing the bottle type, just adjust.
Capping Equipment Advantages:
1. Wide versatility: economical and applicable, which can meet the production of screw caps for most bottle types in the industry.
2. The whole machine adopts Schneider's latest low energy consumption inverter, which is safer. 3. Ten years, the industry has sold thousands of classic models, the simpler is better.
4. Forming a synchronous belt and a special capping wheel at one time, using lower consumables.
Technical Parameters of cap sealer
Production capacity | ≤7000 bottles / hour |
Applicable bottle diameter | Φ30-110mm; height 80-300 mm |
Bottle cap specifications | Φ12-50 mm; height 15-40 mm |
Air source pressure | 0.5 ~ 0.7 MPa |
Power source | 220V, 50Hz |
Power | 2.4 kW |
Weight | 550 kg |
Dimensions | 2000 × 1000 × 2100 mm (length × width × height) |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
