Introduction:

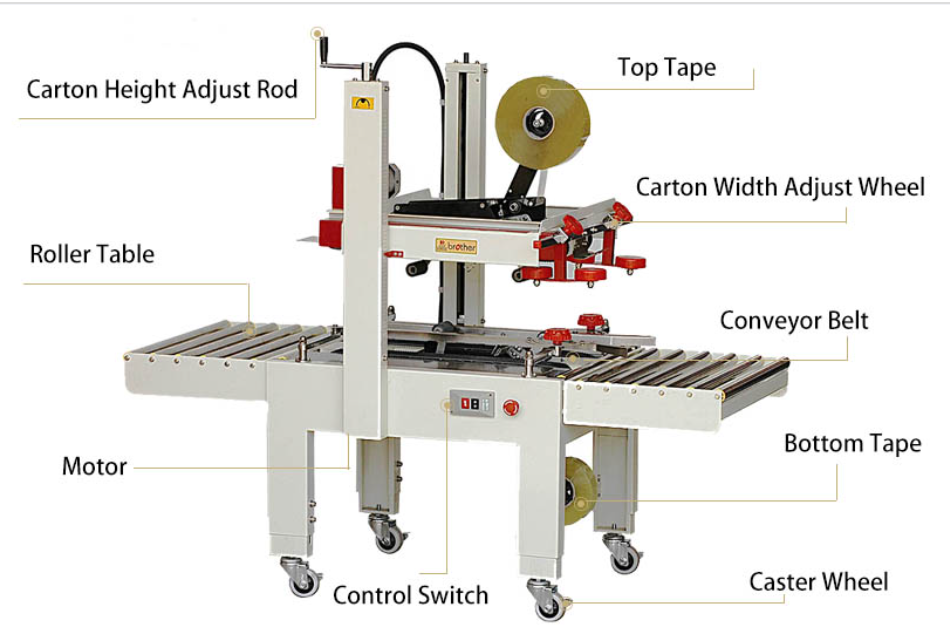

Automatic carton sealer automatically attaches the tape to the top and bottom, no need for manual work. It uses an adhesive tape to seal the carton, not only the sealing effect is beautiful, and the sealing is firm. The use of the automatic packaging line will better reflect the value of this machine. This type of sealing machine is widely used in food, medicine, beverage, tobacco, daily chemical, automotive, cable, electronics and other industries at home and abroad.
Features:
· Increased productivity
· 110/220V, 50/60 Hz, single phase/three phases
· Durable double column construction
· Roller bed tables promote smooth movement
· 2" or 3" tape can be run on same tape head
· Sidebelt drive
· 1 year warranty on parts
Advantage:
A.Top driven adopts handle knob + folding plates smooth + box position wheel, lockbox position wheel and keep folding plates smooth with handle knob, preventing carton from lifting and making the sealing beautiful.
B.Equipped with brand name configuration, fast speed, low cost, sealing smoothly and stably, continuous uninterrupted operation.
C.Manually adjust height and width according to carton size within only 1 minute. There are rulers on the machine, make it convenient to adjust.
D.The roller is made of stainless steel with high abrasion resistance, easy to clean dust and dander, Increasing convey speed, low noise, long-lasting.
Technical parameter
Model | YQCS-10 |
Max Carton size | L∞ *W500*H500MM |
Min carton size | L150*W150*H120MM |
Conveyor speed | 20m/min |
Machine size | L1020*W850*1350MM |
Power | 110/220V 50/60HZ 1 phase |
Machine weight | 130kg |
Tape size | W48MM/60MM/75MM |
About packing
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our service
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
