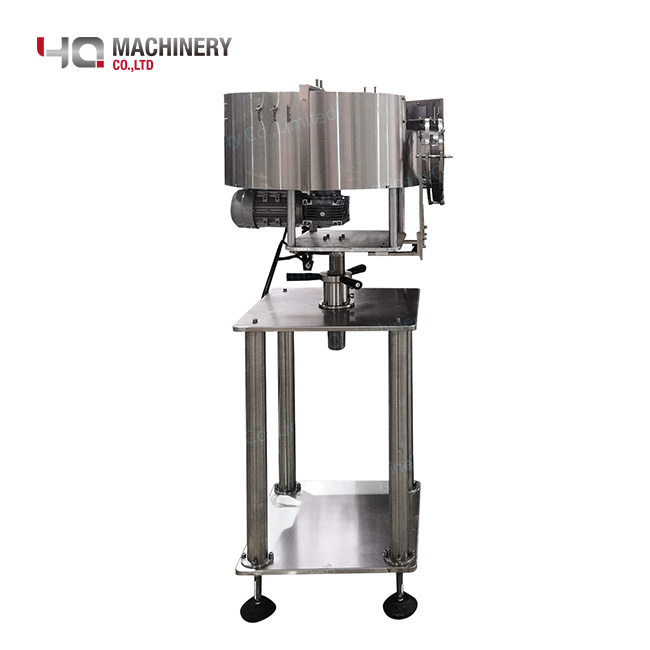

Introduction Of Centrifugal Feeders:
The centrifugal feeder systems can be interfaced and supplied as a complete packaging line with further product transportation via downstream conveyor systems to subsequent packaging operations such as capping, labeling, flow wrapping and cartoning applications.
Advantage Of Rotary Bowl Systems:
Unlike a vibratory bowl feeder, a centrifugal feeder does not use any vibrations or tracks to orient component parts, but an angled, rotating disk driven by electric motors to cast component parts to the outer edge of the bowl rim. Specialized tooling is introduced that orients the component parts prior to exit. Centrifugal feeders are mostly used for those applications with special requirements such as high speed production and gentle handling. Component parts with no tendency to tangle at a high feed rate such as pumps, caps or medical device components are ideal to use the approach of centrifugal feeder technology.
Technical Parameter:
Discharge speed | according to customer requirements |
Discharge status | made according to customer requirements |
Turn | clockwise/counterclockwise |
Top plate diameter | 600mm |
Base diameter | 600mm |
Power | 375W |
Voltage | 220v;single phase;50-60hz(can be customized) |
Vibration frequency | 50-60hz |
Complete configuration | hanging plate, base, controller |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
Introduction Of Centrifugal Feeders:
The centrifugal feeder systems can be interfaced and supplied as a complete packaging line with further product transportation via downstream conveyor systems to subsequent packaging operations such as capping, labeling, flow wrapping and cartoning applications.
Advantage Of Rotary Bowl Systems:
Unlike a vibratory bowl feeder, a centrifugal feeder does not use any vibrations or tracks to orient component parts, but an angled, rotating disk driven by electric motors to cast component parts to the outer edge of the bowl rim. Specialized tooling is introduced that orients the component parts prior to exit. Centrifugal feeders are mostly used for those applications with special requirements such as high speed production and gentle handling. Component parts with no tendency to tangle at a high feed rate such as pumps, caps or medical device components are ideal to use the approach of centrifugal feeder technology.
Technical Parameter:
Discharge speed | according to customer requirements |
Discharge status | made according to customer requirements |
Turn | clockwise/counterclockwise |
Top plate diameter | 600mm |
Base diameter | 600mm |
Power | 375W |
Voltage | 220v;single phase;50-60hz(can be customized) |
Vibration frequency | 50-60hz |
Complete configuration | hanging plate, base, controller |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
