Introduction:

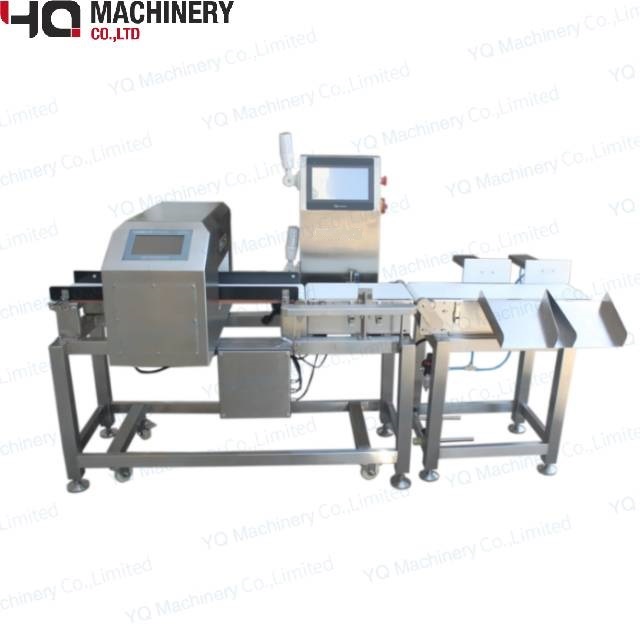

YQ machinery Checkweighers and metal detector 2 in 1 machine specializes in the design and manufacturing of a comprehensive range of online, in production weighing, weight control equipment, and metal detector systems. Checkweigher and metal detector 2 in 1 systems are ideal for companies looking to reduce waste, save money, and increase their production line’s efficiency. As renowned checkweigher and metal detector machine manufacturers, YQ machinery prides themselves on the versatility of their equipment. YQ machinery checkweigher and metal detector machines can be adapted to handle virtually every package, bag, carton, box, and bottle.
Standard checkweigher and metal detector machine models are available for the quickest deliveries in the industry. We can also design and manufacture custom checkweighersand metal detector machine to meet your unique product demands.
Features:
1. Compact design ,space saving and low cost installation
2.Advanced and proper rejection system
3. Human friendly 10'' HMI panel operation
4. Strong anti-vibration and interference design
5. High sensitivity and precision for metal detection and weight checking
Model | YQ-WM110 | YQ-WM210 | YQ-WM300 | YQ-WM400 | YQ-WM500 | YQ-WM600 | ||
Weighing range | 200g | 1000g | 3000g | 15kgs | 40kgs | 50kgs | ||
Weighing accuracy | ±0.05g-±0.1g | ±0.3g-±1g | ±0.5g-±2g | ±2g-±10g | ±5g-±15g | ±8g-±20g | ||
Display resolution | 0.01g | 0.1g | 0.1g | 1g | 1g | 5g | ||
Conveyor speed | 20-60m/min | 30-100m/min | 30-90m/min | 30-70m/min | 20-35m/min | 15-25m/min | ||
Sorting speed | 180pieces/min | 160pieces/min | 80pieces/min | 70pieces/min | 30pieces/min | 30pieces/min | ||
Belt height | 700mm±30mm | 700mm±30mm | 700mm±30mm | 700mm±30mm | 700mm±30mm | 700mm±30mm | ||
Infeed part | 250(L)*120(W)mm | 400(L)*210(W)mm | 450(L)*300(W)mm | 620(L)*400(W)mm | - | - | ||
Weighing part | 250(L)*120(W)mm | 400(L)*210(W)mm | 450(L)*300(W)mm | 620(L)*400(W)mm | 900(L)*500(W)mm | 1200(L)*600(W)mm | ||
Rejection part | 400(L)*120(W)mm | 700(L)*210(W)mm | 900(L)*300(W)mm | 900(L)*400(W)mm | 900(L)*500(W)mm | 935(L)*600(W)mm | ||
Detected Height(mm) | 80 | 100 | 150 | 200 | 250 | 300 | 350 | |
Belt Width(mm) | 250 | 250 | 400 | 400 | 400 | 400 | 400 | |
Belt length | 1400mm(Or customized) | |||||||
Detector sensitivity(mm) | Fe 0.6 | Fe 0.8 | Fe 1.0 | Fe 1.5 | Fe 2.0 | Fe 2.5 | Fe 3.0 | |
SUS 1.0 | SUS 2.0 | SUS 2.5 | SUS 2.5 | SUS 3.0 | SUS 3.5 | SUS 4.0 | ||
N-Fe 1.0 | N-Fe 1.5 | N-Fe 2.0 | N-Fe 2.0 | N-Fe 2.5 | N-Fe 3.0 | N-Fe 3.5 | ||
Load ability | 20kgs(Or customized 20-50kgs) | |||||||
Warning method | Sound and light alarm ; The belt can be stopped, continue run or belt return | |||||||
Reject Ways | when has auto-reject system ,belt continue and rejecting the goods | |||||||
Application | Non-package ,plastic package ,paper bag or box (non-metallic) product | |||||||
Work Environment | Temperature -10℃-40℃ ,relative humility 30-90% |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
After-sale service:
1. Instruction for Installation and Debugging
Before delivery, we takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
We also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer, provides the engineer with round-trip tickets, accommodation, vehicle and $100 per day salary.
2. User Training
Before delivery, we will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3. Warranty Period
The warranty period for machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.Mechanical models are standard, make special design according to customer requirements.
