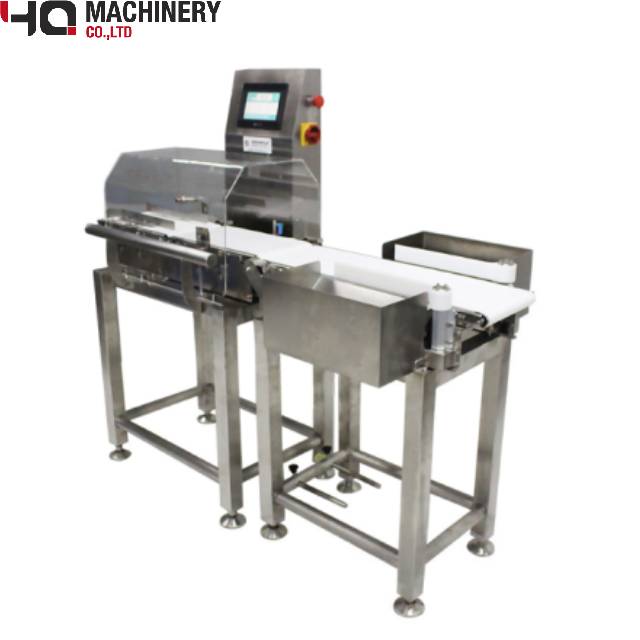

YQCW-210
YQ
Application:
Checkweigher is suitable for testing the weight of a single item whether is qualified or not. With the brand name sensor, advanced information processing software of dynamic weight and a variety of software, electronic and machine options, this series of check weigher can meet the requirement of on-line weighing in such industries as pharmacy, daily chemical, food and battery.

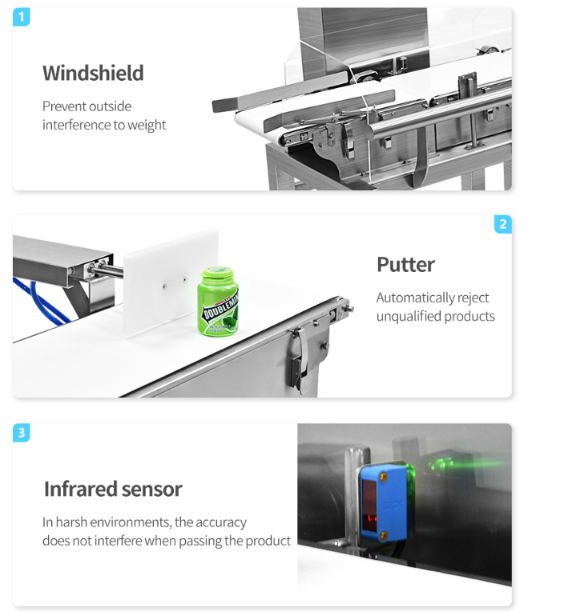

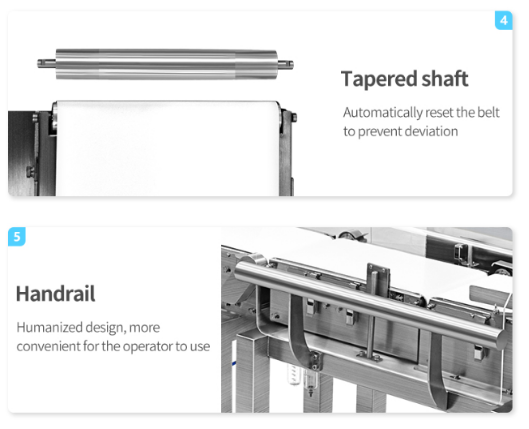

Features:
1. Large size color LCD touch screen interface, the operation is simple and direct display.
2. Enhanced 304 stainless steel frame, GMP standards.
3. Simple mechanical structure, can quickly remove cleaning maintenance.
4. Can store 200 kinds of product parameters, the convenient user use.
5. Automatic zero tracking system, guarantee the stability of detection.
6. Built-in temperature and noise compensation system, ensure the data is reliable.
7. The dynamic weight compensation technology, ensure the data to be more effective
8. Parameters set password protection, only management operation.
9. Strong self diagnosis function, effectively improve the efficiency of the operator to deal with failure.
Technical parameter
Model | YQCW-210 |
Power Supply | AC220V±10% 50Hz(60Hz) |
Rated Power | 0.15KW |
Checking Range | ≤1000g |
Accuracy | ±0.3g~±1g |
Minimum Scale | 0.1g |
Belt Speed | 20~100m/min |
Suggested Product Dimension | ≤280mm L * 200mm W |
Weighing Belt Dimension | 400mm L*210mm W |
Machine Dimension | 1522mm(L)*575mm(W)*1222mm(H) |
Rejector | Swing arm/Pusher |
Control Module | High Speed A/D Sampling Module |
Product Preset | 99 |
Conveyor Direction | From Left to Right (Right to left optional) |
Compressed Air | 0.6-1Mpa |
Nozzle Connector Type | Φ8mm |
Operating Requirement | Temperature: 0℃~40℃,Humidity:30%~95% |
Machine Body Construction | SUS304 Full Stainless Steel |
How to use weight checker
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
