YQM-C
YQ

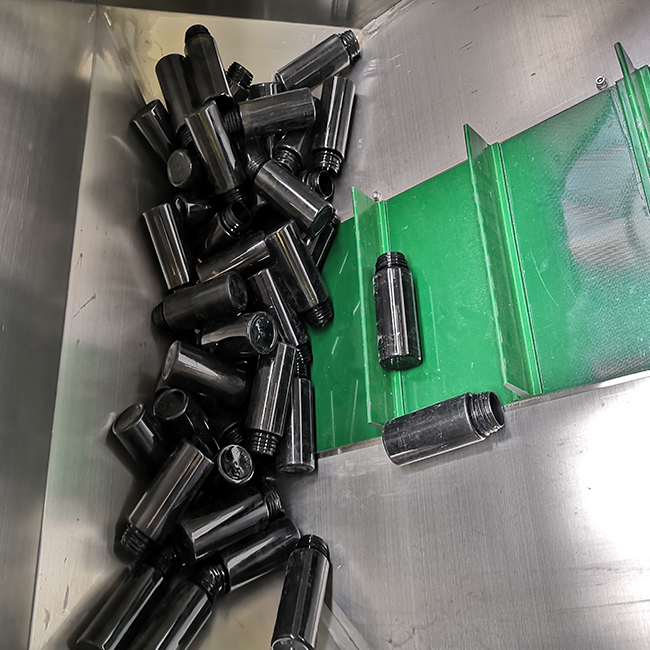

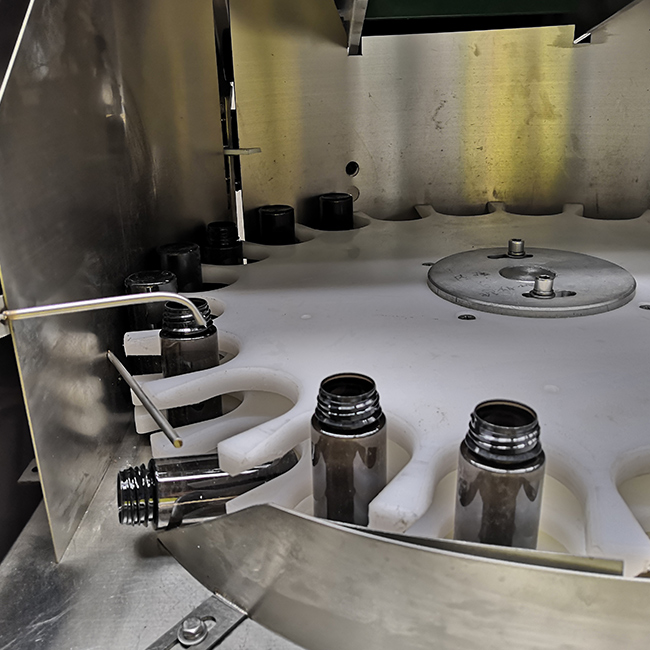

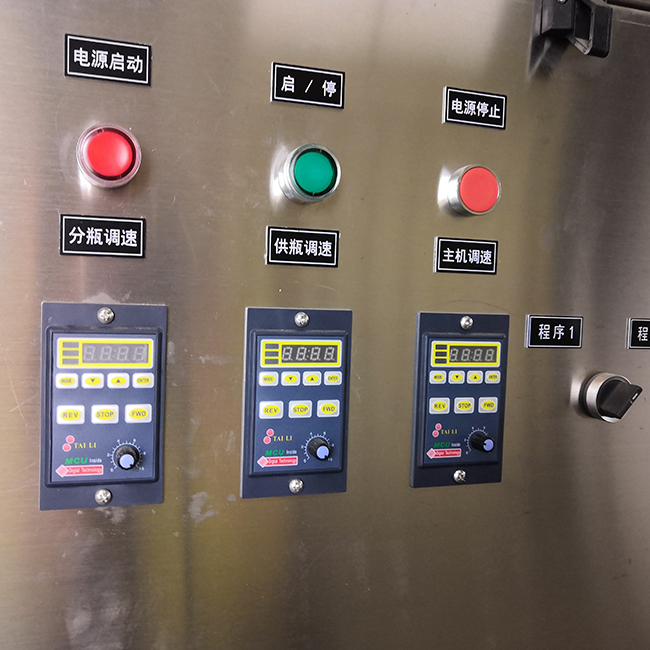

Bottle unscramble machine for chubby gorilla
Application:
Automatic bottle unscrambler is suitable for the automatic sorting and arrangement of various plastic containers (round bottles, square bottles), mainly used in the pharmaceutical industry, health products industry, food industry and related industries. The bottle arranging machine only needs to pour the bottles into the hopper, and the bottles can be sent to the next process in a certain order.
Working principle:
The bottle unscrambler is an electromechanical integrated device with convenient operation, simple maintenance and reliable operation. This plastic bottle sorting machine is equipped with a bottle quantitative control and detection and overload protection device. Encounter is less than 70db. This pet bottle unsrambler is made of 304 high quality stainless steel. Use mechanical flip bottle structure to correct bottle direction and achieve consistent bottle mouth.This bottle sorter is also equipped with a bottle storage device, which greatly improves the production efficiency. It also have 3 stepless speed regulation motors. One of them is used to adjust the speed of star wheel. The faster the star wheel is, the faster the bottle coming out. And at the exit of this rotary bottle unscrambler machine is with a sensor to detect whether there is a full bottle on the conveyor belt. If there is a enough bottle on conveyor, the motor of star wheel will stop automatically. Automatically power on if there is lack of bottles
Technical Parameters:
Production capacity: 30-120 bottles / min
Air source: 0.5-0.7Mpa
Power source: 220V / 50Hz
Power: 0.55 kw
Dimensions: 1400 * 800 * 1000mm

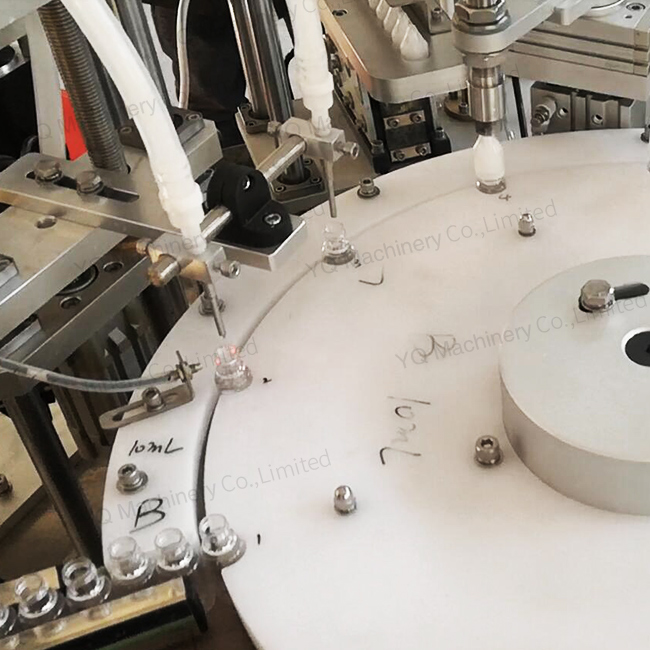

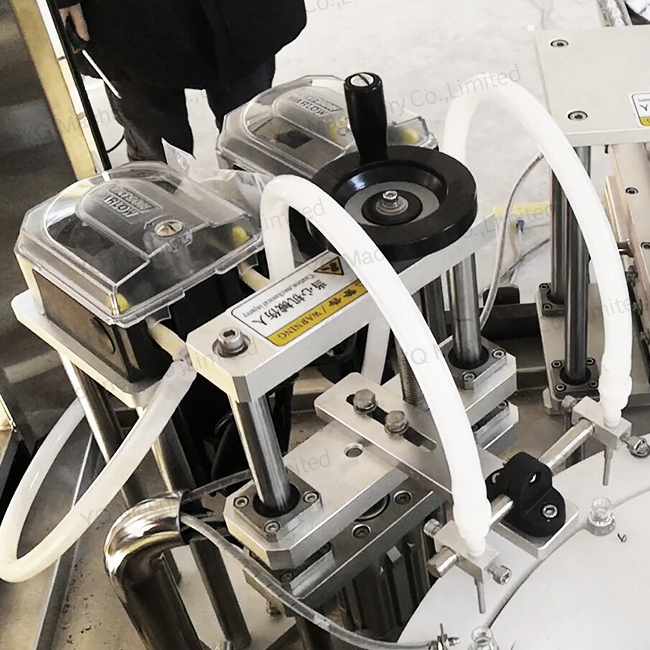

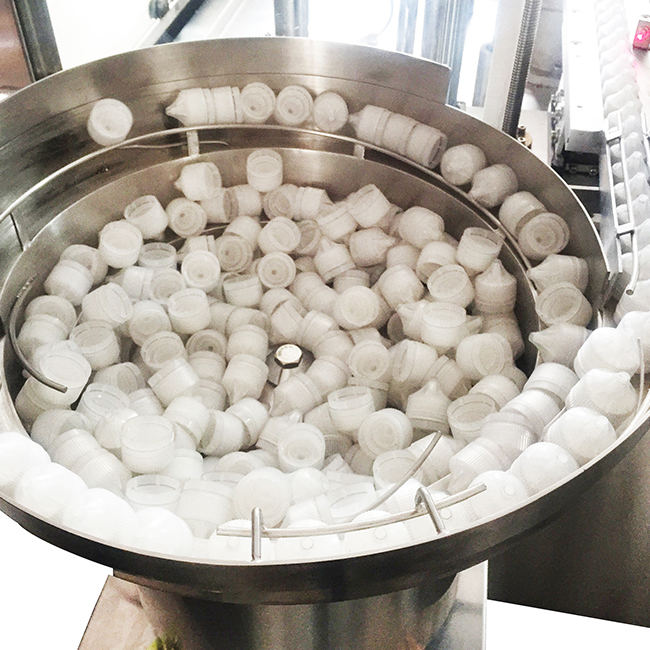

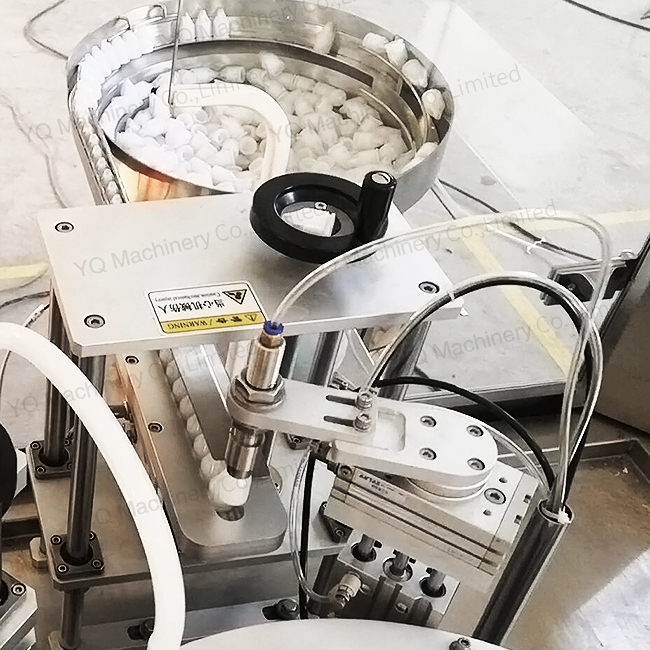

Vial filling and capping machine with peristaltic pump metering system
Application:
YQ offer automatic peristaltic pump filling and capping machine which is a professional filling system developed by our company based on the introduction and absorption of foreign advanced technology. This fully automatic bottle filling and capping machine adopts disc positioning filling, manipulator-type cap screwing, which is stable and reliable with an accuracy of over 99%. This filler and capper machine uses high-precision cam indexing stations, which has high accuracy, reliable operation and long service life long. The indexer has a simple structure and requires no maintenance for long-term use.
This type of vial filling machine is suitable for the filling and capping of various small-dose liquids, such as injections and medicinal liquids. Widely used in food, pharmaceutical, chemical industry and scientific research fields. This liquid dosing machine is filled with advanced Watson Marlow peristaltic pump or 316L stainless steel piston pump, with high filling accuracy. The whole machine includes transmission parts, filling parts, capping getting parts, capping parts, etc. The whole machine has a compact structure, reasonable design and smooth operation ,long lasting. This machine can not only stand alone production, but also form a linked production line with bottle unscrambler machine,bottle labeling machine,box cartooning machine. Fully meet GMP requirements. This small bottle filling machine can upgrade the electrical configuration according to customer requirements.
Performance and characteristics of vial filling and capping machine
1.Man-machine interface setting, intuitive and convenient operation, PLC control, accurate loading.
2. Variable frequency control, arbitrary adjustment of production speed, automatic counting.
3. Automatic stop function, no bottle, no filling, no inner stopper.
4. Disc positioning filling, stable and reliable.
5. High-precision cam indexer control, accurate positioning.
6. Made of SUS304 and 316L stainless steel, fully comply with GMP requirements.
Technical Parameters of E juice bottle filling machine:
Filling heads | 2 |
Filling range | 10-100ml (according to different products, filling accuracy is different) |
Filling speed | 20-30 bottles /min (filling speed varies according to different material properties) |
Measurement accuracy | ± 1% |
Power, voltage | 1.2kw, 220v |
Working pressure | 0.4-0.6mpa |
Air consumption | 6 ~ 7m⊃3; / min |
Machine size | 2000 * 900 * 1500mm |
Net weight of machine | 500kg |

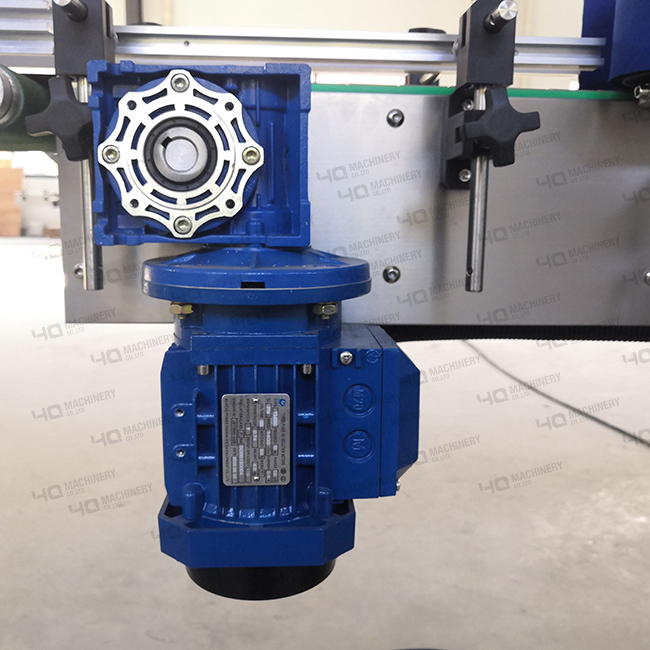

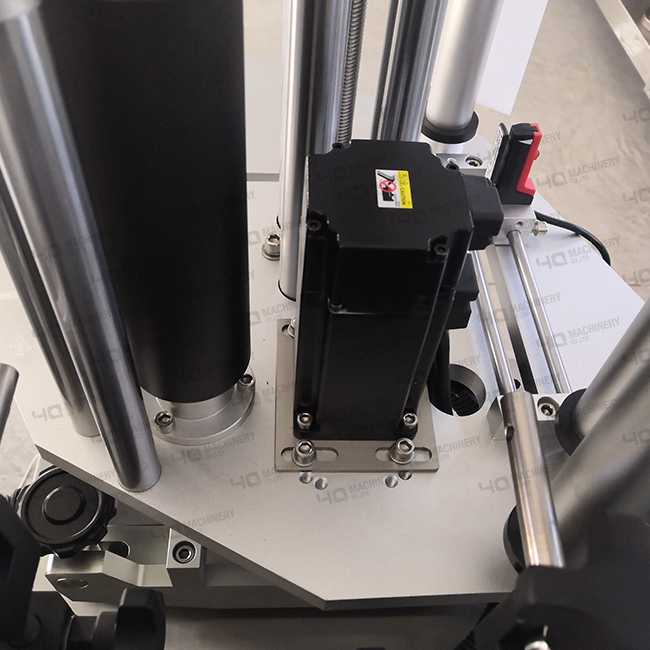

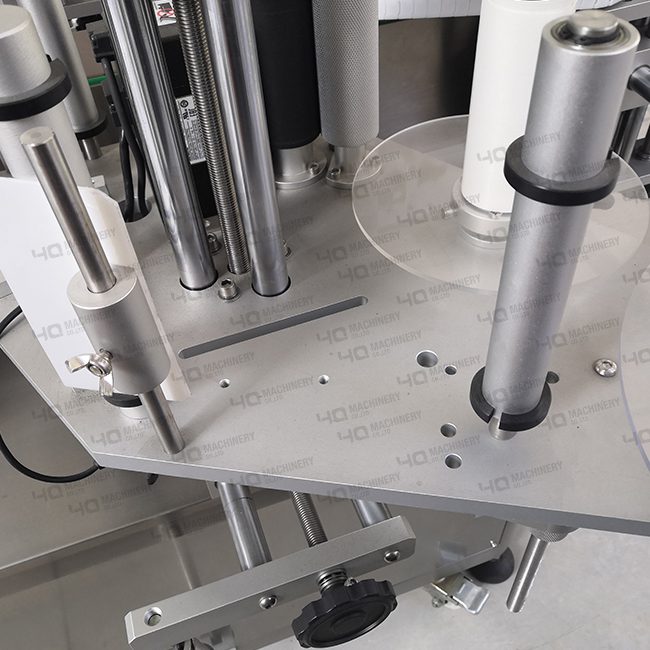

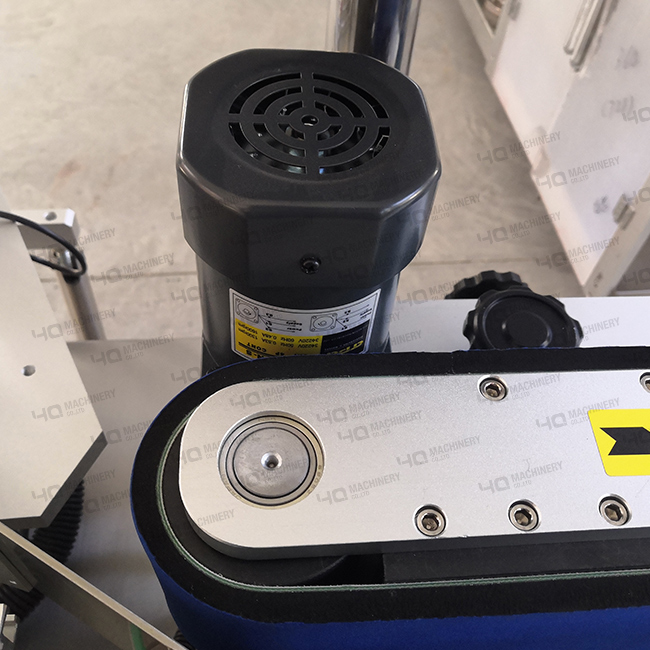

Labeling machine
Application:
This automatic round bottle labeling machine can be use to label various regular cylindrical or conical products. It is widely used in cosmetics, food, medicine, daily chemical, toys, hardware, plastic and other industries. This sticker labeling machine can label circle/semi circle of round container. Suitable for self-adhesive labels, self-adhesive films, electronic supervision codes, bar codes, two-dimensional code labels, transparent labels, etc. High equipment stability, good labeling effect, no bubbles, no wrinkles, labeling accuracy ± 1mm.
Options:
a. date coding machine(injet printer,ribbon coder,laser printer)
b. clear/transparent label(adopt clear sensor to detect)
c. bottle feeding table and pack off table
d. filling and capping machine
Feature
◆ Easy adjustment, equipped with front, back, left and up, up and down, plane tilt, vertical tilt adjustment seat, no dead angle for different bottle shapes, easy and fast adjustment
◆ Automatic bottle sorting, using the bottle sorting mechanism, effectively eliminating the bottle smoothness caused by the bottle error and improving the stability;
◆Touch screen control, human-machine interaction interface with operation teaching function, parameter modification is intuitive and clear, and various functions are easy to switch;
◆ Intelligent control, automatic photoelectric tracking, with functions of no labeling, automatic calibration without label and automatic label detection function, avoid wasting labels and missing labels;
◆Sturdy and sanitary, mainly made of stainless steel and high-grade aluminum alloy, with solid quality and meeting GMP production requirements;
◆With automatic shutdown function, production counting function, power saving function (when no production is in the set time, the device automatically switches to the power saving standby state), production number setting prompt function, parameter setting protection function (parameter setting is divided into rights management) To facilitate production management.
Technical Parameters:
Operating direction | Left or Right |
Labeling Accuracy | ±1.0 mm(subject to the roughness of the plane) |
Production(bottle/min) | 10-120(according to the size of bottle and label) |
Labeling Speed(m/min) | ≤40 |
Label Specifications | adhesive sticker,transparent or opaque |
The application of bottle | Outer diameter 20-100mm Height 35-200mm(can be customized according to your requirement) |
The application of label | Height 20-180mm ; Length 23-300mm(can be customized according to your requirement) |
The inner diameter of label roll | 76mm |
The outer diameter of label roll | 350mm (max) |
The power of motor(w) | 550W |
Voltage | AC220V 50/60HZ Single phase |
Size appearance(mm) | 2200(L) 700(W) 1270(H)mm |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
