Views: 586 Author: TRACY Publish Time: 2017-04-07 Origin: YQ MACHINERY CO.,LIMITED
We supply a complete range of Labeler Machine:Front and Back labeling machine, Bottom labeling machine, and Top Sticker Labelling machine.These labeling systems are suitable for any type of flat container round container and corrugated containers. The label machines use the latest technologies so as to achieve the highest speed and accuracy.
One of our customer in America placed an order for this double sided labeler.It is used to label engine oil bottles.
Below is video for your reference.It show how to adjust this bottle labeller.
Main technical parameters:
Operating direction Right/Left
Production(bottle/min) 30-160(subject to the size of objects and labels)
Conveyor speed(meter/min) ≤40
Labeling accuracy ±1.0mm
The application label adhesive sticker , transparent or opaque label
The inner diameter of label roll 76mm
The outer diameter of label roll 350mm(max)
The application size of label
Width 15-180mm, length15-300mm(can be customized)
The application size of bottle can customized as label objects
Voltage AC 110V/220V 50/60HZ
Machine Size(mm) 2400(L) 1350(W) 1500(H)mm

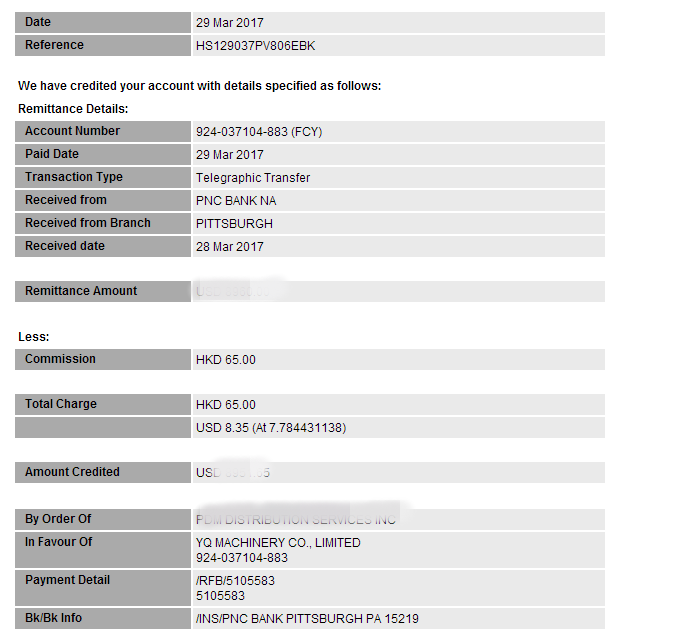

Bank receipt for this two sides labeling machine:
Double sided labeling machine applies to alcohol, medicine, beverages, chemicals, pesticides and other self-adhesive labeling square/flat/round bottles. Host design labeling machines using imported and domestic advanced technology, and to improve and perfect solution for general labeling of domestic instability, optical fiber by computer control, synchronization track, the standard by a servo motor control, automatic detection size of objects and labels are affixed, and automatically controlled by microcomputer mode, large LCD touch panel, display and memory devices containing dozens of groups, is modern and advanced equipment, electric mechanical integration, simple, accurate labeling, reliable performance, power , no noise. Sticker labeling machine is easy to clean, not moldy, after labeling beautiful, strong, will not fall off on their own, production efficiency.
The machine was sent to shanghai port and waiting for shipment:
