Corrosives Bottling Equipment
Introduction of liquid filling machine
Fully automatic inline anti-corrosive filling machine is simple design, convenient operation, stable and reliable. The whole bottling machinery is made of non-metallic PP materials, especially suitable for the filling of super strong corrosion, which can meet the filling requirements of containers of various shapes.
Performance advantages of corrosives bottling equipment:
1.Control system—Adopt well-known PLC control system, random fine adjustment of filling dose.
2.Operation interface—man-machine operation interface is simple, safe and reliable.
3.Function improvement—the material has anti-drip device, and also have diving function according to the material characteristics. (optional)
4.Electrical components—all adopt internationally renowned brands to ensure the safety, reliability and high accuracy;
5.Function expansion—special requirements can be customized according to customer requirements, such as: material sealing, heating, sterilization, etc.
6.Counting detection—real-time counting, intuitively reflecting the output.
7.Filling test—no bottle no filling
8.Maintenance situation—This filling equipment complies with GMP requirements and can be easily disassembled, cleaned and maintained.
9.Change specifications—when changing the filling specifications, only simple adjustments are needed to be done easily.
10.Environmental protection configuration—equipped with an environmental protection frame to make the filler machine's operating environment more clean and hygienic.
Main performance and structure features:
The whole machine adopts anticorrosive PP material.

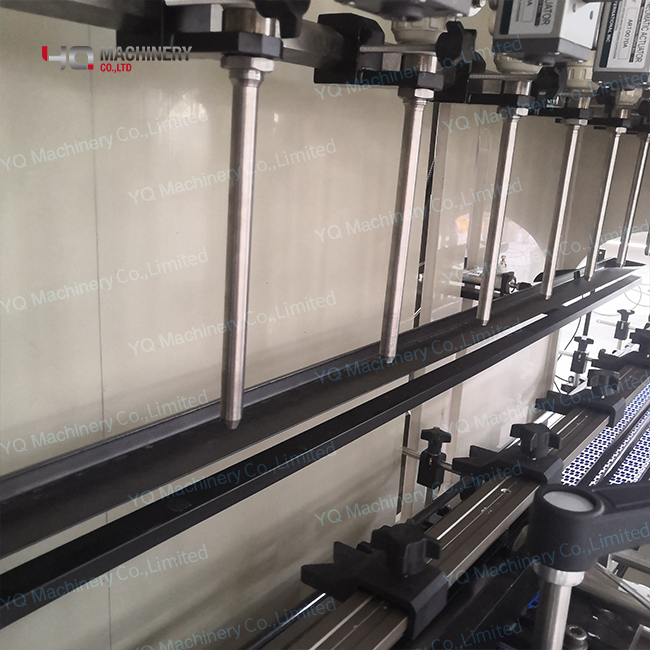

The feeding pipe is made of titanium alloy with high strength and corrosion resistance.

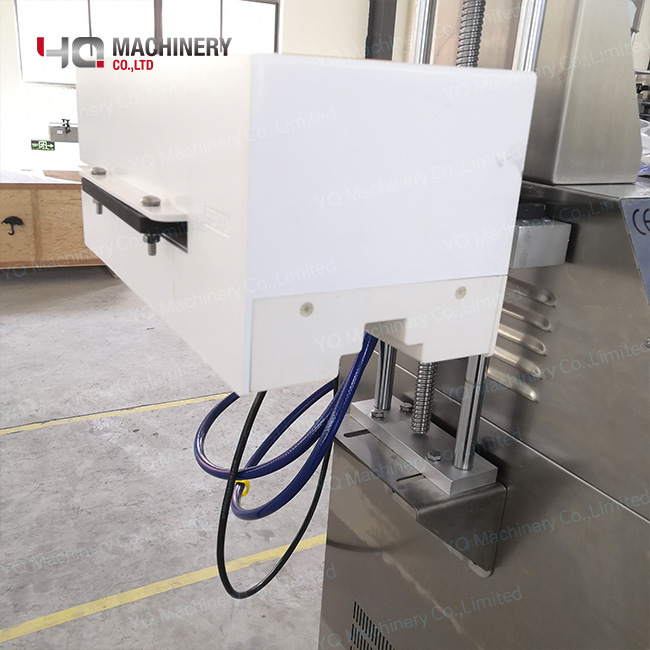

Aviation pipeline plug, waterproof, electricity-proof and dust-proof, safe and reliable.

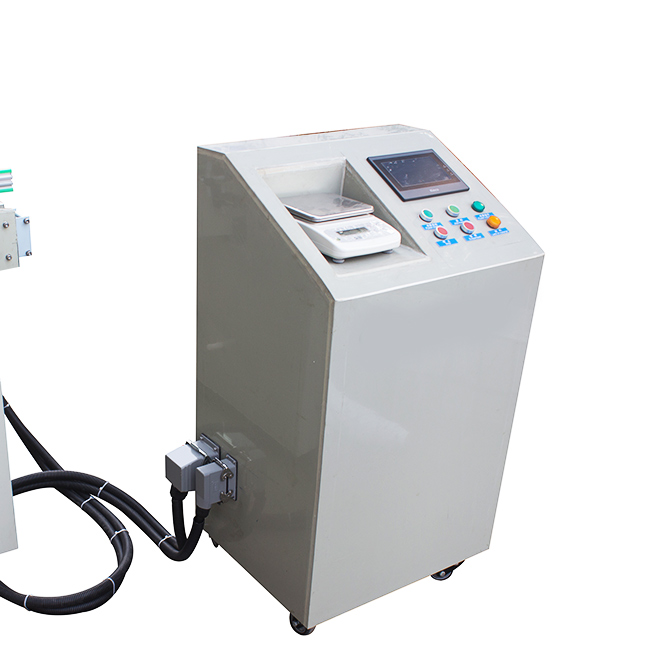

Independent anti-corrosive appliance control cabinet, safe and reliable.
Technical Parameters:
Type | Heads | Suitable bottles | Capacity (bottle/hour) | Precise | Size(mm) | Power (kW) | Power source | Air source |
---|---|---|---|---|---|---|---|---|
YQF-C20D | 20 | bottle: height:80-280mm diameter:Φ40-100mm pail: length:80-120mm width:40-80mm height:80-280mm | 200ml:≤8000 | ≤1000ml: ±2ml 100-500ml: ±1ml ≤100ml:≤1ml | 2400*1100*2200 | 1.5Kw | 220/380V 50,60HZ | 0.6MPa |
YQF-C16D | 16 | 200ml:≤6000 | 2000*1100*2200 | 1.5Kw | ||||
YQF-C12D | 12 | 200ml:≤5000 | 2000*1100*2200 | 1.0Kw | ||||
YQF-C8D | 8 | 200ml:≤3000 | 1800*1100*2200 | 1.0Kw | ||||
YQF-C6D | 6 | 200ml:≤2000 | 1600*1100*2200 | 1.0Kw |

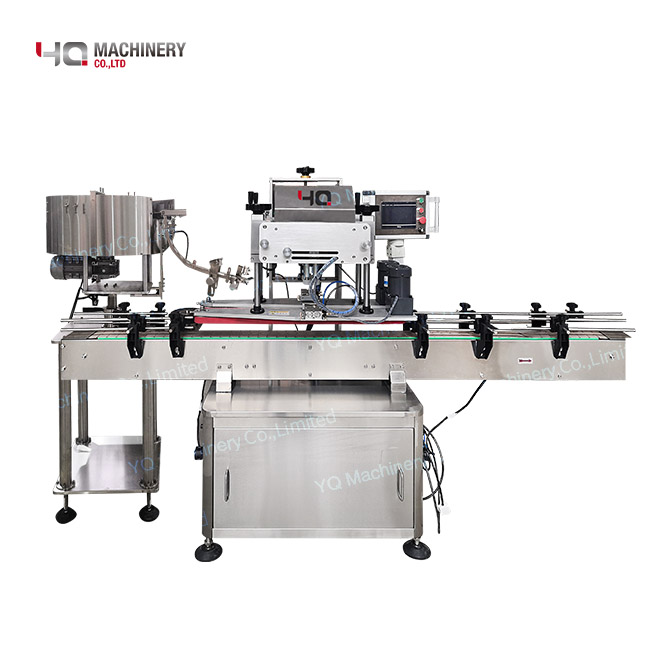

Cap Tightening Machine
Introduction of sprayer capper:
The automatic capping equipment is designed with reference to the advanced international models, with high capping speed, high pass rate and easy operation. Applicable to different bottle and shaped screw caps in food, pharmaceutical, daily chemical, pesticide, cosmetics and other industries. The bottle cap closure machine has a high degree of automation, good stability and easy adjustment. No spare parts are required when changing the bottle shape or cap.
Principle of pump capping machine:
1.Electrically controlled movement, strong stability;
2.Equipped with positioning device, standard screw cap, easy to operate;
3.Wide range of cap can be used such as mist spray cap,trigger pump head, flip top cap and so on.
4.The speed of lid sealing is adjustable, and the tightness can be adjusted according to different bottle caps.
Features of cap tightening machine:
1.Stainless steel material frame and never rust
2. The bottle screwing machine has good compatibility and can be used for various bottle caps. And the operation is simple.
3. Excellent flexibility, can be adjusted according to the height of the bottle and the size of cap, and the elasticity can be adjusted according to customer requirements.

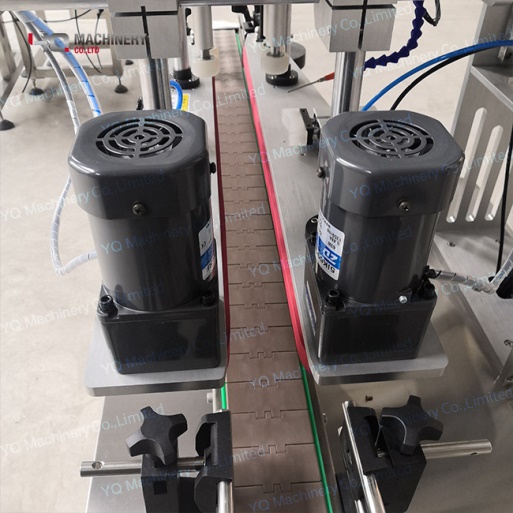

4. The rubbing cap wheel is made of wear-resistant silicone, which does not hurt the bottle cap.
5. The duckbill cap (pump head, spray head, etc.) is more advantageous, and the direction of the mouth head is uniform.
6. Equipped with lid pressing function(option)
7, can be used in the filling production line.
Technical parameter of cap screwing machine:
Model | YQC-4 |
Power supply voltage (V / Hz) | AC 220/50 110/60 (can be customized) |
Power (W) | 1500 |
Sealing height (mm) | 38-300 (customizable) |
Adapt to cover diameter (mm) | 15-17 (can be customized) |
Adapt to bottle diameter (mm) | 35-140 (can be customized) |
Working pressure (mpa) | 0.3-0.5 |
Output (bottle / min) | 30-50 |
Dimensions (L × W × H) (mm) | 2000X800X1600 |
Net weight (kg) | 250 |
Pressure Sensitive Label Machine
Basic use of two side labeling machine:
Applicable to single side or double side labeling of round, square, flat bottles and other similar products in medicine, food, daily chemical and other light industries. One machine is versatile, suitable for square bottles, flat bottles and round bottles, which can be used in a single machine or in line.
Production introduction of pressure sensitive label applicator:
1.Advanced man-machine interface system, simple and intuitive operation, complete functions, and rich online help functions
2.The machine structure is simple and compact, easy to operate and maintain
3.Adopt well-known brand servo drive, stable and reliable delivery speed
4.One machine can complete three types (round bottles, flat bottles, square bottles) of various specifications of automatic side labeling
5.Double side chain correction device to ensure the alignment of materials
6.Special elastic top pressure equipment to ensure the stability of materials
Working principle
After the bottle separation mechanism separates the product, the sensor detects the product passing, and sends a signal back to the control system, which controls the motor to send the label at the appropriate position and attach it to the product to be labeled.
Operation process: put the product (can be connected to the assembly line) —> product transportation (automatically realized by the equipment) —> product separation—> product detection—> labeling—> collect the labeled products.
Labeling Equipment advantages:
Intelligent control
1.The whole machine adopts mature PLC control system to make the whole machine run stably and at high speed
2.General-purpose bottle-separating device, no need to change accessories for any bottle shape with any diameter, quick positioning adjustment
3.The operating system adopts touch screen control, easy to operate, practical and high efficiency
4.Double side chain correction device to ensure the alignment of materials
5.Special elastic top pressure equipment to ensure the stability of materials
6.The labeling speed, conveying speed, and bottle splitting speed can be adjusted steplessly, and can be adjusted as needed
Scope of application
◆ Labeling of round, oval, square and flat bottles of various sizes
◆ Special labeling device, the label is more firmly attached
◆ The front and rear sections can be optionally connected to the assembly line, and can also be equipped with a receiving turntable to facilitate the collection, sorting and packaging of finished products
Technical parameters
Power supply | AC 220V; 50Hz(can be customized) |
Power | 2.5 kW |
Labeling speed | 30-80 bottle/min |
Inner diameter of paper roll | 75mm |
Max outer diameter of paper roll | 350mm |
Standard label height | 0 ~ 130mm |
Maximum label height | 200mm |
Weight | 750 Kg |
Machine dimension | ( L × W × H ) 2600mm x 1200mm x 1600mm |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
