YQL-C
YQ
Application for automatic labeler machine:
a. Applicable labels: self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, etc.
b. Applicable products: Products that require labels or films to be attached to the circumferential surface.
c. Application industry: widely used in food, medicine, cosmetics, daily chemical, electronics, hardware, plastic and other industries.
d. Application examples: PET round bottle labeling, plastic bottle labeling, canned red wine food, etc.
Introduction of label applicators machine:

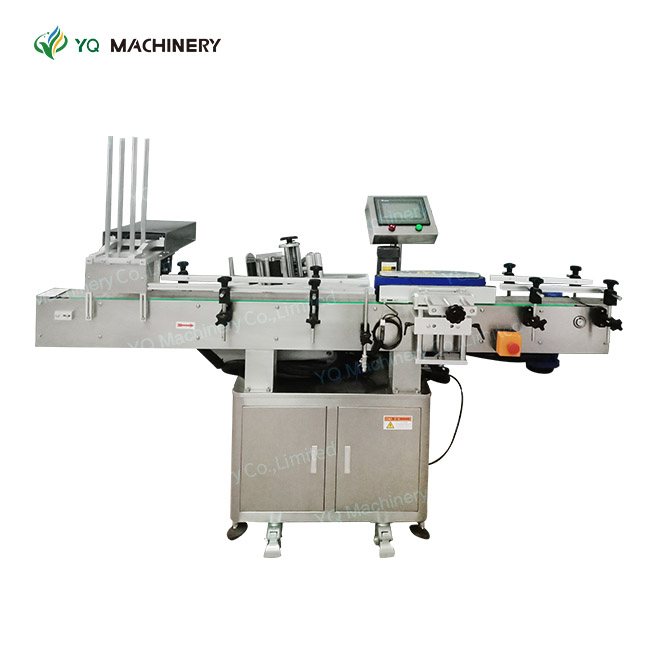

Automatic cup labeling machine adopts self-adhesive roll labeling paper, equipped with automatic cup feeding, completes the process of cup placing, labeling at one time, and can also be equipped with a printer to complete label printing synchronously. This label machine uses computer optical fiber Control, synchronous tracking, and labeling are controlled by a servo motor, and also ensures that the speed of labeling is synchronized with the speed of cups. Adhesive labeler has the advantages of cleanliness, no mold, beautifuland has high production efficiency.
Operation control system for cup labeling machine
Multifunctional touch-type human-machine operation interface, production counting, parameter adjustment and other visual monitoring, with rich help functions and Fault display function; automatic detection of label length and other functions.
Features of cup labeling equipment:
1. The overall material of the equipment is stainless steel and aluminum alloy, the mechanism design is stable and easy to operate, and the layout is beautiful;
2. The use of world-renowned electrical components, stable quality, transparent labels do not blister, self-adhesive labels have no wrinkles;

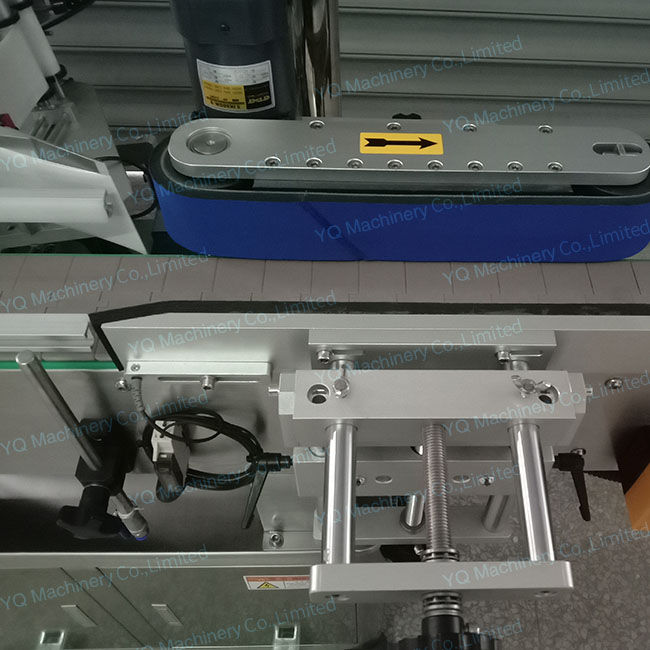

3. The labeling mechanism uses detachable plastic tape or industrial synchronous belt to make the label attachment more reliable;
5. Stand-alone or online operation.
Optional for sticker label applicator:
1. Flexible configuration with optional printer or printer, etc., real-time printing of production information on products or labels.
2. Special sensors for transparent or opaque labels can be selected.
3. The back end can be equipped with a pack off turntable.
4. Bar code detection, presence or absence of label detection, alarm function for remaining labels.
Main technical parameters:
Operating direction | Left or Right |
Labeling Accuracy | ±1.0 mm(subject to the roughness of the plane) |
Production(bottle/min) | 10-100(according to the size of bottle and label) |
Labeling Speed(m/min) | ≤40 |
Label Specifications | adhesive sticker,transparent or opaque |
The application of bottle | Outer diameter 20-100mm Height 35-200mm(can be customized according to your requirement) |
The application of label | Height 20-180mm ; Length 23-300mm(can be customized according to your requirement) |
The inner diameter of label roll | 76mm |
The outer diameter of label roll | 350mm (max) |
The power of motor(w) | 550W |
Voltage | AC220V 50/60HZ Single phase |
Size appearance(mm) | 2200(L) 700(W) 1270(H)mm |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
After-sale service:
1. Instruction for Installation and Debugging
Before delivery, we takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
We also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer, provides the engineer with round-trip tickets, accommodation, vehicle and $100 per day salary.
2. User Training
Before delivery, we will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3. Warranty Period
The warranty period for machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.Mechanical models are standard, make special design according to customer requirements.
