Introduction:

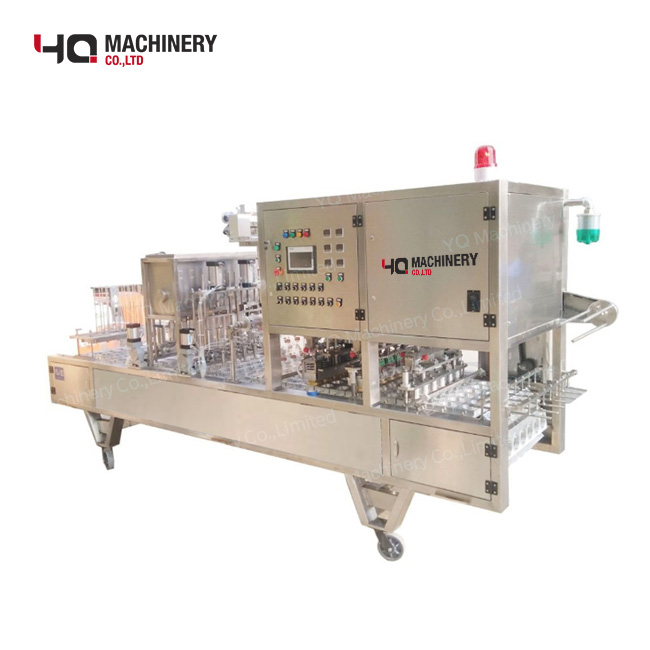

The automatic filling and sealing machine is a packaging device designed for filling and sealing of cups, boxes, bowls, special-shaped containers, etc. It is easy to operate, stable in performance and easy to maintain. It can be used either as a stand-alone machine or as a production line. The machine adopts PLC control, beautiful appearance, reasonable structure, complete functions.
Features:
1. Frame part: It is welded with high-quality carbon steel (also can be made of stainless steel), covered with stainless steel, and solid bolts are installed on the ground.
2. Transmission system: composed of motor, reducer, cam divider, template, transmission chain, etc.
3. Cup drop system: It is made of frame, slide rail, cup storage bin, cup push cylinder, etc. Controlled by the PLC, the synchronous control action is completed by sending a signal when the template is stopped.
4. Filling system: the storage cylinder is made of stainless steel 304, the cylinder stroke working piston quantitative filling, non-contact filling, the filling volume can be adjusted freely, the quantitative is accurate, and the liquid level control device is provided.
5. Coding system: automatic ribbon coding (constant temperature control) is adjustable, and the code can be changed quickly. Easy to load and unload.
6. Film calibration system: the photoelectric eye tracking automatically corrects the film pattern and cup alignment.
7. Cover-laying system: it consists of a cover film, a rotating cylinder, a mechanical arm, a suction cup, etc. (vacuum generator).
8. Sealing system: using constant temperature (intelligent temperature control) hot pressing twice for sealing, the sealing head is a combination of copper and aluminum for easy replacement. The sealing pressure is adjustable.
9. Membrane cutting mechanism: cold die-cutting, cutting out the easy-to-tear cover film, which is convenient for opening.
10. Cup exit system: consisting of slide rail, slider, variable speed motor and mounting bracket.
11. Control system: using well-known relays and PLC programmable control, the main components are well-known brands at home and abroad
YQ type automatic filling and sealing machine adopts chain stepping transmission mechanism. Can work continuously for 24 hours. The use of stainless steel, aluminum alloy, copper and other anti-corrosion materials conforms to the Food Sanitation Law, and the stable and reliable performance is the main equipment of the ideal beverage production line. This machine can automatically (manually) put cups.
Technical parameter:
Model | QCF-2 | QCF-4 | QCF-6 | QCF-8 |
Packaging Speed | 1500-2000pieces/h | 3000-4000pieces/h | 5000-6000pieces/h | 7000-8000pieces/h |
Filling Content | 0-250ml(adjustable) | 0-250ml(adjustable) | 0-250ml(adjustable) | 0-250ml(adjustable) |
Voltage | 3-phase 4-line socket(380V50HZcustomized) | 3-phase 4-line socket(380V50HZcustomized) | 3-phase 4-line socket(380V50HZcustomized) | 3-phase 4-line socket(380V50HZcustomized) |
Electric Motor Power | 0.75KW | 1.1KW | 1.1KW | 1.5KW |
Heat Up Power | 2.2KW | 3.2KW | 4.0 KW | 6.4 KW |
Air Pressure | 0.5MPa-0.75 MPa | 0.5MPa-0.75 MPa | 0.5MPa-0.75 MPa | 0.5MPa-0.75 MPa |
Maximum Air Consumption | 0.45m3/m | 0.45m3/m | 0.45m3/m | 0.45m3/m |
Size(L*W*H) | 2800*650*1700mm | 3500*850*1700mm | 3800*950*1750mm | 4000*1000*1900mm |
Weight | About 600kg | About 800kg | About 1100kg | About 1600kg |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
