Specifications:
1.Easy operation, Easy printing.
2.High accuracy,high quality and high speed
3.Low price
Application:

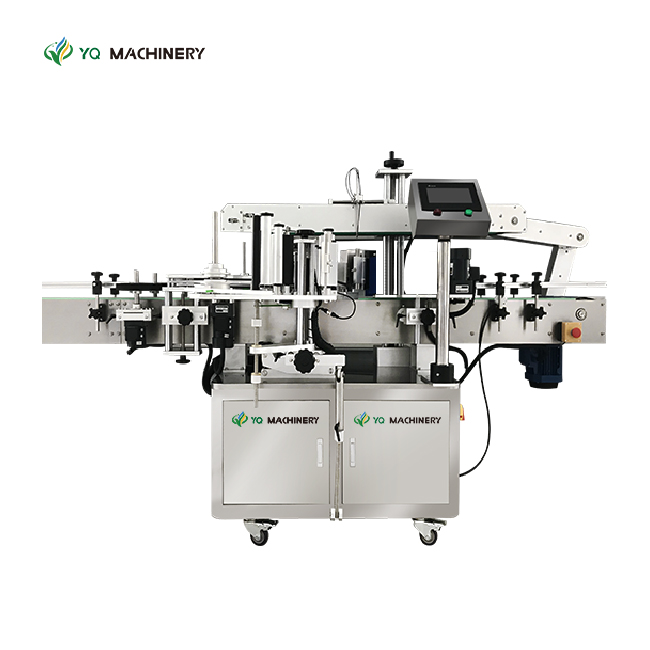

Double sided labeling machine applies to alcohol, medicine, beverages, chemicals, pesticides and other self-adhesive labeling square/flat/round bottles. Host design labeling machines using imported and domestic advanced technology, and to improve and perfect solution for general labeling of domestic instability, optical fiber by computer control, synchronization track, the standard by a servo motor control, automatic detection size of objects and labels are affixed, and automatically controlled by microcomputer mode, large LCD touch panel, display and memory devices containing dozens of groups, is modern and advanced equipment, electric mechanical integration, simple, accurate labeling, reliable performance, power , no noise. Sticker labeling machine is easy to clean, not moldy, after labeling beautiful, strong, will not fall off on their own, production efficiency.
Features:
1). --Adopt imported electromagnetic clutch with best accuracy.
2). --The machine shell adopts high class aluminum alloy anodic treatment, with long life span service.
3). --Adopt famous factory electric motor to ensure high load and long period operation.
4). --All parts and standard components are carefully made of stainless steel.
5). --With PLC control panel, liquid crystal display, the operation is simple and convenient, the function is stable.
6). --Imported label inspection optical coupler can ensure high precision.
7). --There is a code printer on the machine if you need, it also can print three lines like the expire date, valid date, batch number
Characters:
Automatic labeling machine, easy to operate, just turn the power switch one click operation on the entire device to enter production status of products are to be off the label> get items> induction start signal> a standard> label, on the whole production process to complete, simple, accurate and fast are the advantages of this product.
Main technical parameters:
Operating direction | Right/Left |
Production(bottle/min) | 30-100(subject to the size of objects and labels) |
Conveyor speed(meter/min) | ≤40 |
Labeling accuracy | ±1.0mm |
The application label | adhesive sticker , transparent or opaque label |
The inner diameter of label roll | 76mm |
The outer diameter of label roll | 350mm(max) |
The application size of label | Width 15-140mm, length15-300mm |
The application size of bottle | can customized as label objects |
Weight(kg) | 300 |
Power(w) | 1000W |
Voltage | AC 110V/220V 50/60HZ |
Machine Size(mm) | 2400(L) 1350(W) 1500(H)mm |
Work flow:
Bottles distributing---Correcting---Pressing---Labeling---Reinforcing---Finish
1. Fix the label roll on the machine according to the graphical representation, adjust the height of each part.
2. Check if all the position of the labels are correct.
3. Adjust the distance between the two rails, the distance between the brush and the conveyer, make sure the distance is suitable for the product to pass.
4. Turn on the power switch, turn on the optoelectronic switch.
5. Turn on switch of the motor and label sending device, debug labeling, if there are any abnormal, get rid of them.
6. Adjust the labeling position.
7. Ensure the test is OK, then operating the machine normally.
8. Power off.
How to adjust the labeling machine for different size of bottle
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
