YQP-GF
YQ

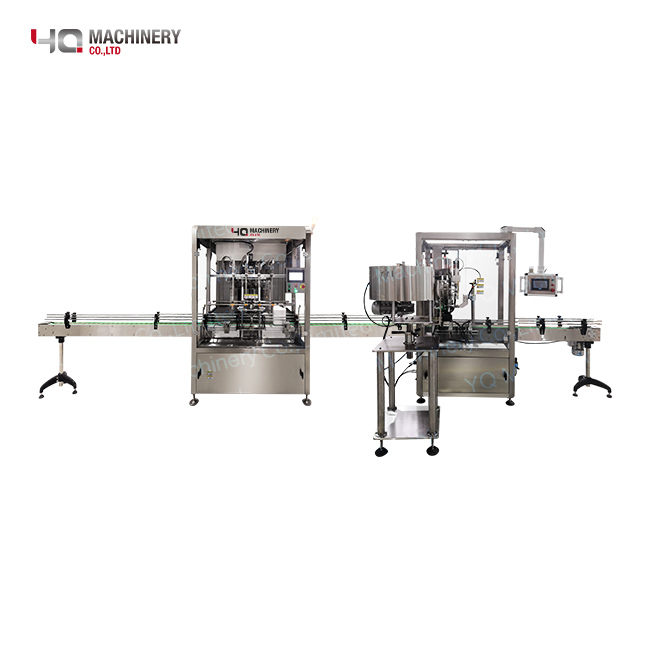

A. Inline filling machine
Introduction of piston filling machine:
Multi-head volumetric filling machine is a new-generation automatic filler which is developed by our company based on many years of production experience and absorbed the world's advanced technology. It adopts the piston-type quantitative principle; the electrical and pneumatic components are selected from well-known brands; controlled by PLC and human-machine interface. The filling accurate is high, and the maintenance is convenient. Widely applicable to filling of various liquids, pastes,sauce. Replacement of filling valves is easy to handle
Features of liquid dispensing machine:
① Use well-known brands of electrical and pneumatic components, low failure rate, reliable performance and long service life.
②Using high-quality stainless steel frame, easy to disassemble, easy to clean, meet GMP requirements
③ The filling volume and filling speed are easy to adjust, operated and displayed by the touch screen, and the appearance is beautiful;
④ It is equipped with “no bottle and no filling” function, and the liquid level is automatically controlled ;
⑤You can quickly adjust bottles of different shapes and specifications without changing parts;
⑥The filling head is equipped with a special leak-proof device, and there is no drawing or dripping during filling.
Note: Filling range and speed can be designed according to user needs....
Technical Parameters of volumetric filler machine:
Applicable specifications | 1-5L |
Production capacity | 5000ml 360-480 pics per hour |
Filling accuracy | ±1% |
Capping rate | ≥99% |
Power supply | 220V / 50Hz 60Hz |
Power | 1.5kW |
B. bottle capper machine

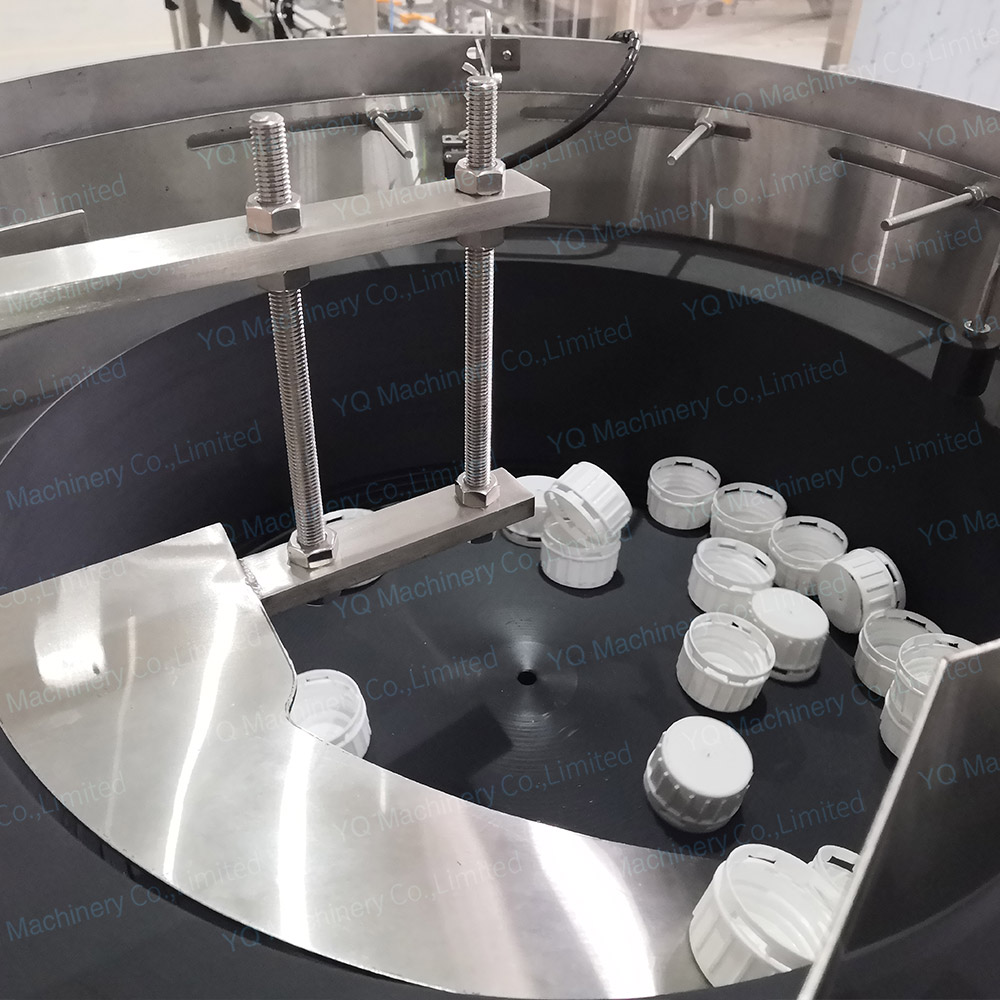

Introduction of capping machinery

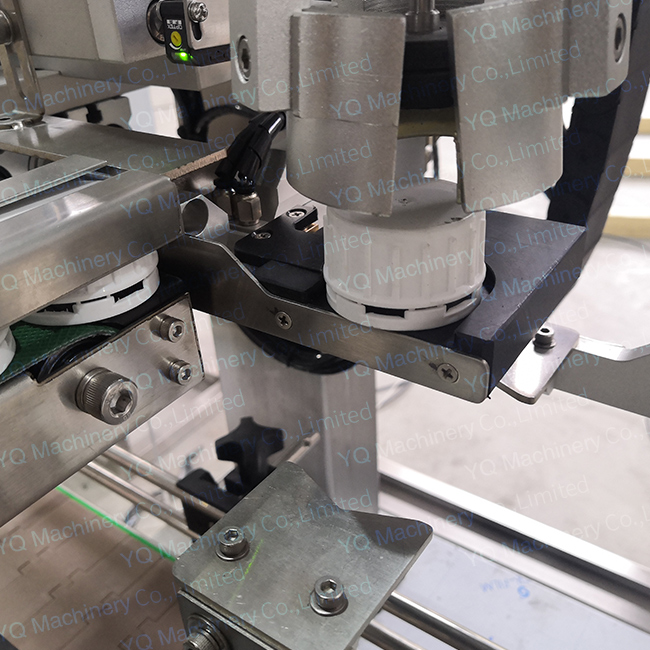

The single-head capping machine adopts servo motor to control the torque and then capping, which does not hurt the bottle and cap, and has fast speed, safety and stability, and high capping efficiency. The bottle cap is followed by the cap, and it is rotated while walking. The reliable XY axis movement action is controlled by the full servo motor.
Application of capper:
First choice equipment for daily chemical industry, edible oil industry, chemical industry, lubricant industry.
Technical Parameters for cap tightening machine:
Model | YQXG-50 |
Production capacity | 25-30bottle /min |
Adapt to cover diameter | 20-150 |
Capping rate | ≥99% |
Power supply | 220V / 50Hz 60Hz (can be customized) |
Power | 2.5kW |
Overall dimensions | 2000X900X2000mm |
Weight | 250KG |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
