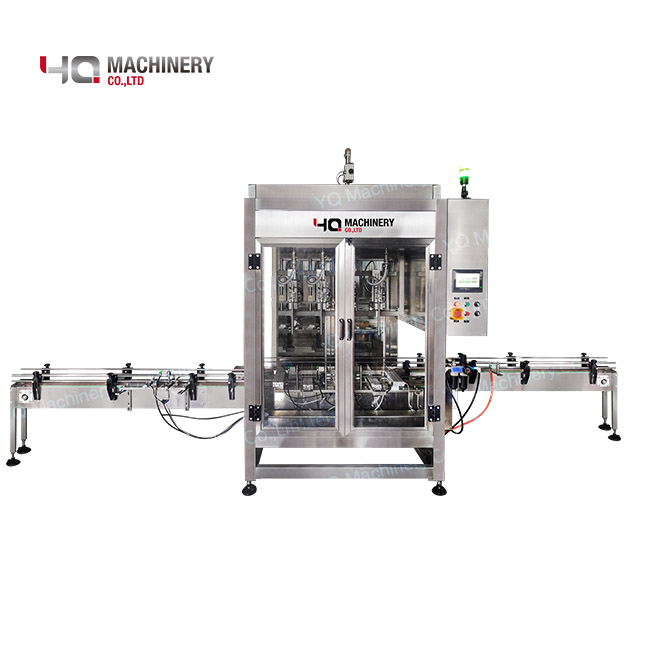

YQGF-5000
YQ
Application:
Application area for this automatic weighing filling machine is Oils, paints, curing agents , organic solvents, cleaning agents, thinners, resins, polyurethanes, medicines, lubricants, flavors, edible oils and various low-viscosity liquid or mobile liquid.
Features of gallon bottle filling machine:
1. This automatic weighing and filling system is manufactured with PLC programmable controller, safe and reliable.

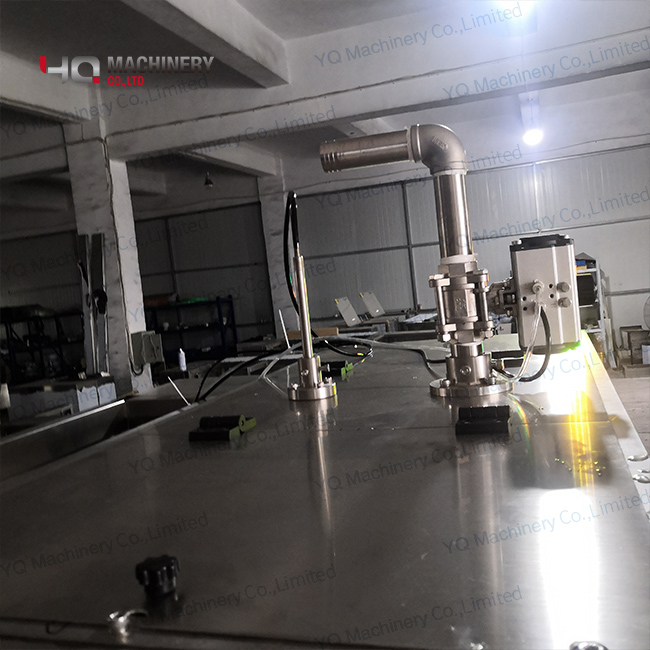

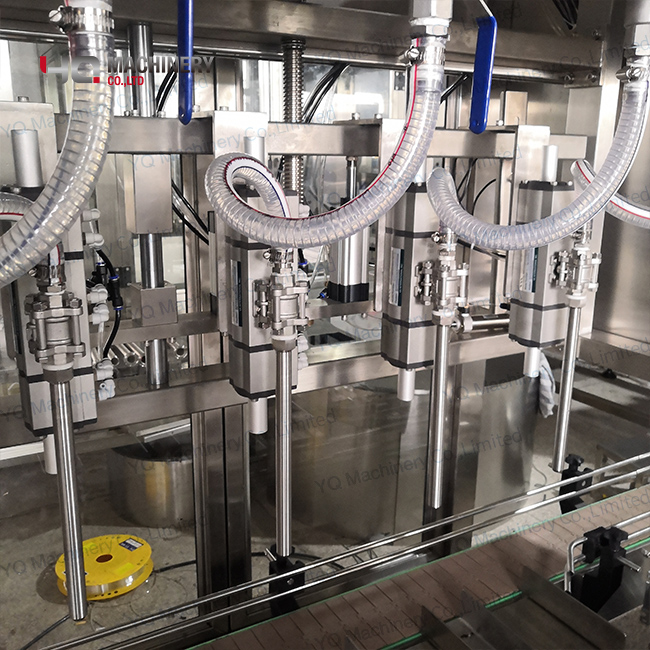

2.The filling head and the inlet and outlet pipes use quick connectors, which are easy to take apart and wash.
3.Using three-stage automatic filling method—slow,quick and slow, which is high accuracy.
4.When the filling head is not inserted into the container,the head is automatically lifted.Or when touching the mouth of the container,the head will alos lift.
5.When the filling target value is reached, the filling head is automatically closed and raised.
6. Two filling methods of net weight and gross weight are free to choose.
7.Filling target volume can be set freely, and 20 sets of recipes can be stored, which is convenient for filling with various weights.
8. The operation is simple and easy to learn, one-key filling, and there is a manual operation mode, the chain automatically controls the feeding system to ensure safety.
9.Automatically judge the range of tare weight and the function of no jug/bottle and no filling.
Technical parameter:
Overall dimensionsof the main machine | L2000mm*W1100mm*H2100mm (two meters in front and two meters in back, total 6 meters) |
Weight | 1100kg |
Diameter of bottle mouth | ≥15mm (bottles with diameter less than 18mm can be customized) |
Specification of filling container | Height: 50mm-400mm; Diameter: 50mm-200mm (shaped bottles can also be used) |
Power supply | 220v; 50/60hz (can be customized) |
Total power | 1.5kw |
Maximum filling volume at one time | 5L |
Filling error | ≤±0.5% |
Air source required | 0.6Mpa clean and dry air source |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system:
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
