YQAL-60
YQ
Introduction:

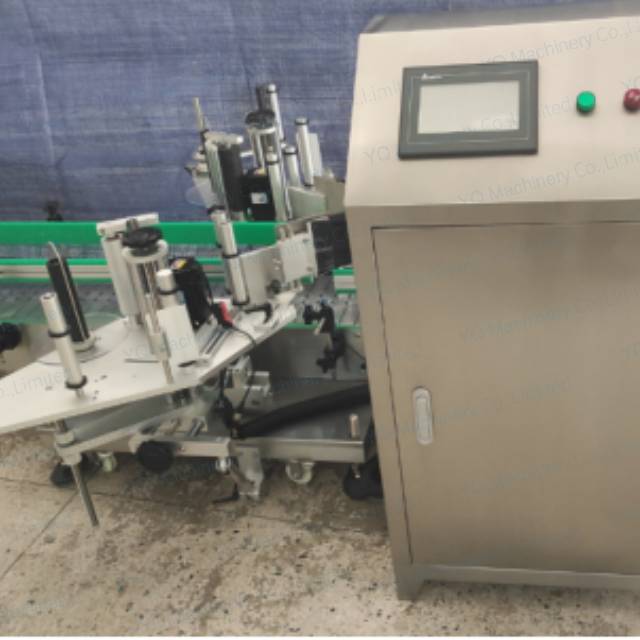

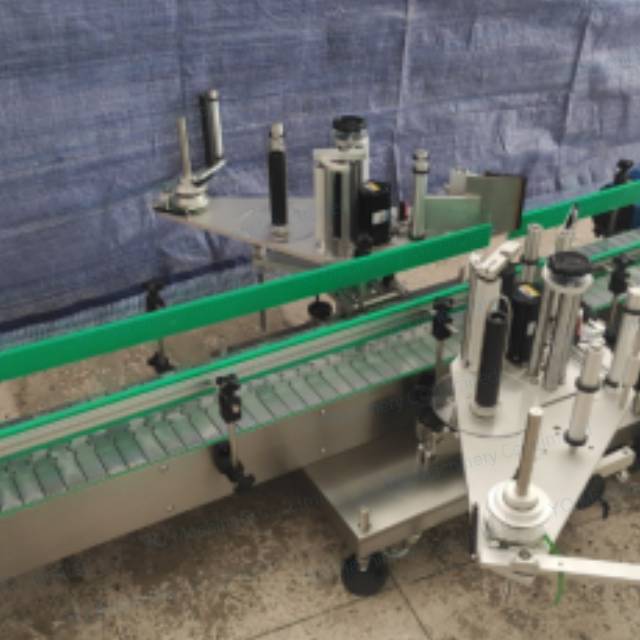

Automatic labeling machine is customized for gallon jug or jerry cans. Labels are applied to the front and back sides of round, square, rectangular or oval containers. This type of label has optional inkjet printer and thermal transfer or hot stamp for date/lot coding. With Full stainless steel construction, the front and back labeler for big container is dependable and durable.It is used widely in different industries,such as the food, pharmaceutical, and household and personal care.
Features:
· Structure of Stainless steel,
· Conveying system to convey the different containers
· Brand name A.C.drive for variable speed
· Specially designed drive mechanism. Label release mechanism
· Dispensing unit to dispense labels
· Front and back label mechanism to apply the label on different container
· Reel mechanism to hang the roll
· Break assembly to avoid variation during releasing of roll
· Microprocessor base electronics control system for total operation of the machine with programmable touch key board & L.C.D display (PLC.) with programming facilities (Servo Based )
Technical Parameter:
Model | YQAL-60 |
Capacity(cans/min) | 10-70 (Depends on can size) |
Operation direction | Left in, right out or right in, left out |
Labeling accuracy | ±1.0 mm |
Labels type | Adhesive labels |
Roll diameter | Φ76 mm |
Roll outer diameter | Φ350 mm(max) |
Label size | L10-250mm,H10-300mm |
Labeled object size | Φ300 mm (Can be customized) |
Working pressure | 0.6MPa |
Voltage/power | 220VAC±10% 50Hz,1.5Kw |
Applicable environment | Temperature 0-40℃,humidity 15-85%(No condensation) |
Weight(kg) | 200KG |
Machine Size | 2400(L) 800(W) 600 (H) mm |
Remarks | Can be customized |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
