YQWF-1
YQ
Introduction:

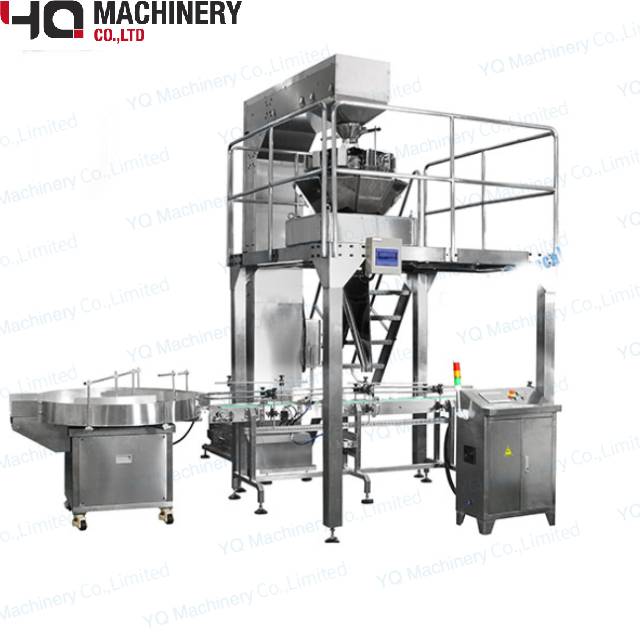

YQ Weigh Fillers provide you the perfect blend of accuracy, speed, and versatility across a comprehensive line of net weigh feeders. Our weight and packaging machine are ideal for the controlled dispensing of products that are unsuitable for traditional auger filling. The line consists of single or multiple vibrating trays that carefully regulate the product into a load cell-equipped weigh bucket. When the required weight is attained, the bucket dispenses the product into a container
Application:
With customized elements, including the multihead weigher, Z type elevator, platform and control system.Our weigh filling machines are designed to handle unique products with accurate weights. From small consumables such as nuts, candy, snack foods, and coffee to industrial-use powders, granules, and chemicals, our series of weigh feeders offer the flexibility to handle many types of products.
Technical Parameter:
Model | YQWF-1 |
Container Diameter | 20-300mm |
Container Height | 30-300mm |
Max Filling Speed | 10-20 cans/min |
Option | Press Structure/Vibration Structure |
Interface | 7"HMI |
Power Parameter | 220V 1P 50/60HZ 2KW |

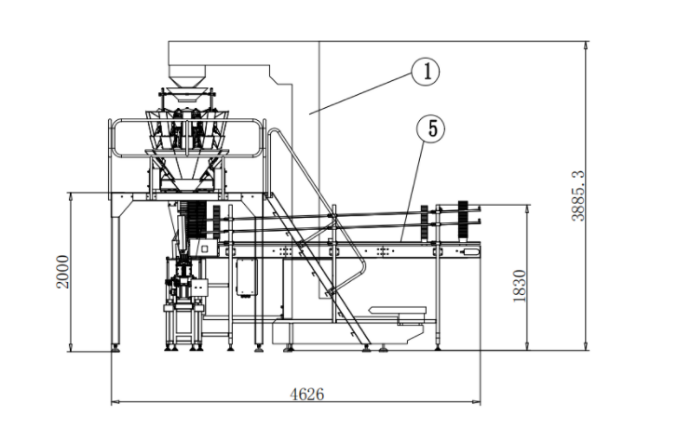

Size (mm) | 4600(L)×1800(W)×3850(H) |
Gross Weight(Kg) | 300 |
Customized elements: | |
a.Z Shape bucket elevator | Raise material to multihead weigher which controls the start and stop of the hoister. |
b.10 heads multihead weigher | Used for quantitative weighing. |
c.Working platform | Support the 10 heads multi weigher. |
d.Can tin conveying system | Conveying the can. |

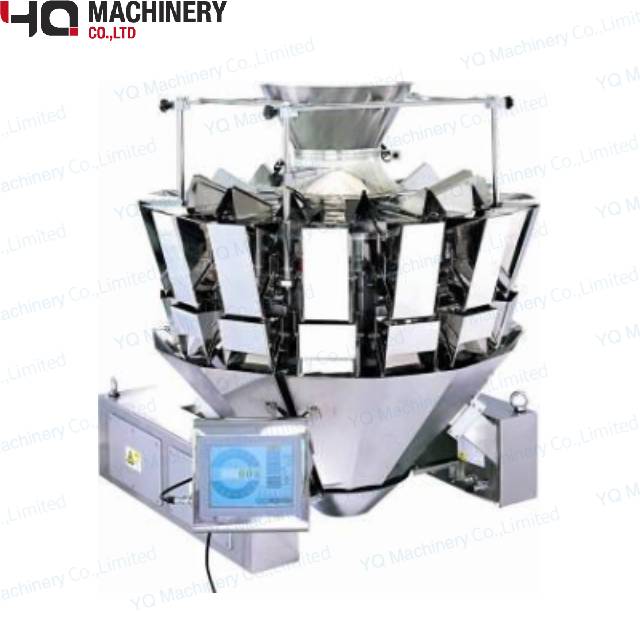

A.10 Heads Computer Combination Weigher
Main performance and structural features:
* IP65 waterproof, use water cleaning directly, save time while cleaning;
* Modular control system, more stability and lower maintenance fees;
* Production records can be checked at any time or download to PC;
* Load cell or photo sensor checking to satisfy different requirements;
* Preset stagger dump function to stop blockage;
* Design linear feeder pan deeply to stop small granule products leaking out;
* Refer to product features, select automatic or manual adjust feeding amplitude;
* Food contact parts disassembling without tools, which is easier to clean;
* Multi-languages touch screen for various clients, English, French, Spanish, etc;
* PC monitor production status, clear on production progress (Option).

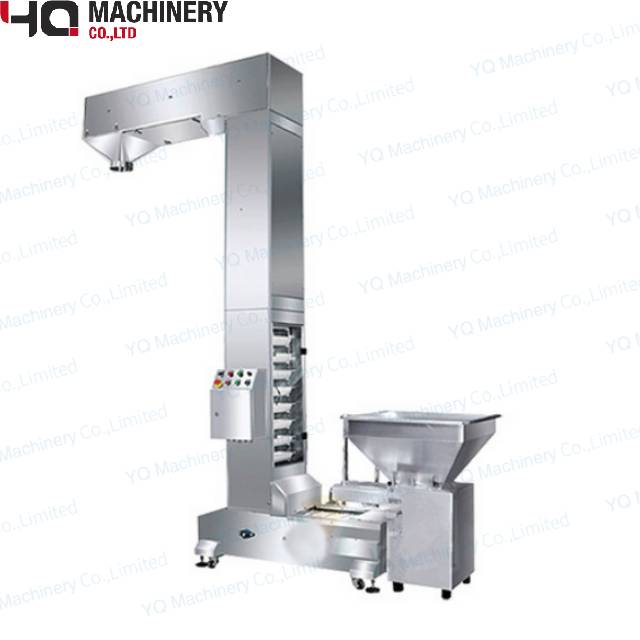

B.Z Type Material Conveyor With Feeder
Introduction:
It's suitable use in delivery the grain, food, food stuff etc. Conveyor with the character of large quantity. NO crash material.
High Lifting etc. Lifting height: 3.3-10m (according to customer’s requires) .It can be made both stainless steel and plastic painted .Thecontact parts of food grade plastic.
C.Working platform
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
