Introduction:

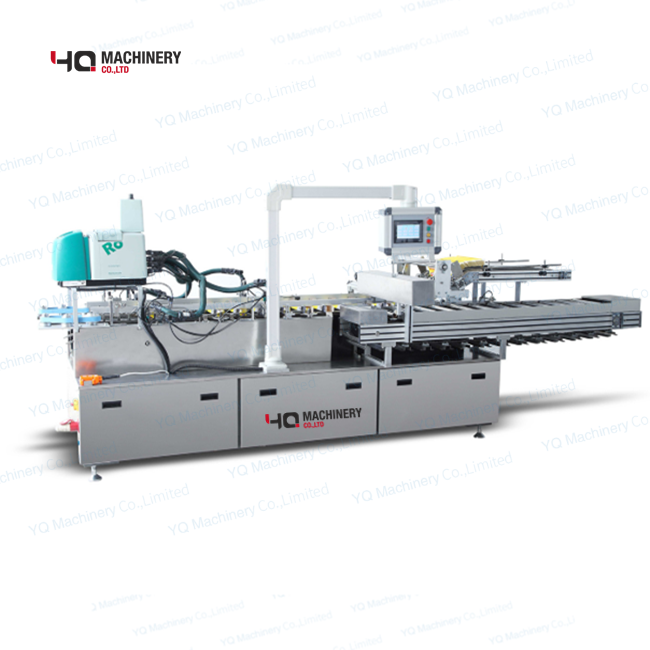

The high speed cartoner machine is controlled by the PLC man-machine interface and adopts the principle of chain-type continuous movement, thus ensuring the stability of high-speed operation. The online storage interface can also be made according to the customer’s requirements for the product.the items are divided by the conveying mechanism through the distributing device, and sent to the conveyor belt, and the push rod pushes the product into the carton, and spray glue to seal the box at a specific position. The high speed cartoning machines can also adjust the speed digitally, so that its running speed can closely match the production capacity of other packaging machines. It is suitable for the industries of medicine, food, daily cosmetics, chemical industry, hardware and electronics, etc.
Features:
1. The machine uses a rotary three-suction head to open box.
2. The product conveyor belt of this high speed cartoner machine moves longitudinally. When the material is pushed into the box, the silo moves and the edge is placed into the carton.
3. The machine adopts PLC man-machine interface control system, and the frequency converter, servo motor and pneumatic components are all selected international famous brand products.
4. No products, no boxes.
5. If there is no box or the product is not in place, it will automatically alarm or stop.
6. The air pressure and vacuum protection stop, and the main drive has an overload protection device.
7. The product specifications can be changed very easily through the handwheel.
8. Product conveying pusher transmission device.
9. PLC automatically displays the cartoning speed and cartoning machine working status.
Technical Parameter:
Power supply: AC380V 60HZ three-phase five-wire system power supply
Dimensions: 4200X1600X1750mm (length × width × height)
Maximum power: 4KW (when single matching power source)
Noise: no more than 80dB
Production capacity: ≤160 boxes/min
Maximum carton size 250×110×70 (length X width X height)
minimum carton size 70×40×20 (length X width X height)
Paper selection: 300-350 g/m2
Overall weight: about 2.5 tons
About packing
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our service
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
