Introduction

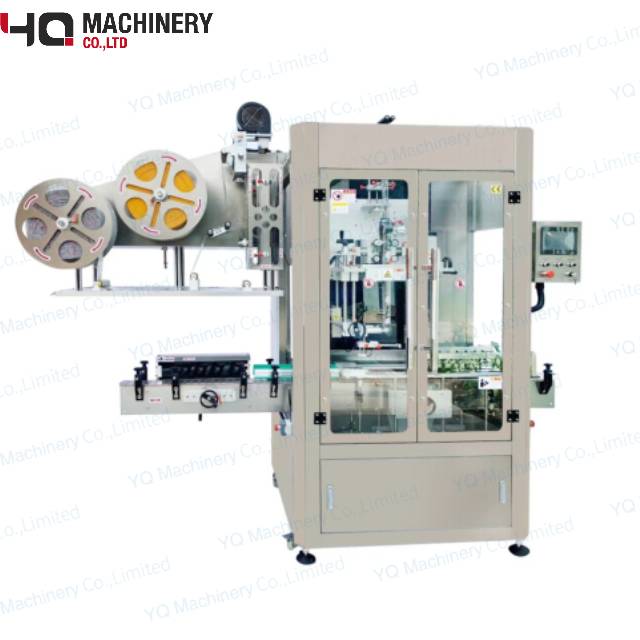

YQ machinery shrink sleeve label applicators are the high-speed, high performance models in our shrink sleeve .YQ MACHINERY can offer sleeve label applicators which is dependable, steady-state production and speed can choose according to your requirement.So This flexibility sleeve applicatormakes shrink sleeve label applicators be one of the best values in the industry
YQ machinery sleeve label applicators are mandrel style machines that use servo motion control to deliver consistent, repeatable performance. Container changeovers are tool-less and require less than ten minutes depending on product sizes and shapes.The sleeve label applicators are available in the industry with no reduction in speed or efficiency.
YQ machinery offers the flexibility to perform multiple important shrink applications
· Tamper evident bands
· Partial body sleeves
· Full body sleeves
· Full body over-the-cap sleeves
Application
So YQ MACHINERY shrink sleeve label applicators are used in a wide variety of industries including fluid milk, craft beer, ready-to-drink beverages, cosmetics, home care products, and personal care products etc.

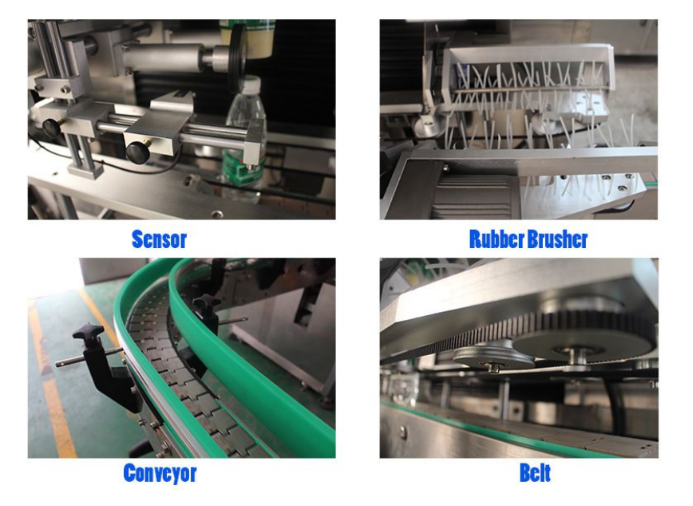

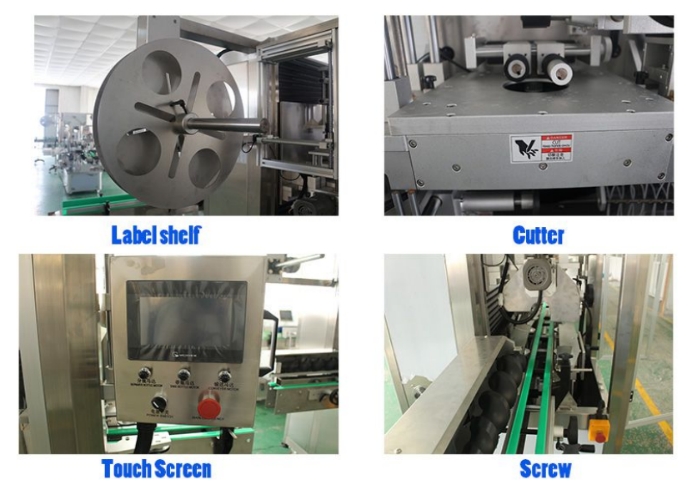

Details Pictures
Technical Parameter
Model | YQSL-150 | YQSL-250 | YQSL-250D | YQSL-300 | YQSL-400 |
Power supply | 3.0KW | 3.3KW | 6.0KW | 6.0KW | 6.0KW |
Input voltage | 220V/380V | 220V/380V | 220V/380V | 220V/380V | 220V/380V |
Capacity | 9000BPH | 15000BPH | 15000*2BPH | 18000BPH | 24000BPH |
Host machine dimension | 2100*850*2000 | 2100*850*2000 | 3200*1100*2070 | 2200*1100*2200 | 2500*1200*2200 |
Framwork material | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
Length of label(mm) | 30-260 | 30-260 | 30-260 | 30-260 | 30-260 |
Thickness of label(mm) | 0.03-0.13 | 0.03-0.13 | 0.03-0.13 | 0.03-0.13 | 0.03-0.13 |
Diameter of bottle | 28-125 | 28-125 | 28-125 | 28-125 | 28-125 |
Height of bottle | 50-280 | 50-280 | 50-280 | 50-280 | 50-280 |

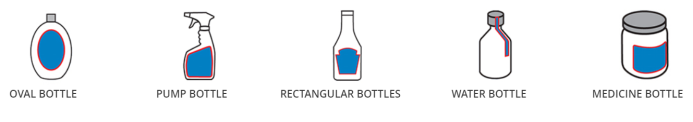

Bottle shape | Round/Square/ Flat/Oval | Round/Square/ Flat/Oval | Round/Square/ Flat/Oval | Round/Square/ Flat/Oval | Round/Square/ Flat/Oval |
Installation Guide for Sleeve Label Applicator
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
