YQFC-80
YQ

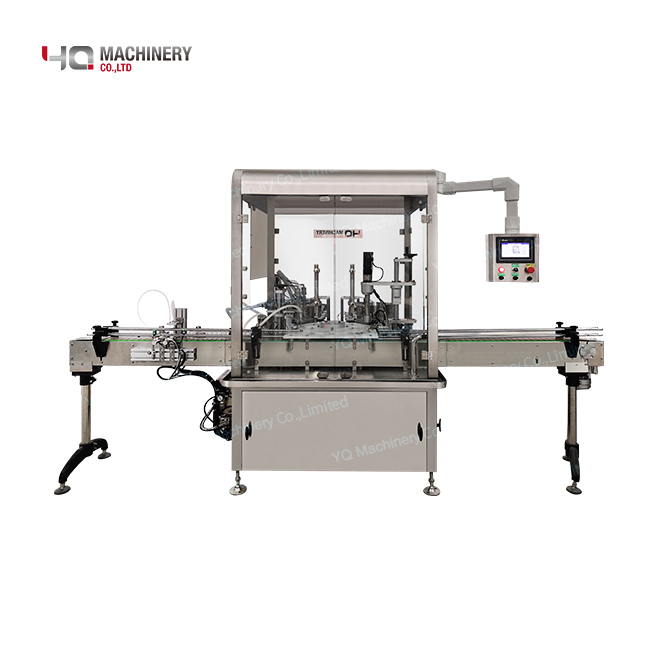

Features of high speed bottle filler:
a. Microcomputer setting, accurate loading and convenient operation.
b. The filling system has the function of sucking back without dripping.
c. The cover is automatically placed by the robot.
d. Automatic stop function, it can stop automatically when there is no filling and no plug in any track.
Working principle of high speed filling equipment:
The rotary filling equipment is divided into several operations such as bottle feeding, automatic filling, pre-capping, screw capping, labeling, bottle accumulation table and so on.

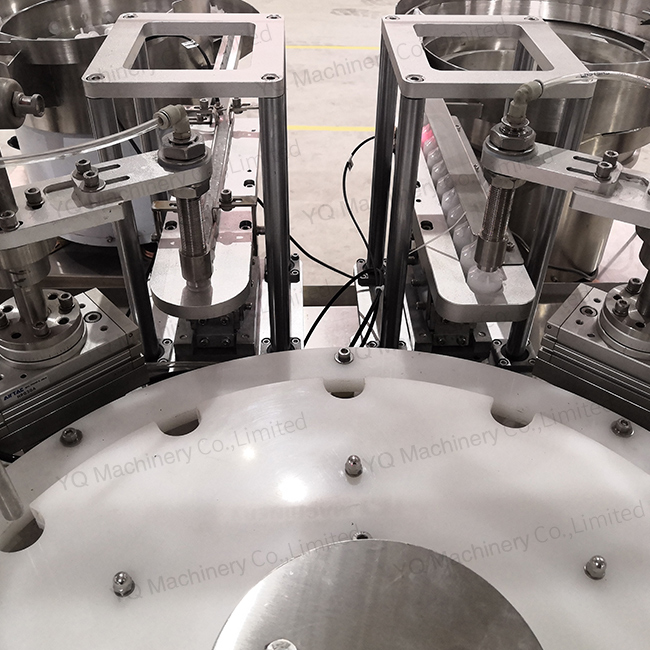

Bottle feeding:Workers place bottles on conveyor belt, and the bottles will move into star wheel

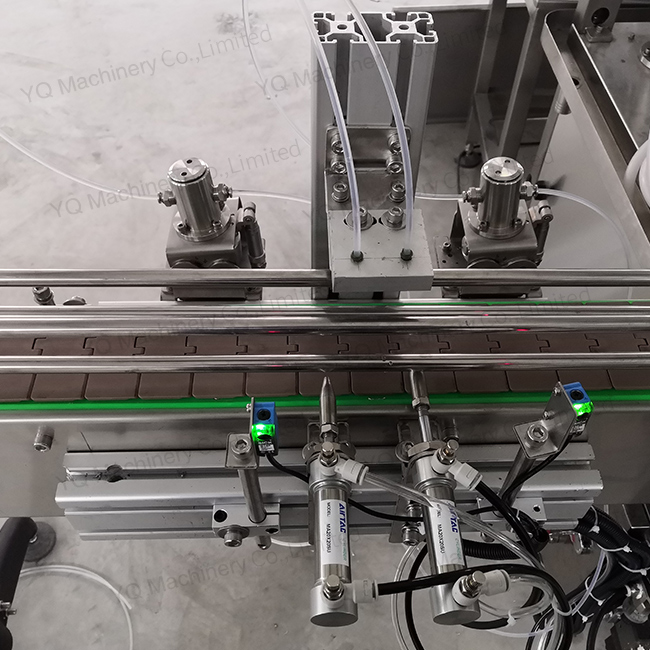

Detection: The photoelectric sensor detects whether there is an empty bottle on the star wheel, and sends the detection signal to the control computer to control the filling with the bottle.

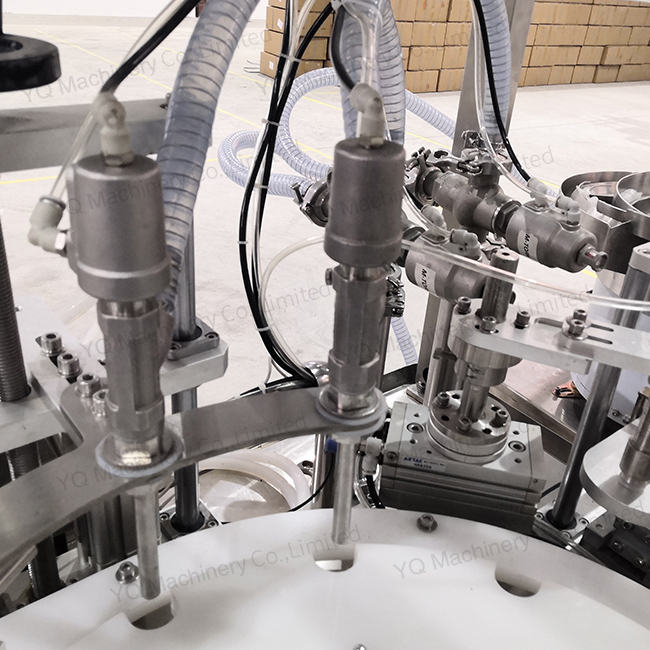

Filling: If a bottle is detected in the front, the PLC controls the filling nozzle to dive into the bottle for filling.
Cap detection: detect whether there is a cap or not.
Pre-screw: pre-screw the cap that has been placed in the bottle.
Screw cap: The torque and speed are controlled by a servo motor to ensure that the cap is screwed tightly and the tightness is consistent.
Bottle output: The bottle that has been capped finally goes to the conveyor belt.
Main technical parameters:
Filling Volume: | 10-100ml |
Capacity: | 60-80BPM |
Filling Precision | ≤±1% |
Power Supply | 220V;50/60Hz (can be customized) |
Capping Rate | ≥99% |
Air Supply | 0.6-0.8Mpa |
Power | 1.5 kw |
Weight | 800 kg |
Dimension | 2400*1100*1800mm |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
