Availability: | |
---|---|
Quantity: | |
Specifications

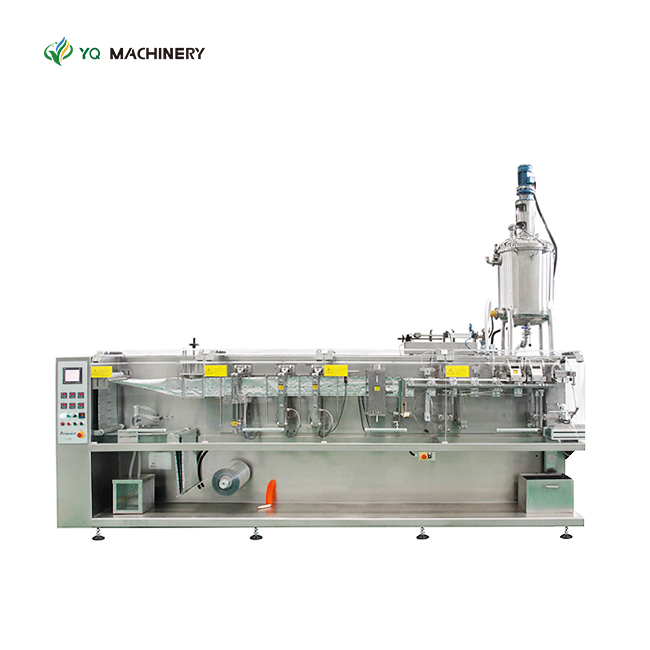

1.Horizontal Automatic Liquid Packing Machine
2.Widely used
3.Premium configuration
4.Reasonable Price
5.Optimized Solution
Description:
This is a fully-automatic packing machine with Form-Fill-Seal function which is widely used for food, beverage, cosmetics, chemicals, pharmaceuticals packaging.The packing material can be regular laminated film such as, PE/AL/PET; PE/NY/AL/PET; CPP/NY/AL/PET. This type of machine can make stand up pouch and then finish the packing process. The main packager can be integrated with various filling systems, suitable for all kinds of products, such as powder, small granule, liquid, viscous liquid, paste, tablet, candy, solid, stick, large solid and irregular products.
Application :
1.Food Industry:
Mayonnaise & Sauce, Tomato Ketchup, Candy & Chocolate, Snack, Milk Powder, Oil Product, Dairy Food, Spices & Seasoning, Pet Food, Honey and so on.
2.Beverage Industry:
Coffee & Tea, Powder Drink, Water Product, Yoghurt & Liquid Milk, Fruit Juice, Beer & Liquor, Nutritional Beverages and so on.
3.Cosmetics & Personal Care:
Skin Care, Hair Care, Sun Care, Baby Care, Oral Care, Bath & Shower, Cream, Toweletters, Perfumery and so on.
4.Household Industry:
Dishwash Product, Detergent, Laundry Product, Fabric Softener, Floor Cleaner, Air Freshener and so on.
5.Industrial Chemicals:
Agrichemical, adhesive, Lubricant, Paint and so on.
6.Pharmaceutical Industry:
Powder Pharma, Granule Pharma, Tablet Pharma, Capsule Pharma, Liquid Pharma, Ampoule and so on.
Technical Parameter:
Pouch Size | 80mm-180mm(Width) 100mm-220mm(Height) |
Filling Capacity | Less than 400g |
Packing Speed | 40-80ppm |
Power | 5.0kw |
Air Consumption | 0.7Mpa |
Weight | 1050kg |
Dimension | 3220*1010*1450mm |
Material Quality | Stainless steel |
Packing Material | Laminated film(PE/NY/AL/PET) |
Function | 3Sided Seal or 4 Sided Seal |

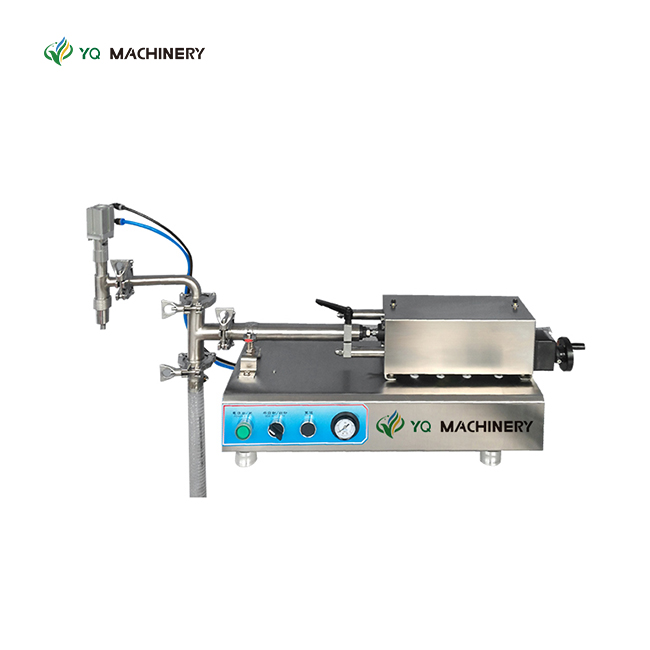

Piston Filler
1.This valve can be used for filling paste and fluid products.The design is easy clean, no blind corner.
2. With counting device, machine can count the filling times automatically;
3. Material contact parts is made of 316 stainless steel, in line with the requirements of GMP standard;
4. Filling head use anti-drop device, which keep each filling action clean, and the filling head place and height is adjustable
5. Filling speed is quick, it can reach 30-50 times filling action per minute, take 500ml water for instance, filling accuracy is ±1% .
After-sale service:
1. Instruction for Installation and Debugging
Before delivery, we takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
We also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer, provides the engineer with round-trip tickets, accommodation, vehicle and $50 per day salary.
2. User Training
Before delivery, we will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3. Warranty Period
The warranty period for machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.Mechanical models are standard, make special design according to customer requirements.
Specifications
1.Horizontal Automatic Liquid Packing Machine
2.Widely used
3.Premium configuration
4.Reasonable Price
5.Optimized Solution
Description:
This is a fully-automatic packing machine with Form-Fill-Seal function which is widely used for food, beverage, cosmetics, chemicals, pharmaceuticals packaging.The packing material can be regular laminated film such as, PE/AL/PET; PE/NY/AL/PET; CPP/NY/AL/PET. This type of machine can make stand up pouch and then finish the packing process. The main packager can be integrated with various filling systems, suitable for all kinds of products, such as powder, small granule, liquid, viscous liquid, paste, tablet, candy, solid, stick, large solid and irregular products.
Application :
1.Food Industry:
Mayonnaise & Sauce, Tomato Ketchup, Candy & Chocolate, Snack, Milk Powder, Oil Product, Dairy Food, Spices & Seasoning, Pet Food, Honey and so on.
2.Beverage Industry:
Coffee & Tea, Powder Drink, Water Product, Yoghurt & Liquid Milk, Fruit Juice, Beer & Liquor, Nutritional Beverages and so on.
3.Cosmetics & Personal Care:
Skin Care, Hair Care, Sun Care, Baby Care, Oral Care, Bath & Shower, Cream, Toweletters, Perfumery and so on.
4.Household Industry:
Dishwash Product, Detergent, Laundry Product, Fabric Softener, Floor Cleaner, Air Freshener and so on.
5.Industrial Chemicals:
Agrichemical, adhesive, Lubricant, Paint and so on.
6.Pharmaceutical Industry:
Powder Pharma, Granule Pharma, Tablet Pharma, Capsule Pharma, Liquid Pharma, Ampoule and so on.
Technical Parameter:
Pouch Size | 80mm-180mm(Width) 100mm-220mm(Height) |
Filling Capacity | Less than 400g |
Packing Speed | 40-80ppm |
Power | 5.0kw |
Air Consumption | 0.7Mpa |
Weight | 1050kg |
Dimension | 3220*1010*1450mm |
Material Quality | Stainless steel |
Packing Material | Laminated film(PE/NY/AL/PET) |
Function | 3Sided Seal or 4 Sided Seal |
Piston Filler
1.This valve can be used for filling paste and fluid products.The design is easy clean, no blind corner.
2. With counting device, machine can count the filling times automatically;
3. Material contact parts is made of 316 stainless steel, in line with the requirements of GMP standard;
4. Filling head use anti-drop device, which keep each filling action clean, and the filling head place and height is adjustable
5. Filling speed is quick, it can reach 30-50 times filling action per minute, take 500ml water for instance, filling accuracy is ±1% .
After-sale service:
1. Instruction for Installation and Debugging
Before delivery, we takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
We also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer, provides the engineer with round-trip tickets, accommodation, vehicle and $50 per day salary.
2. User Training
Before delivery, we will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3. Warranty Period
The warranty period for machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.Mechanical models are standard, make special design according to customer requirements.
