YQP-HL
YQ
Specifications

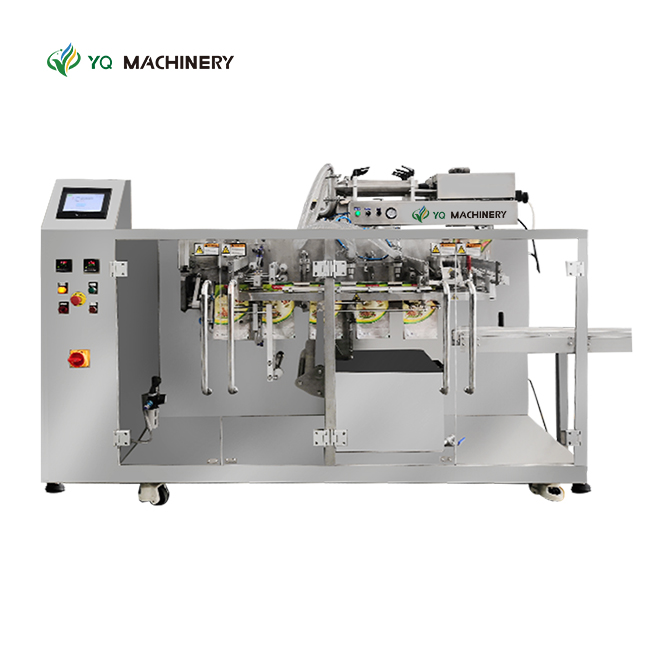

1.Horizontal Automatic Liquid Packing Machine
2.Widely used
3.Premium configuration
4.Reasonable Price
5.Optimized Solution
Description:
Pouch making, sealing and filling are relatively independent system. The two systems are connected by mechanical connection and PLC. Therefore, suitable for different packaging material and pouch sizes.Finished product sealing system uses hot seal packaging material to go on automatic pouch making, and so on. Pouches are flat bags of 3-side seal or 4-side seal. Selecting different filler can package different products.
Application :
Liquid: Detergent,fruit juice,miller wine,soy sauce,vinegar,drinks etc
Thick liquid: Chili sauce,tomato sauce,peanut butter,jam,bean sauce etc.
Technical Parameter:
Pouch Size | 80mm-180mm(Width) 100mm-220mm(Height) |
Filling Capacity | Less than 400g |
Packing Speed | 40-80ppm |
Power | 5.0kw |
Air Consumption | 0.7Mpa |
Weight | 1050kg |
Dimension | 3220*1010*1450mm |
Material Quality | Stainless steel |
Packing Material | Laminated film(PE/NY/AL/PET) |
Function | 3Sided Seal or 4 Sided Seal |
Piston Filler
1.This valve can be used for filling paste and fluid products.The design is easy clean, no blind corner.
2. With counting device, machine can count the filling times automatically;
3. Material contact parts is made of 316 stainless steel, in line with the requirements of GMP standard;
4. Filling head use anti-drop device, which keep each filling action clean, and the filling head place and height is adjustable
5. Filling speed is quick, it can reach 30-50 times filling action per minute, take 500ml water for instance, filling accuracy is ±1% .
After-sale service:
1. Instruction for Installation and Debugging
Before delivery, we takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
We also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer, provides the engineer with round-trip tickets, accommodation, vehicle and $50 per day salary.
2. User Training
Before delivery, we will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3. Warranty Period
The warranty period for machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.Mechanical models are standard, make special design according to customer requirements.
