YQP-HP
YQ
Specifications:

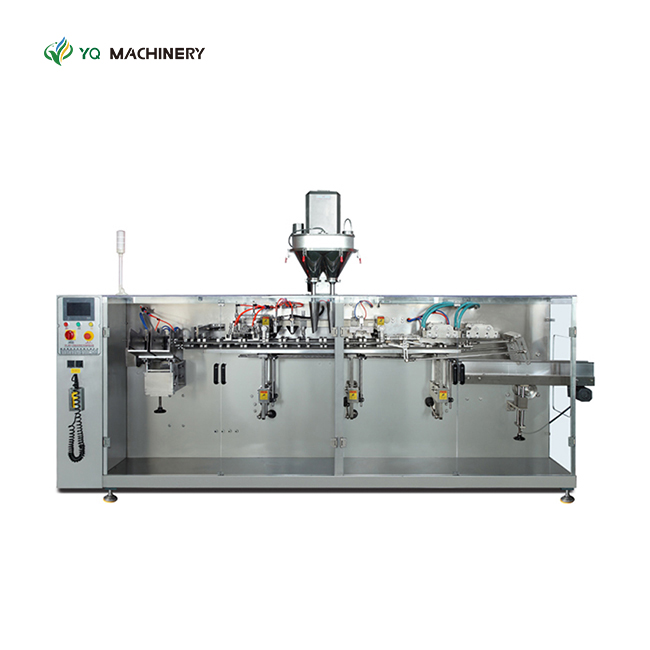

1.Horizontal Automatic Powder Packing Machine
2.Widely used
3.Premium configuration
4.Reasonable Price
5.Optimized Solution
Description:
This is a horizontal pouch packing machine, installed with dual auger filler.The main packager can be integrated with various filling systems, suitable for all kinds of products, such as powder, small granule, liquid, viscous liquid, paste, tablet, candy, solid, stick, large solid and irregular products.
Application :
1.Food Industry:
Mayonnaise & Sauce, Tomato Ketchup, Candy & Chocolate, Snack, Milk Powder, Oil Product, Dairy Food, Spices & Seasoning, Pet Food, Honey and so on.
2.Beverage Industry:
Coffee & Tea, Powder Drink, Water Product, Yoghurt & Liquid Milk, Fruit Juice, Beer & Liquor, Nutritional Beverages and so on.
3.Cosmetics & Personal Care:
Skin Care, Hair Care, Sun Care, Baby Care, Oral Care, Bath & Shower, Cream, Toweletters, Perfumery and so on.
4.Household Industry:
Dishwash Product, Detergent, Laundry Product, Fabric Softener, Floor Cleaner, Air Freshener and so on.
5.Industrial Chemicals:
Agrichemical, adhesive, Lubricant, Paint and so on.
6.Pharmaceutical Industry:
Powder Pharma, Granule Pharma, Tablet Pharma, Capsule Pharma, Liquid Pharma, Ampoule and so on.
Technical Parameter:
Packing Accuracy | ±1% |
Packing Speed | 60-110 Bags/Min |
Pouch Height | 0-350mm |
Pouch Width | 50-120mm |
Packing Range | Max.200g |
Weight | 1300kg |
Dimension | 3400*1250*1450mm |
Power | 5kw |

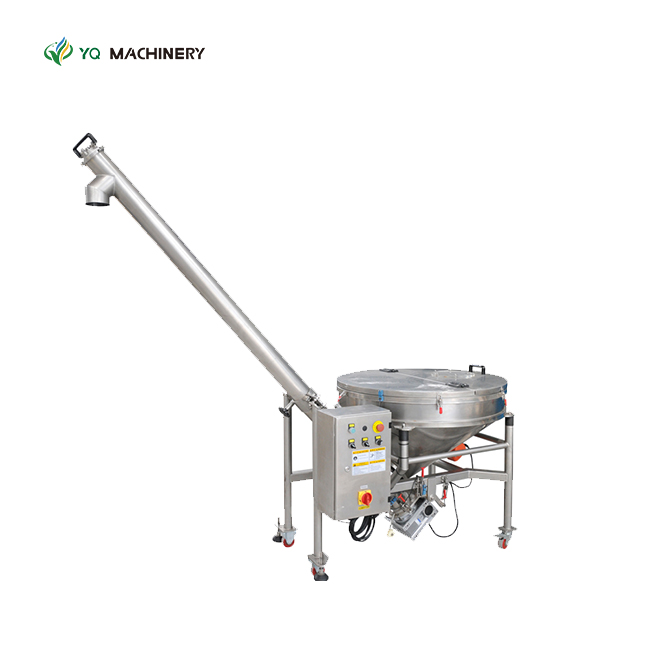

2. Screw Conveyor
Application Area:
free flowing powder such as milk powder, washing powder, oatmeal powder, herb powder, seasoning powder, drink powder, coffee powder, chemical powder, tea powder, flour powder, chocolate powder, juice powder, medical powder, etc into premade pouch, zipper pouch, etc.
Main Features:
1. Simplicity of operation is the key element in screw conveyor .the only moving part is the motor driven spiral which rotates with a sealed tube to move the materials along with it. There is no bearing components in pipeline, no matter how long the transportation is, the machine requires little maintenance, the conveyor is reliable, it will not occurs that some problems like bearing grease pollution during materials transportation.
2. Hopper is separate from twisting shaft. Structure is reasonable and easily loading and unloading.
3. In order to convenience machine cleaning, following functions are added in: auger can reverse for emptying the tube, product discharge gate is mounted in the bottom of the funnel, auger can be disassembled for washing.
Main Technical Parameters:
Charging Capacity | 3cbm/hour |
Hopper Volume | 200L |
Power | 3 Phases 380V/220V 50/60HZ |
Total Power | 810W |
Weight | 130kg |
3.Auger Filler
Application Area:
Auger filler is suitable for filling various powders with easy flow or poor mobility as well as granular products, such as milk powder, rice flour, protein powder, granular medicines, granular additive, glucose, spices, dyestuff etc…
Main Features:
1. Drove by servo motor, controlled by PLC and touch panel, easy operation and stable. Touch panel shows working status, operation sign, error alarm and production when auger filler working. Modules can save 7 different working datas.
2. Suitable for filling varies micro-powders and granules through add screw length or change screw accessories.
3. Easy flow products: Installs centrifugal device on filling inlet to ensure filling accuracy.
Powder: Installs dust-collector on filling inlet.
4. Machine surface is made by stainless steel. Hopper can be open and close, easy clean no need disassemble.
5. Installs hand wheel to adjustable machine height.
Main Technical Parameters:
Filling Weight | 10-5000g(needs change screw accessories) |
Filling Accuracy | 100g,≤±2%; 100 – 500g,≤±1%; ≥500g,≤±0.5% |
Filling Speed | 10-50 bags/min |
Power | 3Phases 380V 50/60HZ |
Total Power | 1.4KW |
Overall Dimensions | 1140*970*2030mm |
Weight | 260kg |
4.Dust collector
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
After-sale service:
1. Instruction for Installation and Debugging
Before delivery, we takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
We also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer, provides the engineer with round-trip tickets, accommodation, vehicle and $50 per day salary.
2. User Training
Before delivery, we will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3. Warranty Period
The warranty period for machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.Mechanical models are standard, make special design according to customer requirements.
