YQHS-50
YQ
Applications:

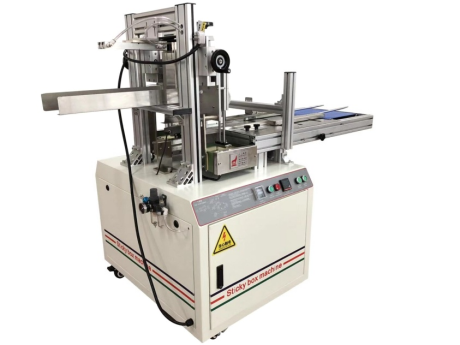

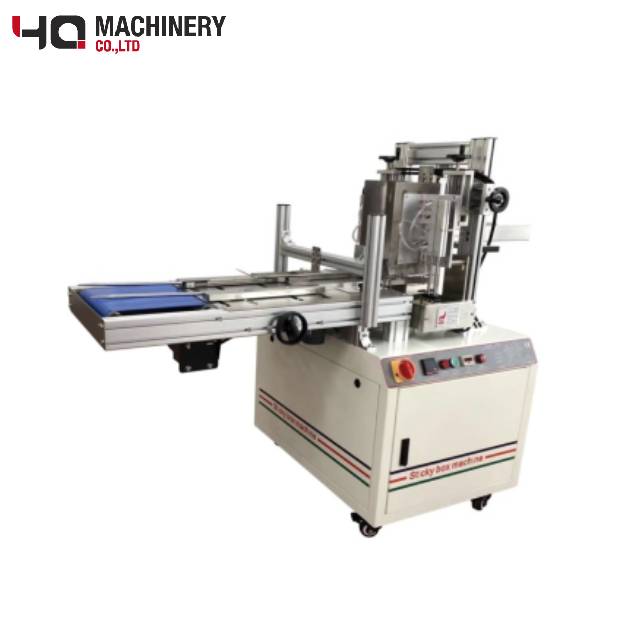

This hot melt glue carton sealing machine are used in food, daily chemical and pharmaceutical industries.such as facial tissue box, biscuit box, soap box, snack box, plastic bags paper box, pharma box, etc.
Features:
1. The hot melt glue box sealer machine apply glue on both sides of box and then seal them.
2. Working step: Feeding boxes by hand--boxes automaic delivered to gluing unit--automatic gluing--automatic folding and sealing.
3. Applying glue by gluing wheels,save glue and increase speed.
4. Box sizes can be adjusted customers’ requirement.
Techinical parameter
Product Name | Hot Melt glue box carton sealing machine |
Model | YQHS-50 |
Voltage | AC220V/50,AC110V/60Hz |
Power | 2400W |
Packing speed | 40-60 boxes/min |
Box size: | (80-300)*(50-200)*(15-120)mm |
Glue capacity | 2kg |
Transport form | Conveyor belt drive on both sides |
Weight | 260kg |
Dimension | 1500*850*1500mm |
How to adjust the machine, please see the video
About packing
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
Applications:
This hot melt glue carton sealing machine are used in food, daily chemical and pharmaceutical industries.such as facial tissue box, biscuit box, soap box, snack box, plastic bags paper box, pharma box, etc.
Features:
1. The hot melt glue box sealer machine apply glue on both sides of box and then seal them.
2. Working step: Feeding boxes by hand--boxes automaic delivered to gluing unit--automatic gluing--automatic folding and sealing.
3. Applying glue by gluing wheels,save glue and increase speed.
4. Box sizes can be adjusted customers’ requirement.
Techinical parameter
Product Name | Hot Melt glue box carton sealing machine |
Model | YQHS-50 |
Voltage | AC220V/50,AC110V/60Hz |
Power | 2400W |
Packing speed | 40-60 boxes/min |
Box size: | (80-300)*(50-200)*(15-120)mm |
Glue capacity | 2kg |
Transport form | Conveyor belt drive on both sides |
Weight | 260kg |
Dimension | 1500*850*1500mm |
How to adjust the machine, please see the video
About packing
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
