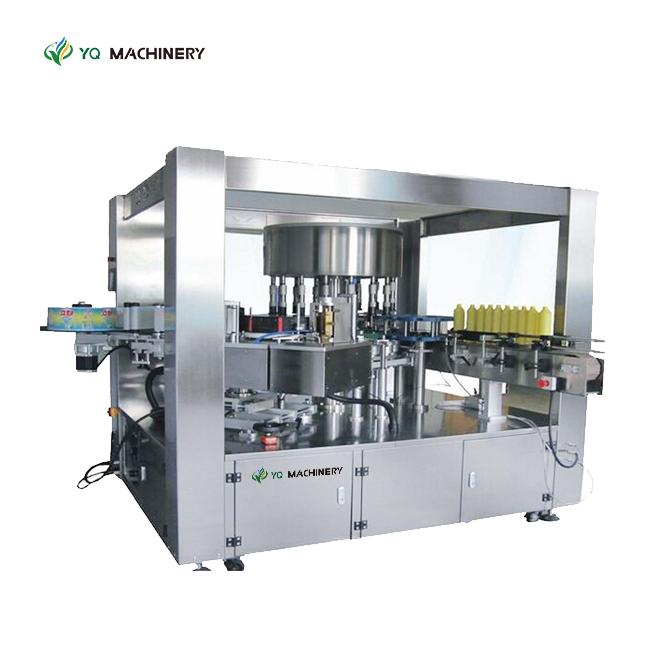

YQL-H
YQ
Main technical parameters:
Power supply | Three-phase 380V 50 Hz 8000W |
Machine dimensions: | 3000mm×2500mm(can be adjusted by customer requirements) |
Method of speed adjustment: | uninterrupted - adjust rate |
Max speed of labels feed: | maximum speed of 100 meters labels / min |
Labeling precision: | ±1mm |
Maximum label width | 200mm(standard width, can be adjusted ) |
The maximum outer diameter of label | 600mm |
Paper core Hot melt | 152 mm |
Labeling glue | glue at both ends of each label with hot melt |
Gluing temperature | 120~160℃ |
Type of label | opp label,paper-plastic composite film label ,paper label |
Labeling type for products | suitable for round or square containers made of plastic, metal, glass |
Machine weight | about 2000 kg |
Work flow:
Bottles distributing---Correcting---Pressing---Labeling---Reinforcing---Finish
1. Fix the label roll on the machine according to the graphical representation, adjust the height of each part.
2. Check if all the position of the labels are correct.
3. Adjust the distance between the two rails, the distance between the brush and the conveyer, make sure the distance is suitable for the product to pass.
4. Turn on the power switch, turn on the optoelectronic switch.
5. Turn on switch of the motor and label sending device, debug labeling, if there are any abnormal, get rid of them.
6. Adjust the labeling position.
7. Ensure the test is OK, then operating the machine normally.
8. Power off.
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
