Inroduction:

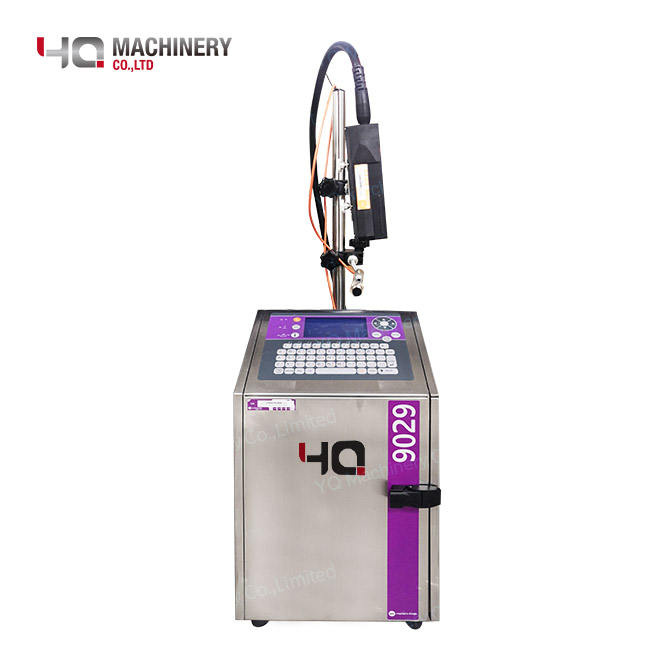

Markem-Imaje inkjet printer is a small character inkjet printer optimized for small and medium production applications.
Characteristics:
1. Jet speed control precise ink point control technology;
2. Automatic nozzle cleaning system;
3. Rich interfaces: USB port, RS-232 interface, and Ethernet connection (optional);
4. M6' integrated ink pipeline module;
5. WYSIWYG user interface, built-in on-screen operation guide;
6. Advanced consumables management system;
7. All stainless steel case, IP55 protection level
Advantage:
1. Stable and reliable:
Inherit the tried-and-tested industrial design and adopt a brand-new M6 module to achieve 6000 hours of uninterrupted operation without additional maintenance.
2. Flexible and convenient:
Brings a series of convenient designs and options for installation, configuration, and printing, and can calmly cope with all kinds of coding operations.
3. Efficient use:
Markem-Imaje inkjet printers start from multiple aspects of interaction, software and hardware to improve user uptime and optimize use cost control.
Coding Features:

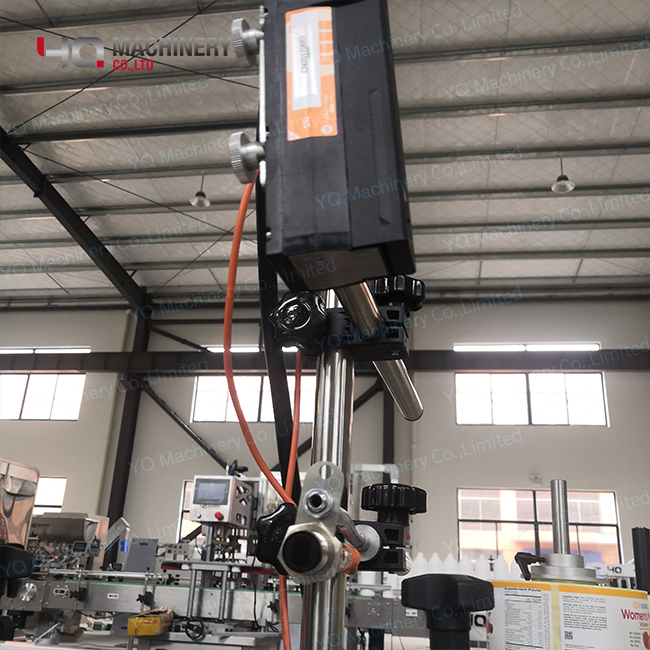

1. Single nozzle print head
2. G print head (printing resolution: 71 dpi)
3.Up to 4 lines can be printed
4.Printing speed: up to 4.4 m/s
5. Font height: 5 points to 24 points
6. Character height: 1.8 mm to 8.7 mm
7. Multiple languages to choose from (Latin, Arabic, Ancient Cyrillic, Greek, Japanese, Chinese, Hebrew, Korean, etc...)
Other Features:
Weight: 18.5 kg
2m flexible hose
Stainless steel case
Dust/waterproof protection grade: IP55
No need to use compressed air
Operating temperature range: 0° to 40° C, depending on the ink used
Humidity: 10% to 90%, non-condensing
Power supply: 100-120 V or 200-240 V, automatic conversion; frequency: 50/60 Hz; power: 34 W
Operating
1.Information database (up to 100 messages can be stored)
2.International operation/machine interface (31 optional languages)

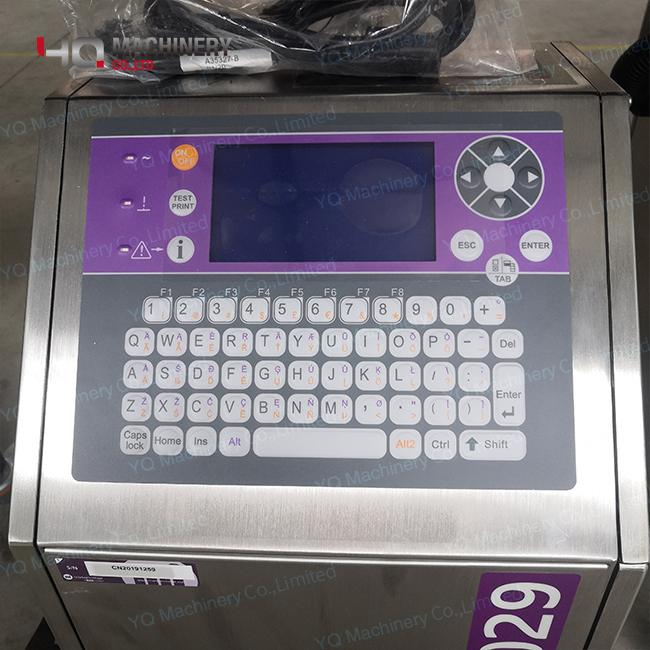

3.WYSIWYG backlit blue large screen display
4.Built-in help menu: operation tips and fault diagnosis
5.Logo can be created directly on the operation interface
6.USB port
7.M6’ ink line
8.Jet Speed Control precise ink point control technology
9.Automatic font selection based on printing speed and printing distance
10. Optional inks of different systems: quick-drying acetone-free ink or ketone-based ink, alcohol-based ink, sterilization ink, etc.
11.0.8L specification smart ink tank
12.All kinds of quick-connect sockets, convenient to connect sensors, synchronizers, alarm lights and other accessories
13.RS-232 connection option
14.One-dimensional and two-dimensional barcodes (Datamatrix)
15.Ethernet connection
16.Positive pressure protection of print head (need compressed gas)
17.Autonomous pressurizing device (no need for compressed gas)
18.3m flexible hose
Accessories:
Printer base: stand (stainless steel or aluminum), workbench or wall bracket
Stainless steel nozzle protection cover
photoelectric sensor
Synchronizer
Warning light (24V)
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
