A. bottle sorting machine
Working Principle:

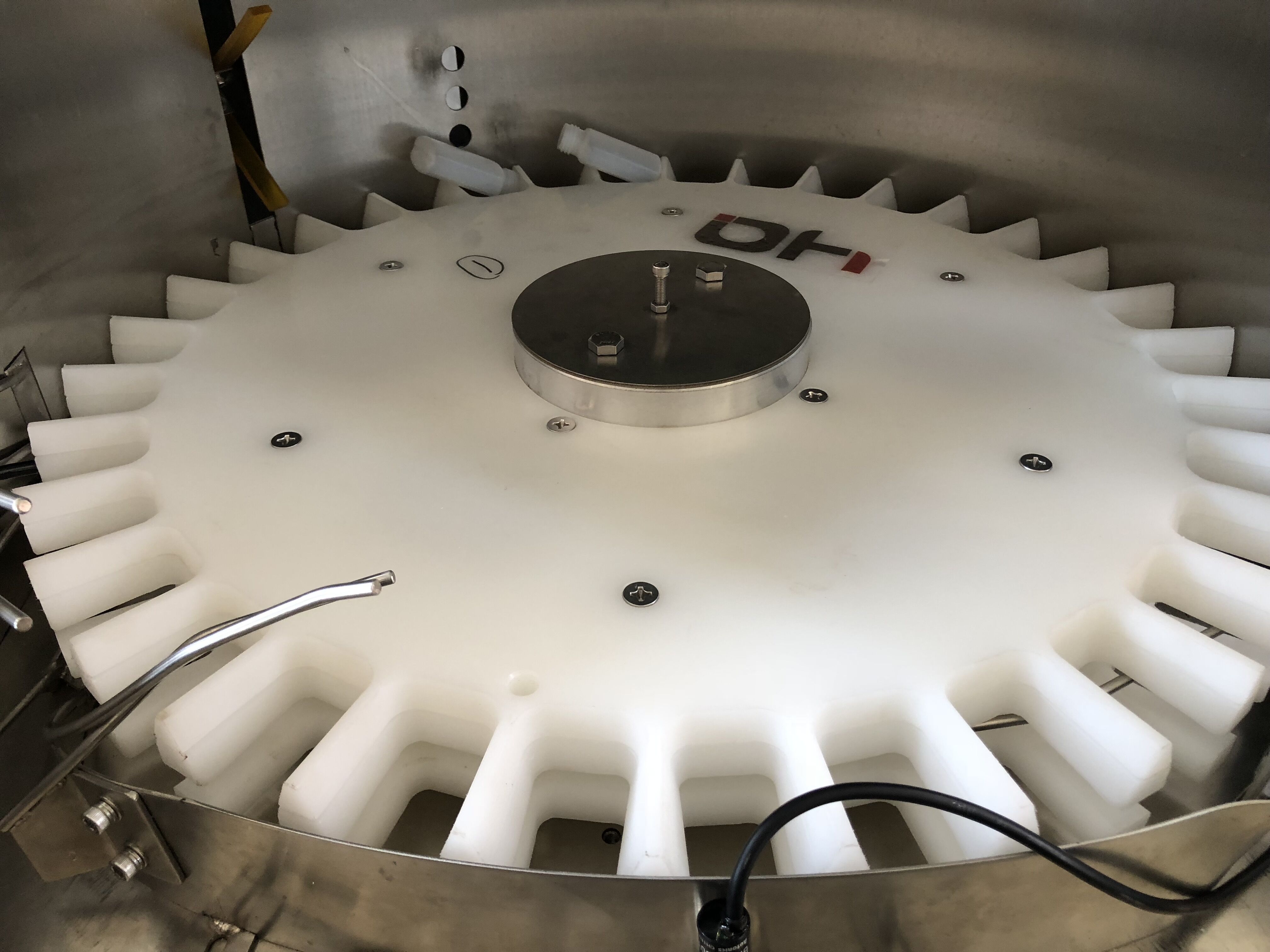

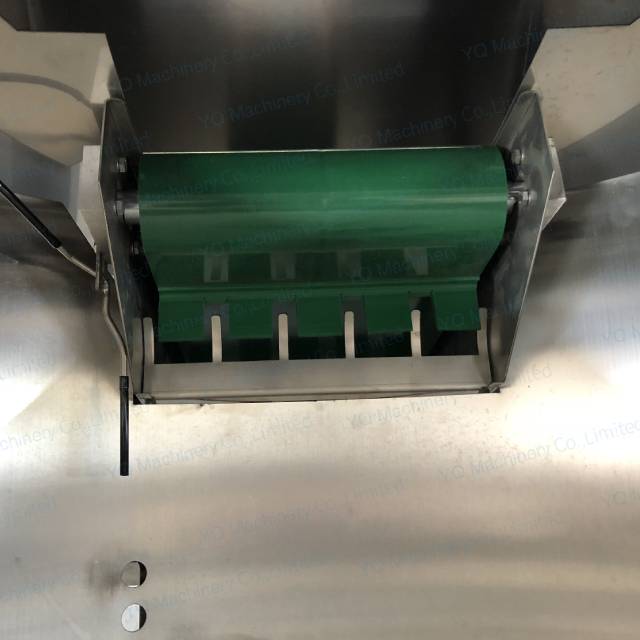

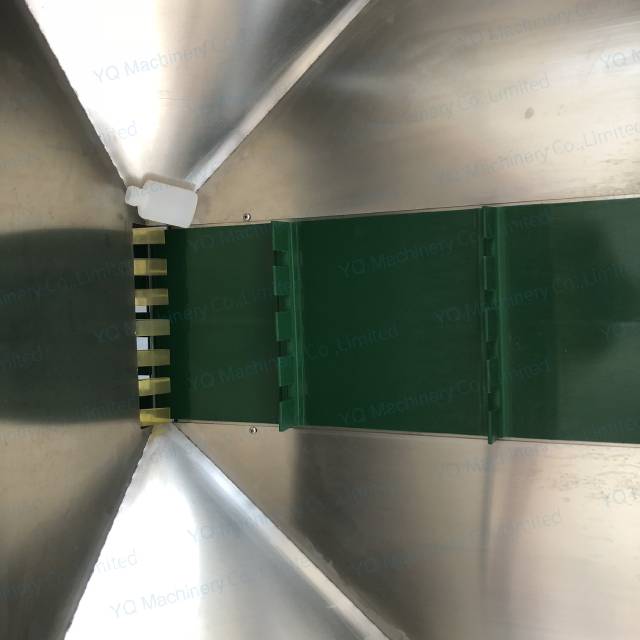

Containers are randomly dumped into the supply hopper. They are gently elevated and deposited into the rotary star wheel. As the star wheel turns, the containers are single drop into the hole and then orients containers to an upright position directly onto the conveyor.
Advantage:
1. Bottle sorting machines effectively automate packaging production lines affording increased efficiency, savings and productivity. Savings are realized through effective use of personnel and associated costs over manual/semi-automatic unscrambler operations.
2. Bottle sorters are designed for quick changeovers (accomplished in a few minutes) and durability resulting in less downtime.
Detailed Image
Technical Parameter:
Production speed | 30-120bottles/min |
Voltage | AC220 single phase /50Hz |
Power | 0.3kw |
Weight | 220kg |
Machine dimension | 1800*850*1000MM |
B. Flat Bottle Filling and Place Screw Capping Machines
1) Inline Filling Systems
Introduction:
YQ machinery manufactures a variety of liquid filling machines such as Inline filling systems. Such systems are capable of filling almost any product into an assortment of bottle types.YQ Inline filling systems use the latest technologies to achieve the highest speeds and most accurately filled bottles in the packaging industry.
Feature of bottle filling equipment:
1.This piston filler is suitable for the filling of different containers. The different containers can be switched within a few mins, the filling cycle is short and the production capacity is high. The replacement of different container does not need to add spare parts, it can be completed only by adjustment. Users can choose the filling machinery according to their own production capacity to determine the number of filling heads. Touch panel can display production status, operating procedures, filling methods, etc. , The screen is intuitive, easy to operate and easy to maintain. Each filling head is equipped with a bottle mouth setting to ensure accurate filling of the material.
2. The design adopts linear feeding and discharging methods to expand the filling function. Containers of various shapes can be effectively filled in this equipment. The international advanced gas filling valve is selected to ensure that the filling process has no drips and salivation. The powerful PLC software support can realize the ideal filling operation. Interface, all operations are completed on the touch color screen.
3. The measurement of each filling head can be adjusted individually to achieve consistent filling measurement. The filling system has set up the bottle feeding technology program. No bottle, not enough, no filling. Only when the number of bottles reach to set amount by the counter, can the filling be started. The filling volume can be adjusted initially to the required filling volume and then fine-tuned to obtain the ideal filling measurement accuracy.
Note: The filling volume and capacity can be designed with different filling heads according to user requirements.
Technical Parameter
Type | Heads | Suitable bottles | Capacity (bottle/hour) | Precise | Size(mm) | Power (kW) | Power source | Air source |
---|---|---|---|---|---|---|---|---|
YQLF-Z12D | 12 | height: 100-280mm diameter: Φ30-110mm | 200ml:≤5000 | ≤1000ml: ±2ml 100-500ml: ±1ml ≤100ml:≤1ml | 2000*1100*2200 | 2.0Kw | 220/380V 50/60HZ | 0.6MPa |
YQLF-Z8D | 8 | 200ml:≤3500 | 1800*1100*2200 | 2.0Kw | ||||
YQLF-Z6D | 6 | 200ml:≤3000 | 1600*1100*2200 | 1.5Kw |
2) Pick And Place Screw Capping Machine
Introduction:
Pick and Place Screw Capping Machine is versatile, self-supported on stainless steel leg with height adjustment system. The machine is precision built on sturdy welded stainless steel Frame structure.
The container moving on conveyor belt are fed to star wheel, bringing the container below sealing head in indexing manner. Meanwhile the rotating head picks up cap from the cap star wheel which is received from delivery chute of cap feeding bowl, where the body and neck are positioned below the rotating head where the sealing head is performing perfect sealing operation. The rotating head is designed to seal container according to pre-set magnetic torque.
Features:
PLC Controls.
Motorized Height Adjustments.
Acrylic cabinet.
Safety Guard for Operation and Protection.(option)
Specially designed hopper is to increase storage capacity of bowl.
Cap Elevator for Auto loading of Cap in Cap Feeder / Bowl(option)
All contract parts are made of Stainless Steel
Technical Parameter
Power supply | AC220V / 50Hz |
Power | 1500 W |
Cap Diameter | 10~100mm |
Capping speed | 20-30 bottles/min |
Suitable bottle height | 50~280mm |
Air sauce pressure | 0.6-0.8MPa |
Net Weight | 500kg |
Package size | 1800*1000*1600mm |

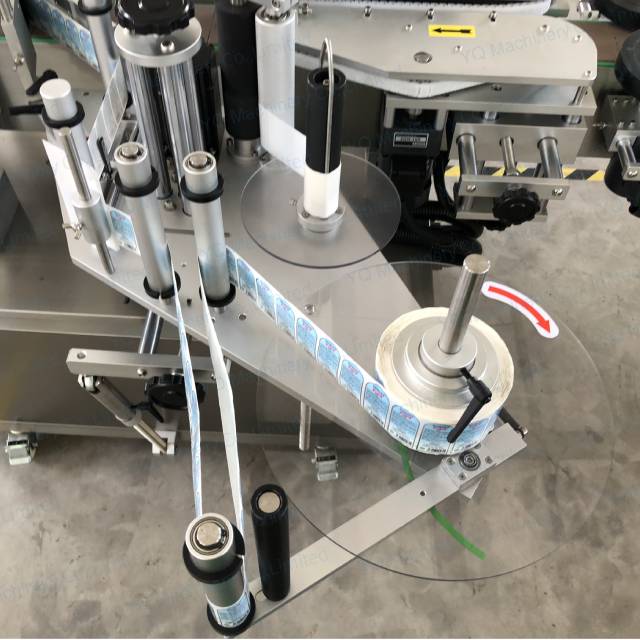

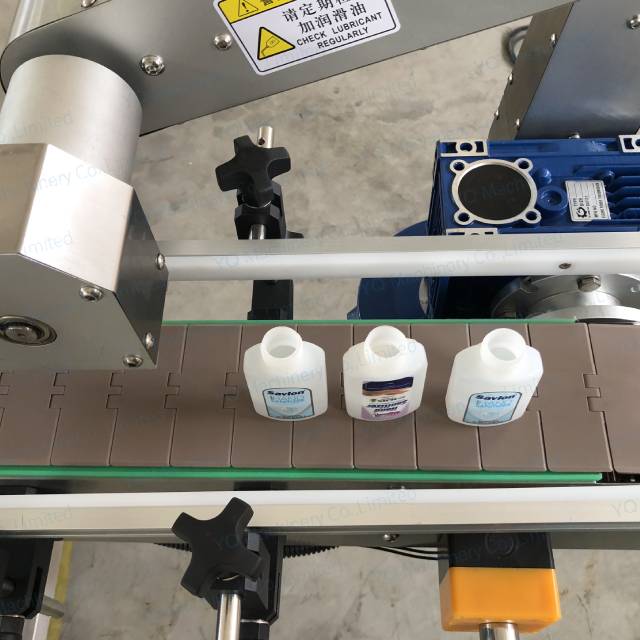

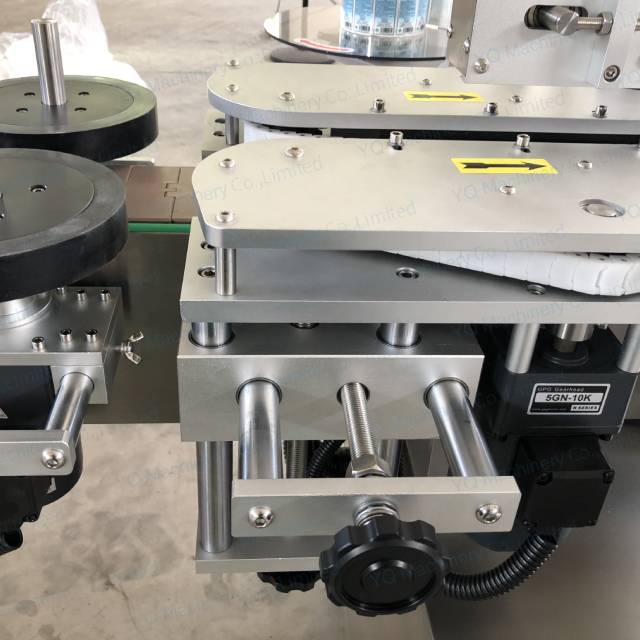

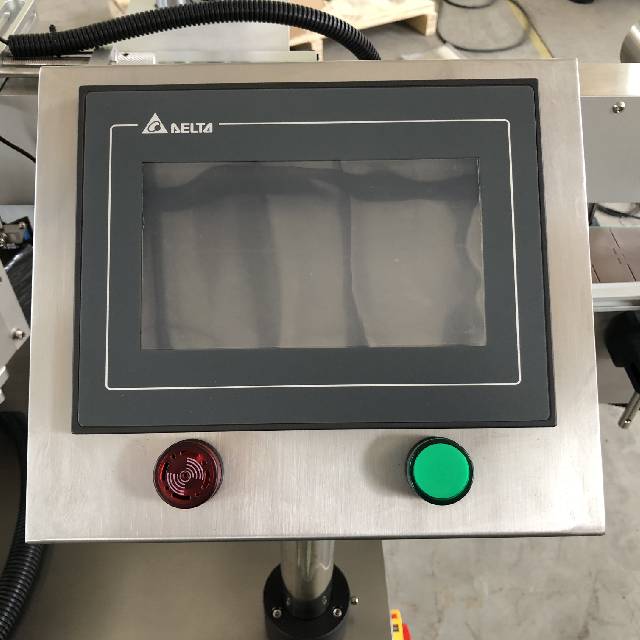

D.Front And Back Labeling Machine
Advantage:
1. Front and back labeling machine is suitable for various one side or two side labeling system. The labeler design is for customers to change different container fast and easily to increase production efficiently.
2. Front and Back labeler can provide more optional and extend functions to increase the quality control in production line and also production performance.
3. The label applicator also can attach custom mechanism for wider range,such as inkjet printer,ribbon coder,wrap around label function etc.
Features:
1. Containers sensor is adjustable, most convenient for various bottle application. Position setting time also enable the label to be placed in certain area of the bottle.
2. The labeler is hard-wearing, durable, stable and operate very smoothly. It provide the best stability for perfect labeling effect
3. The mobility castor is convenient for moving the labeler to support another production line. Therefore, it has good mobility and great investing benefit.

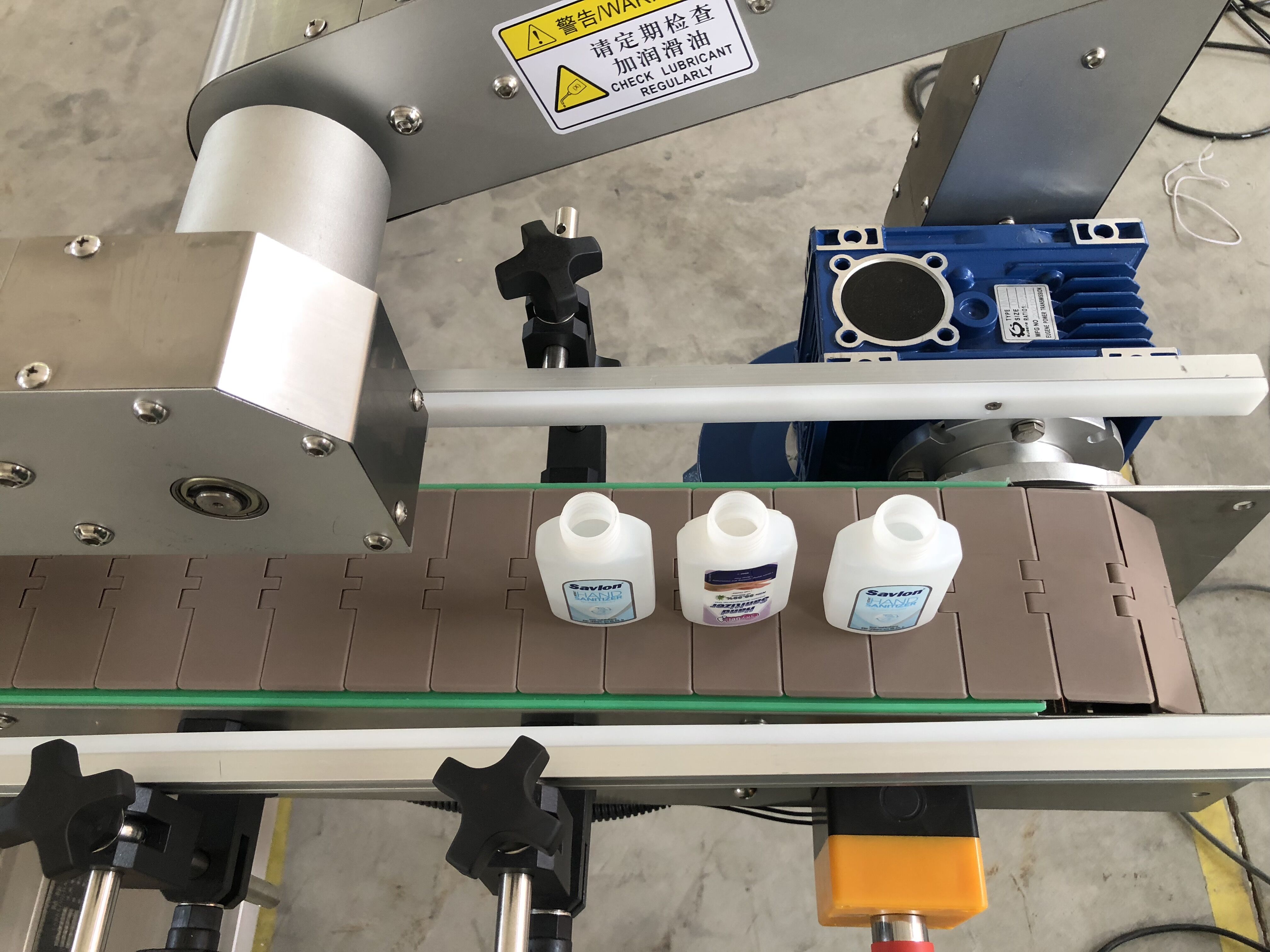

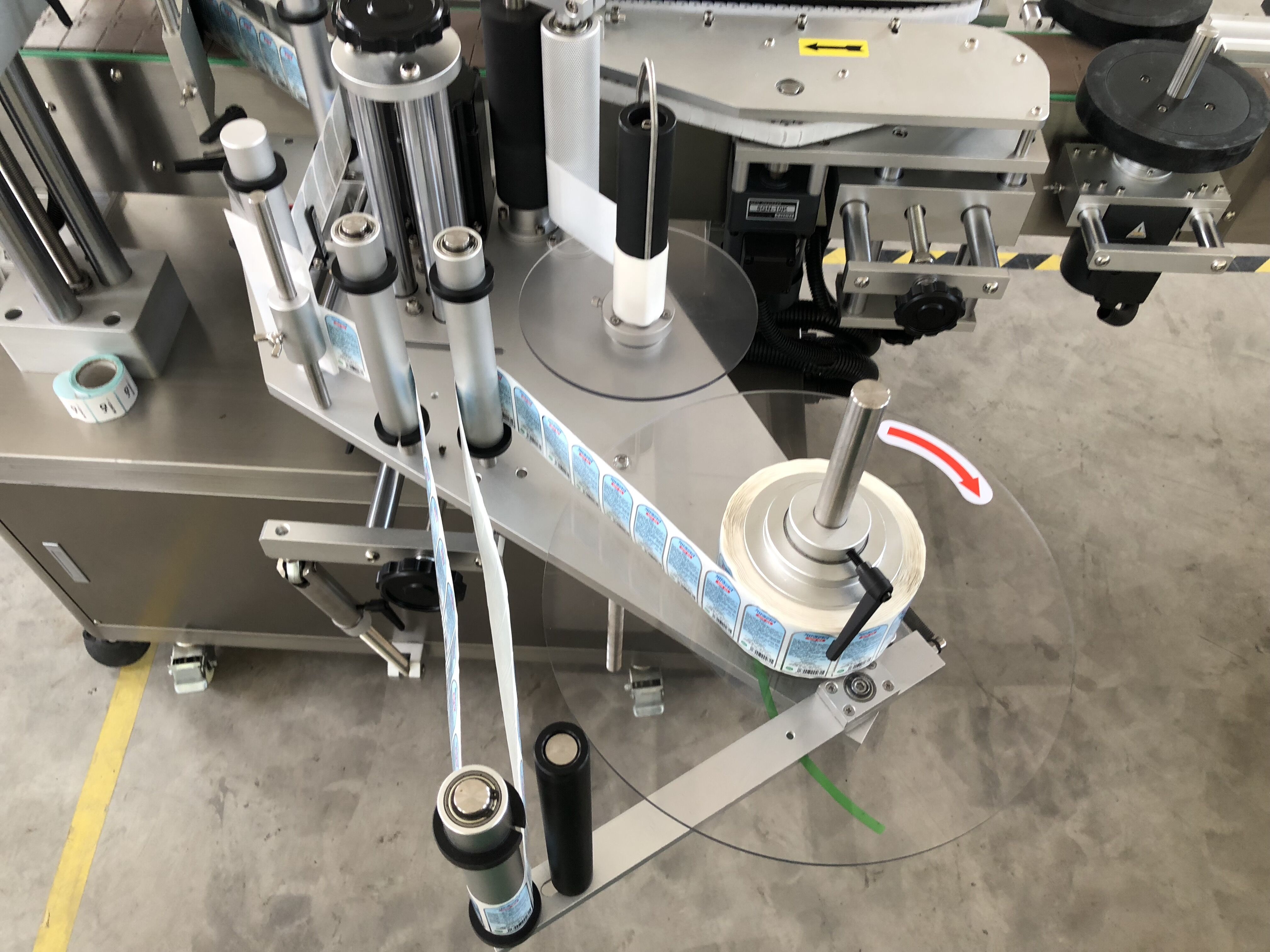

Detailed Image
Technical Parameter:
Power supply | AC 220V; 50Hz(can be customized) |
Power | 2.5 kW |
Labeling speed | 30-80 bottle/min |
Inner diameter of paper roll | 75mm |
Max outer diameter of paper roll | 350mm |
Standard label height | 0 ~ 130mm |
Maximum label height | 200mm |
Weight | 750 Kg |
Machine dimension | ( L × W × H ) 2600mm x 1200mm x 1600mm |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
