YQLF-200G
YQ

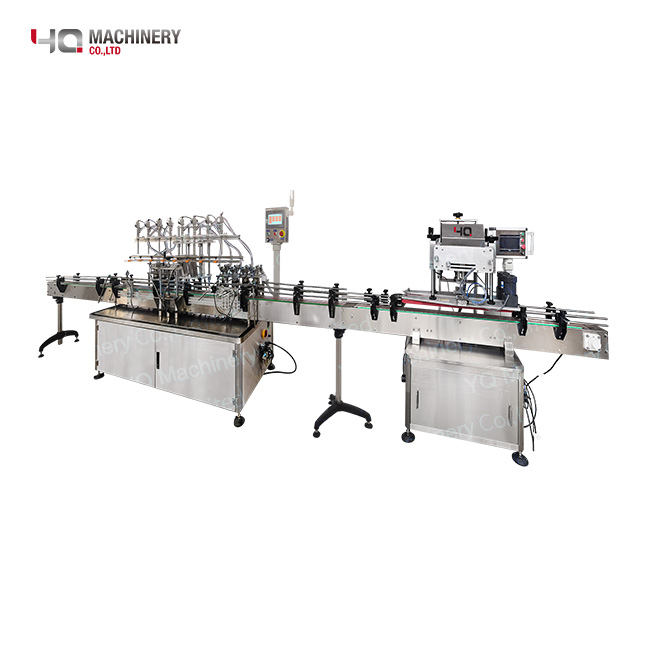

Bottle Filling Machine
Applications of liquid dispensing machine
• Mainly used in the pharmaceutical industry, food industry, cosmetics, agriculture, etc., such as vegetable beverages, motor oil, hand sanitizer, shampoo and other liquid or paste filling; no hard particles and filaments are required in the liquid or paste.
Features of bottle filling and capping machine
1.Using the principle of gear pump, the metering and speed are controlled by PLC, filling the liquid or paste into the container, the metering is accurate, suitable for various liquids;
2.Using the man-machine interface touch screen, the parameters can be set arbitrarily, concise and clear, and the production parameters and running status can be monitored in real time;
3.Each pump can be controlled independently, and the filling volume and speed can be set independently and conveniently;
4.Two filling speeds can be set for each filling, fast first and then slow to eliminate foam generated during filling;
5.Can store 20 sets of product data to facilitate customers to adjust the filling specifications and output at any time;
6. The pump body is delicately designed without tools, which is convenient for disassembly and cleaning.
7. Can be used with conveyor belt connection, one conveyor belt can be connected and filled by different machines
Optional of gear pump filling machine
1. Pump body: corrosion resistance, high temperature resistance (0-100℃), suitable for viscous liquid
2. Pipe: Teflon corrosion-resistant pipe

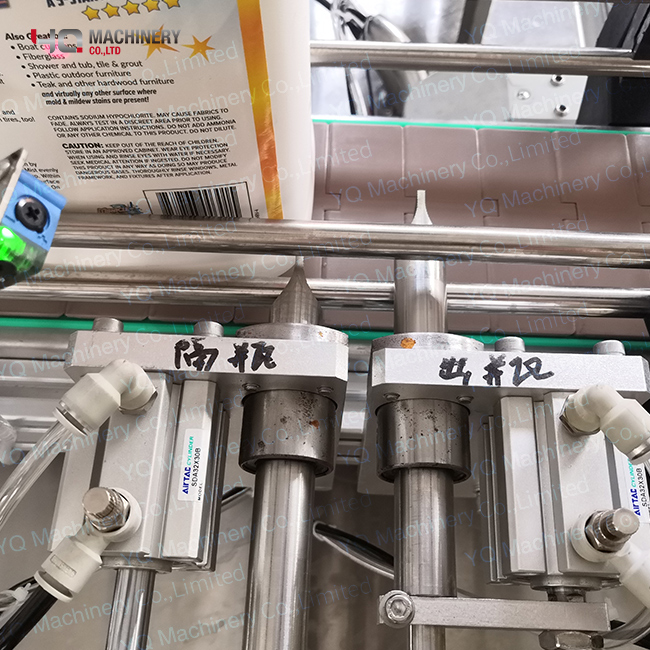

Product specification of inline filler
Product model | YQLF-200G |
Pump type | gear pump |
Pump body material | stainless steel 304 (optional: stainless steel 316) |
Nozzle type | 8,12,14,16,18etc(according to bottle mouth) |
Number of nozzles | 2,4,6 |
Filling capacity | 10ml-11000ml |
Filling speed | 75ml 100 P/min,300ml 24P/min,1000ml 16P/min |
Filling accuracy | ±0.5-1.0% |
Power supply | AC220V; 50Hz; 1P; 3.8KW |
Machine size | 2400x1200x1500mm |
Machine net weight | 800kg |
Control mode | touch screen |

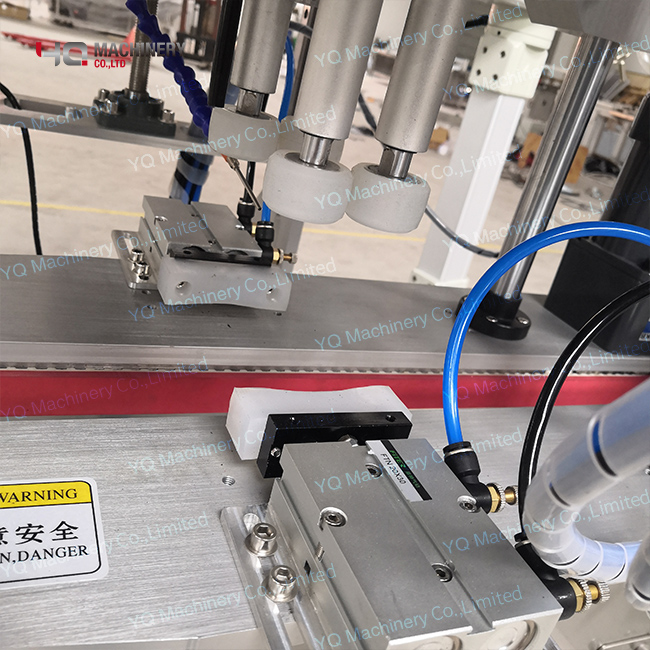

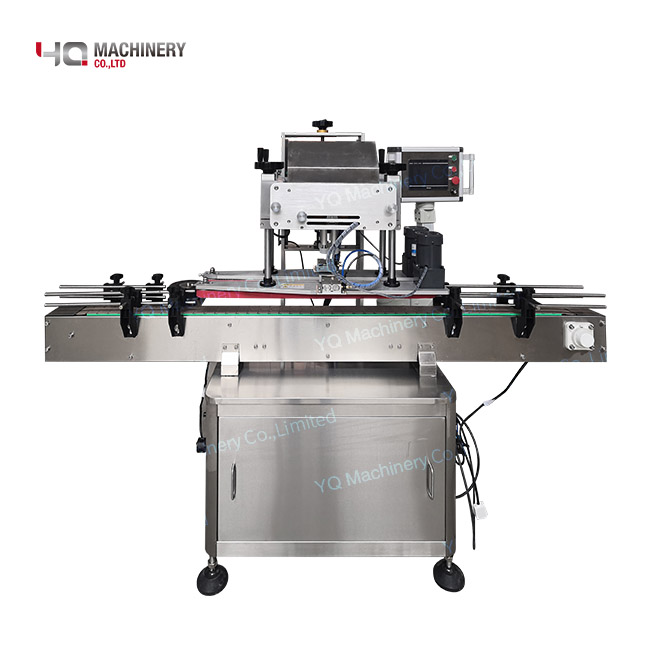

Bottle Cap Closing Machine
Introduction of trigger sprayer capper:
The automatic capping equipment is designed with reference to the advanced international models, with high capping speed, high pass rate and easy operation. Applicable to different bottle and shaped screw caps in food, pharmaceutical, daily chemical, pesticide, cosmetics and other industries. The bottle cap closure machine has a high degree of automation, good stability and easy adjustment. No spare parts are required when changing the bottle shape or cap.
Principle of pump capping machine:
1.Electrically controlled movement, strong stability;
2.Equipped with positioning device, standard screw cap, easy to operate;
3.Wide range of cap can be used such as mist spray cap,trigger pump head, flip top cap and so on.
4.The speed of lid sealing is adjustable, and the tightness can be adjusted according to different bottle caps.
Features of cap closing machine:
1.Stainless steel material frame and never rust
2. The bottle screwing machine has good compatibility and can be used for various bottle caps. And the operation is simple.
3. Excellent flexibility, can be adjusted according to the height of the bottle and the size of cap, and the elasticity can be adjusted according to customer requirements.

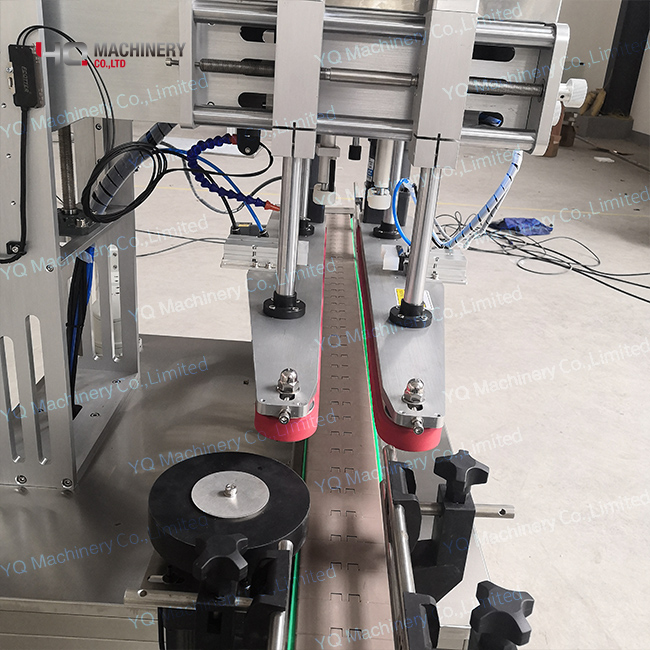

4. The rubbing cap wheel is made of wear-resistant silicone, which does not hurt the bottle cap.
5. The duckbill cap (pump head, spray head, etc.) is more advantageous, and the direction of the mouth head is uniform.
6. Equipped with lid pressing function(option)
7, can be used in the filling production line.
Technical parameter of bottle cap tightener:
Model | YQC-4 |
Power supply voltage (V / Hz) | AC 220/50 110/60 (can be customized) |
Power (W) | 1500 |
Sealing height (mm) | 38-300 (customizable) |
Adapt to cover diameter (mm) | 15-17 (can be customized) |
Adapt to bottle diameter (mm) | 35-140 (can be customized) |
Working pressure (mpa) | 0.3-0.5 |
Output (bottle / min) | 30-50 |
Dimensions (L × W × H) (mm) | 2000X800X1600 |
Net weight (kg) | 250 |
How to adjust gear filling machine
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system:
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
