YQTB-120
YQ
Introduction:

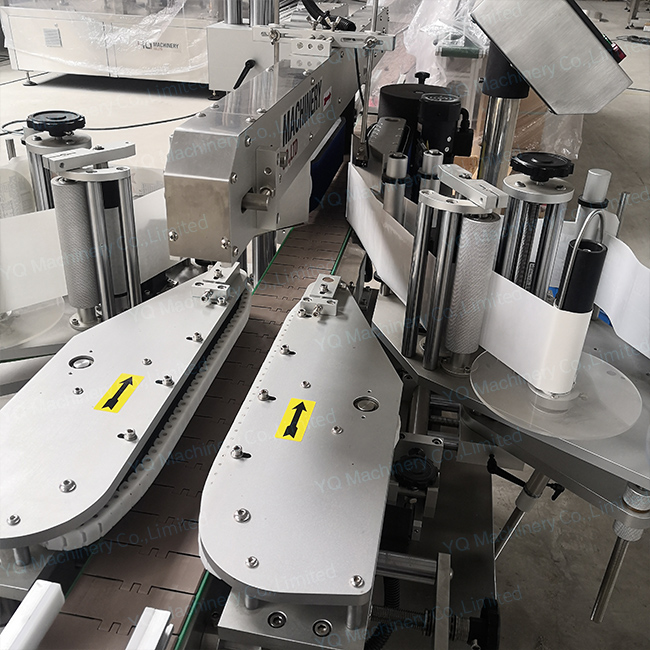

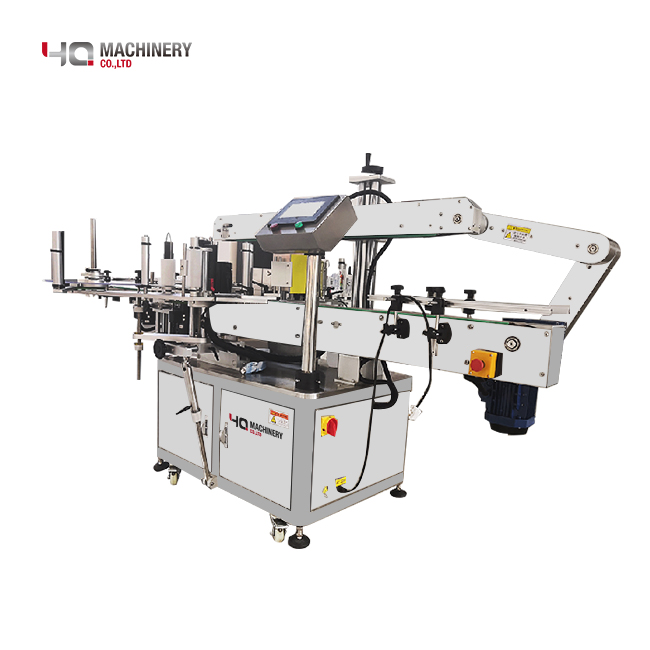

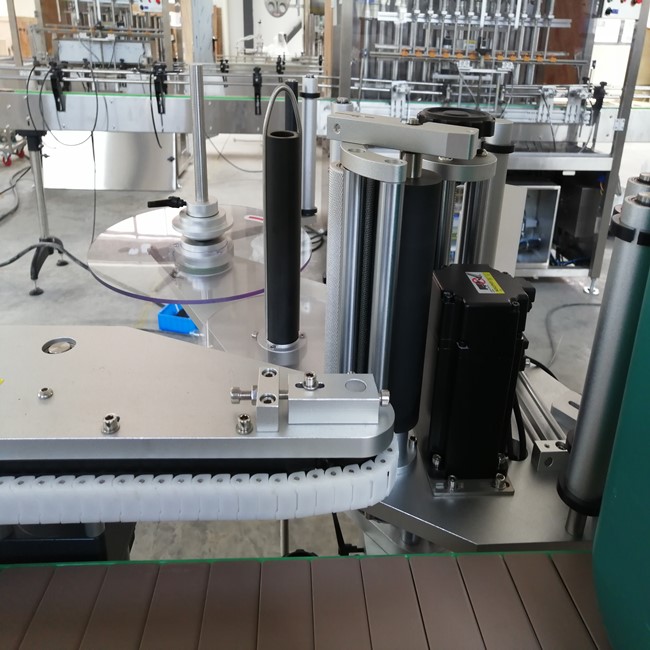

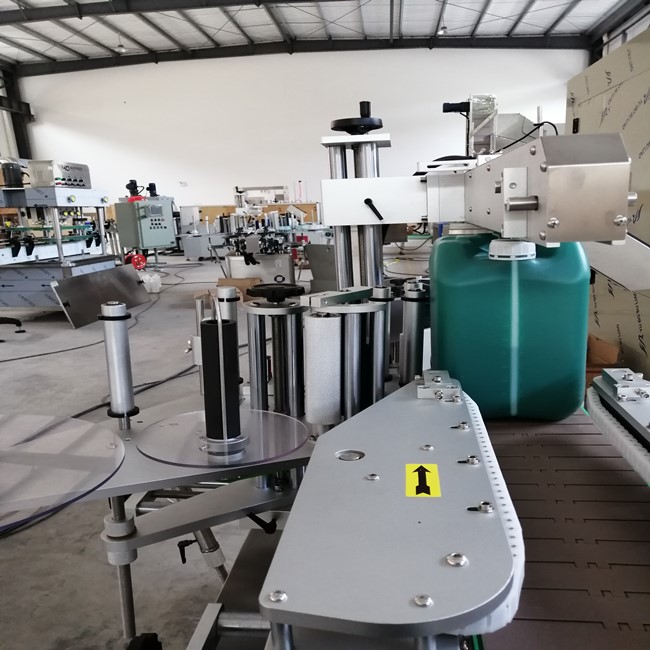

Automatic labeling machine puts spot labels on the front and back sides of round, square, rectangular or oval containers.
Feature:
A.Simple, Fast, Accurate, and Repeatable Changeovers
B.Product Range Flexibility
Advantage:
1. The front and back automatic labeling machine is suitable for various one side or two side labeling system. The labeler design is for user to change different product fast and easily to increase production performance.
2. The front and back automatic labeling machine also provide more optional and extend functions to increase your management and quality control in production line and also production efficiently.
3. The front and back automatic labeling machine is not only suitable for various one side or two side labeling, this labeler also can attach custom mechanism for wider range labeling functions. Let our labeler design team know your request and we will satisfy your need.
Main technical parameters:
Power supply | AC 220V; 50Hz(can be customized) |
Power | 2.5 kW |
Labeling speed | 30-80 bottle/min |
Inner diameter of paper roll | 75mm |
Max outer diameter of paper roll | 350mm |
Standard label height | 0 ~ 130mm |
Maximum label height | 200mm |
Weight | 750 Kg |
Machine dimension | ( L × W × H ) 2600mm x 1200mm x 1600mm |
Work flow:
Bottles distributing---Correcting---Pressing---Labeling---Reinforcing---Finish

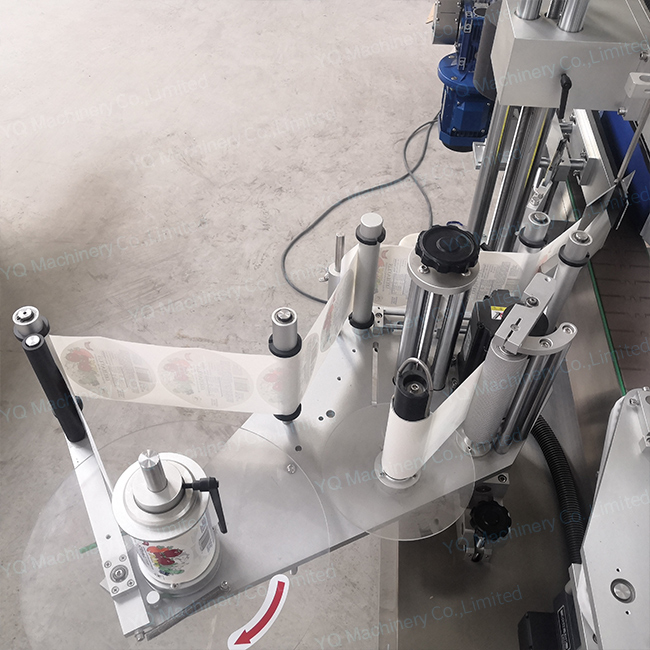

1. Fix the label roll on the machine according to the graphical representation, adjust the height of each part.
2. Check if all the position of the labels are correct.

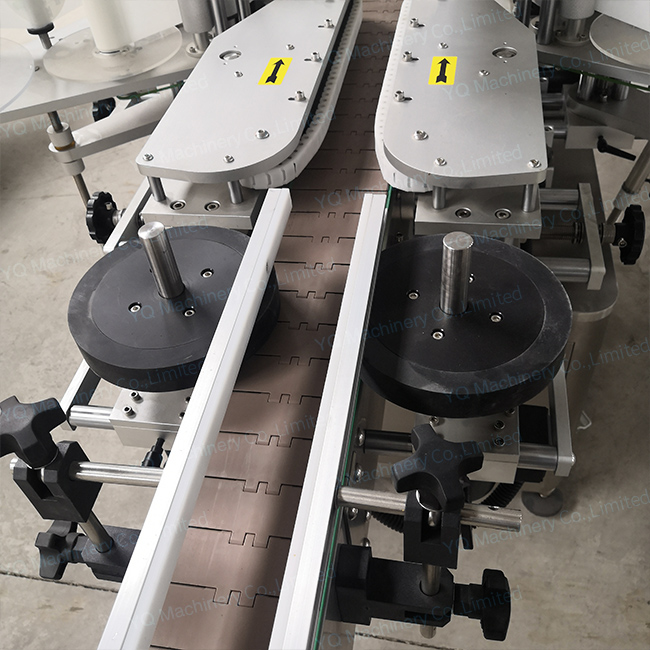

3. Adjust the distance between the two rails, the distance between the brush and the conveyer, make sure the distance is suitable for the product to pass.

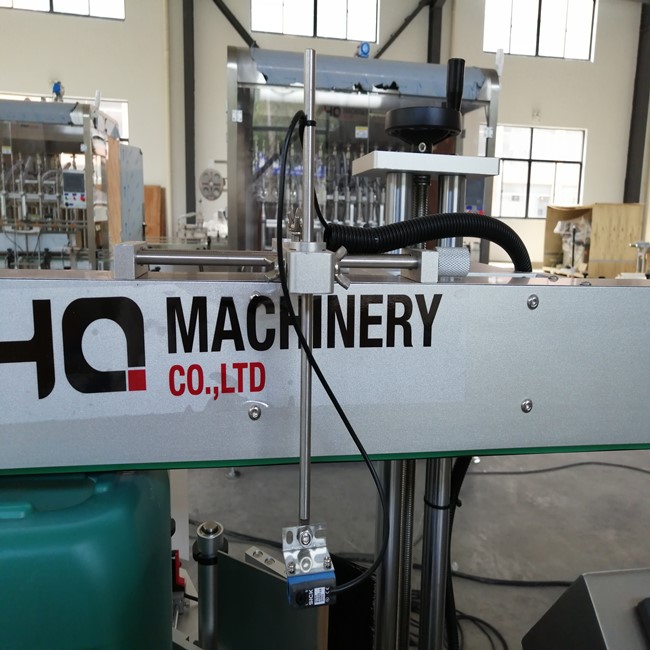

4. Turn on the power switch, turn on the optoelectronic switch.
5. Turn on switch of the motor and label sending device, debug labeling, if there are any abnormal, get rid of them.
6. Adjust the labeling position.
7. Ensure the test is OK, then operating the machine normally.
8. Power off.
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
