Korean customer placed an order for shrink steam tunnel with generator

Views: 185     Author: YQ MACHINERY CO.,LIMITED     Publish Time: 2017-02-02      Origin: TRACY

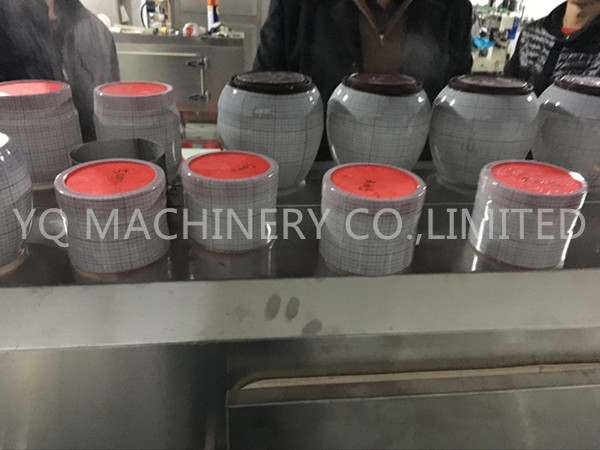

Steam tunnel with stam generator was bought one of our customers from Korea.It is used to shrink several sizes of jars.The jars are used to fill pickle.

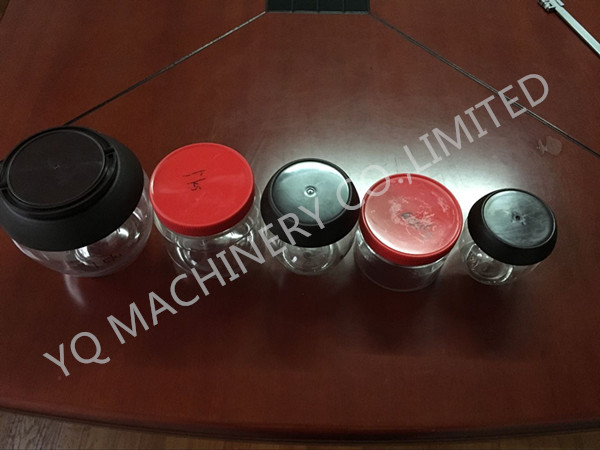

The samples is pretty big and the shrink tunnel is customized according to the size.

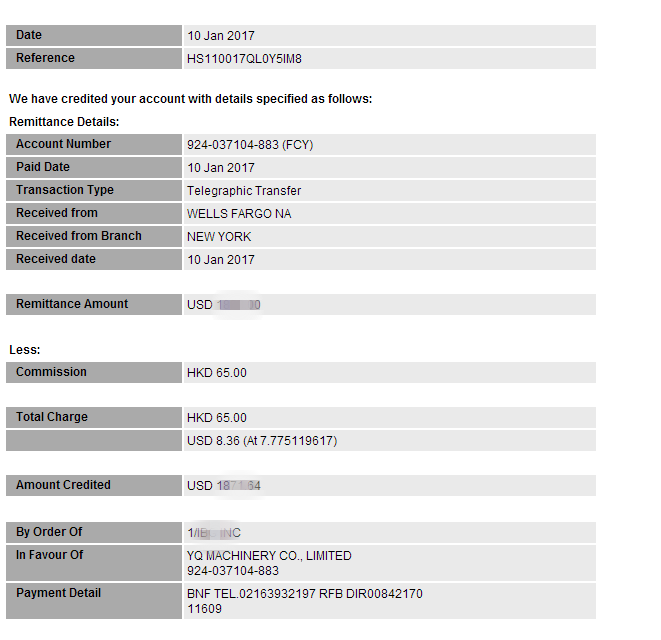

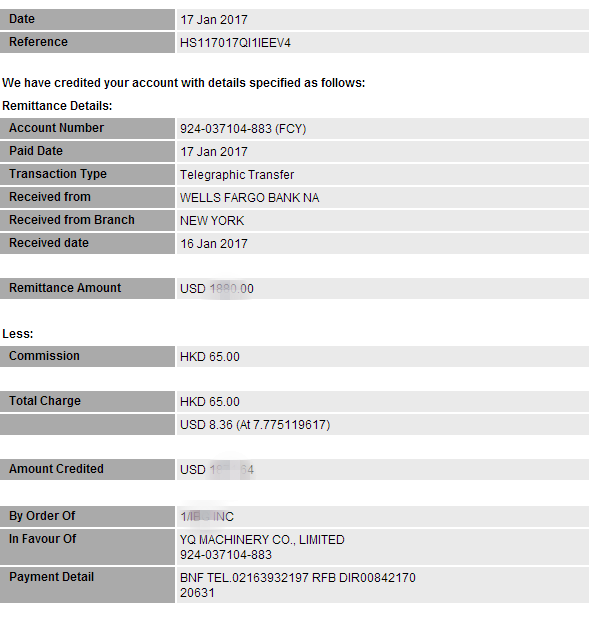

Here is bank receipt for your reference:

韩国定金50% 1900美金_副本.png韩国余款_副本.png

More detials of steam shrink tunnel and generator listed for your reference:

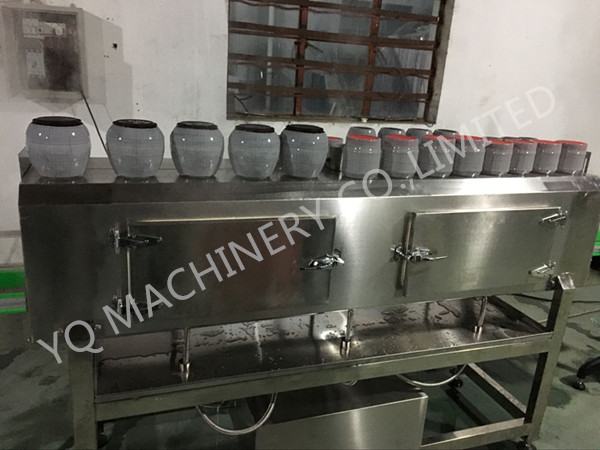

Steam Shrink Tunnel

1.In the case of different and irregular round bottles, square bottles and flat bottles etc, the new-style both steam and electricity shrinking oven is easy to adjust and maintain. It has an even shrinking .

2. The distribution of low-pressure steam drum and sqouting way of steam are uniform and designed with seamless tube.

3. The nozzle is divided to be adjustable three segments and the height , position and steam output of every segment can be adjusted respectively so as to gain the perfect shrinking effect.

4 .The whole machine is made of stainless steel with heat preservation, which not only saves energy, but also comply with the international safety standard.

5 .The stainless steel defrosting tray collects condense water.

6. The whole machine adopts the water-proof design with the convenience of easy operation and low maintenance.

Technical Parameters:

Input Power Supply of Blower 3 380VAC  18KW

Input Power Supply of Steam Generator 380V/50HZ

Working Pressure 0.1Mpa

Weight 500kg

Steam Consumption 10-20Kg/h

Size of Oven Body L1800mm×W600mm×H450mm

Transporting Speed 0-35m/min

Stream Generator

The water is fed into the series of wholly automatic electrical heating generator by high pressure potential vortex pump made of copper with short water-supply time and durable service. A floating ball for liquid level is fixed in the water tank to automatically control the water inlet. Working system is all automatically controlled. After connecting the water supply and power supply for 5 minutes or so, it can output the steam continuously with a high level of working efficiency.

Technical Parameters:

Input Power Supply 3 380V

Input Power 18KW

Steam Pressure 0.25-0.4Mpa

Vapor Generation 24kg/h;

External Dimension L600mm x W550mm x H1200mm

Weight 96Kg

The machine has been packed in exported cases and sent to Shanghai port:





Let's work together to open the door for mutual benefit.
YQ Machinery Co. , Ltd. is a sales,production,maintenance in one integrated enterprise.The company has a professional team and technology to ensure high-quality after-sales service.

We mainly produce filling machines, sealing machines, labeling machines, packaging machines, etc. ,The machines performance is stable, easy to operate.Push into the market and well received by customers at home and abroad.With the development of the market, technological innovation, the company with excellent productquality, preferential prices and good aftersales service has won the trust of every customer.

Look forward to working with you!
