YQSP-100
YQ
Introduction:

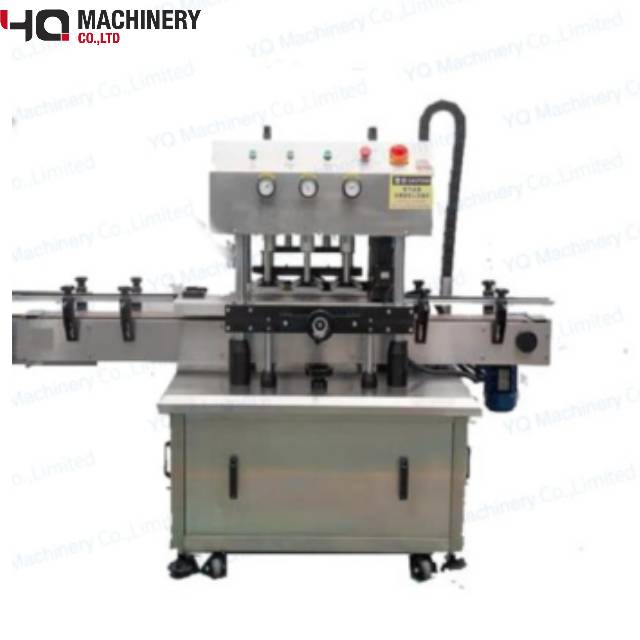

YQ machinery offers Lid Capping Machines in both automatic and semi-automatic models. This bottle cap closing machine uses sets of "spindles" or rubber discs that spin a cap down tightly on threads to seal the container. Inline capping machines use a cap delivery system such as a cap elevator or vibratory bowl, while semi-automatic machines will usually require hand placement of caps before tightening.
Bottle cap closing machine works with a wide variety of screw-on, or continous thread, closures and with an array of bottle types and sizes. These capping machines can also be used with both glass and plastic bottles. Lid cappers can thread flat caps, sports caps, oval caps, trigger sprayers, pumps and many others.
Features:
1.stainless steel construction
2.Cap sorting device - cap elevator/ vibratory bowl/ centrifugal bowl
3.Cap chute
4.Six adjustable tightening spindles (3 sets) with locking knobs
5.Three adjustable spindle clutches
6.Adjustable gripper belts
7.Control box with variable speed DC controls
8.Tool free changeover
Technical Parameter
Power supply | AC220V / 50HZ,60HZ |
Power | 1.5KW |
Cap Diameter | 10-100mm |
Capping speed | 40-150bottles/min |
Suitable bottle height | 50~280mm |
Air sauce pressure | 0.6-0.8MPa |
Net Weight | 650kg |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
Introduction:
YQ machinery offers Lid Capping Machines in both automatic and semi-automatic models. This bottle cap closing machine uses sets of "spindles" or rubber discs that spin a cap down tightly on threads to seal the container. Inline capping machines use a cap delivery system such as a cap elevator or vibratory bowl, while semi-automatic machines will usually require hand placement of caps before tightening.
Bottle cap closing machine works with a wide variety of screw-on, or continous thread, closures and with an array of bottle types and sizes. These capping machines can also be used with both glass and plastic bottles. Lid cappers can thread flat caps, sports caps, oval caps, trigger sprayers, pumps and many others.
Features:
1.stainless steel construction
2.Cap sorting device - cap elevator/ vibratory bowl/ centrifugal bowl
3.Cap chute
4.Six adjustable tightening spindles (3 sets) with locking knobs
5.Three adjustable spindle clutches
6.Adjustable gripper belts
7.Control box with variable speed DC controls
8.Tool free changeover
Technical Parameter
Power supply | AC220V / 50HZ,60HZ |
Power | 1.5KW |
Cap Diameter | 10-100mm |
Capping speed | 40-150bottles/min |
Suitable bottle height | 50~280mm |
Air sauce pressure | 0.6-0.8MPa |
Net Weight | 650kg |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
