Availability: | |
---|---|
Quantity: | |
YQC-L
YQ
Introduction:

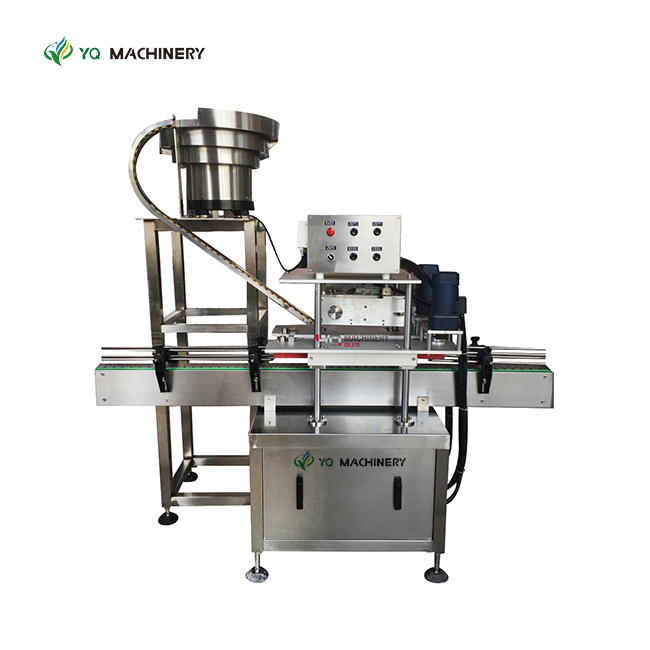

This machine uses straight-line into the bottle, automatic cap, automatic cap, after the cap after correction by the clip bottle belt into the pressure cap system, because the pressure cap flat belt design has slope drop, the cap will be more pressure tight.
The machine structure is simple, easy to adjust, fast, high pass rate, sealing performance is good after the cap, suitable for food, soy sauce, vinegar, vegetable oil and other bottle-type seal seal.
Features
1, the bottle straight into, continuous pressure cover, efficient and fast.
2, slide cover-type release, rotary-type delivery cover, slope drop to achieve the effect of pressure cover, no vibration, no noise.
3, the fault automatic shutdown and coverless automatic shutdown system, more safe.
4, suitable for a variety of specifications of the bottle for automatic pressure cover.
Techbical parameters
Maximum production speed | 6000 bottles /h |
Cap diameter | 15 -80mm |
Gas source | 0.6-0.8mpa |
machine size | 2000x800x1600mm |
Weight | 350Kg |
Suitable bottle diameter | 50 - 110mm |
Suitable bottle height | 150-300mm |
Total power | 0.6Kw |
power supply | 110/220v;50/60hz(can be customized) |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
