Availability: | |
---|---|
Quantity: | |

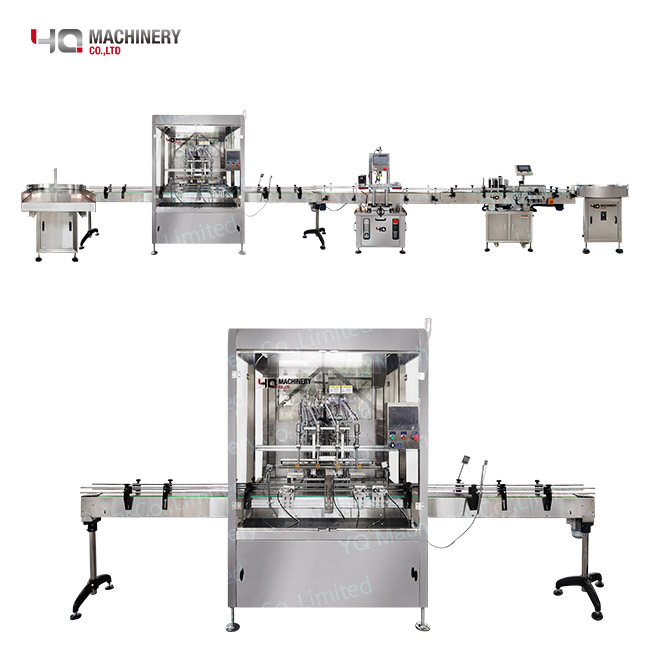

YQGF-1000F
YQ
A.Bottle Feeding Turntable:
Indusry Applications:
Food Industry : honey, fruit jam, butter, olive oil, tomato sauce, peanut butter, chocolate cream
Daliy Chemical:shampoo,body wash,liquid detergent.
Technical Parameters:
Applicable specifications | 10-2000 ml |
Bottle diameter | 10-80 mm |
Bottle height | 85-300 mm |
Production capacity | 30-120 BPM (speed adjustable) |
Voltage | 110v/220v;50hz/60hz |
Power | 0.5 kw |
Weight | 95kg |
Machine size | 1300*1000*1300mm |
Stainless steel | SUS304 material |
B.Bottle Filler
Introduction:
This gel filling machine is a high-tech filling equipment that is programmable by a microcomputer (PLC), photoelectric sensor, and pneumatic execution. This model is specially used for daily chemicals, such as: shampoo, shower gel, hand soap, laundry detergent and other liquid and paste filling. The filling and measuring is accurate, without bubbles and drips. Suitable for filling various bottle types (including guide-shaped bottles) of 100-1000ml
Advantage of linear filling machine
①The use of world-famous brands of electrical appliances and pneumatic components, low failure rate, reliable performance and long service life.
②Adopt high-strength stainless steel frame, easy disassembly and assembly, easy to clean, in line with GMP requirements

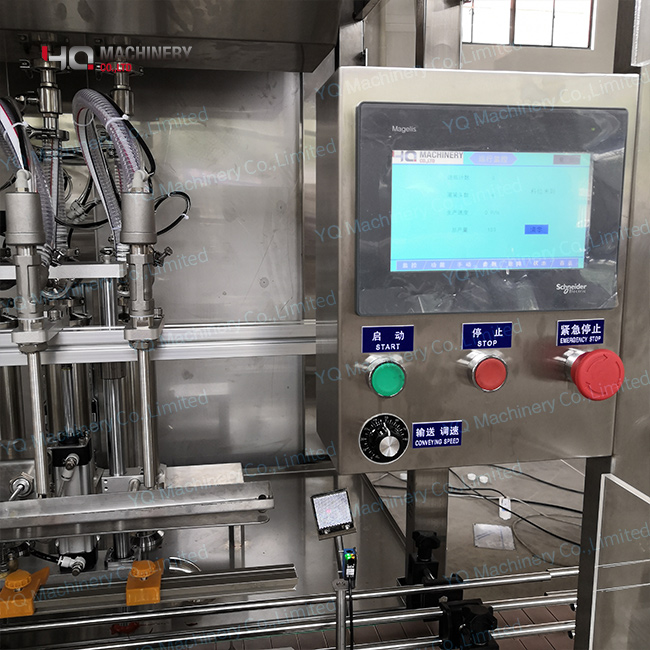

③The filling volume and filling speed are easy to adjust, operated and displayed by the touch screen, with beautiful appearance;
④With no bottle and no filling function, the liquid level automatically controls the feeding;
⑤ You can quickly adjust bottles of different shapes and specifications without replacing parts;
⑥ The filling head is equipped with a special leak-proof device, and the filling is absolutely free of wire drawing and dripping.
With interval filling function | Stainless steel, anti-drip filling head, dive filling |
Equiped with servo motor to adjust filling volume accurately | One button cylinder removal The system setting button can be used to dismantle the cylinder for easy cleaning and replacement |

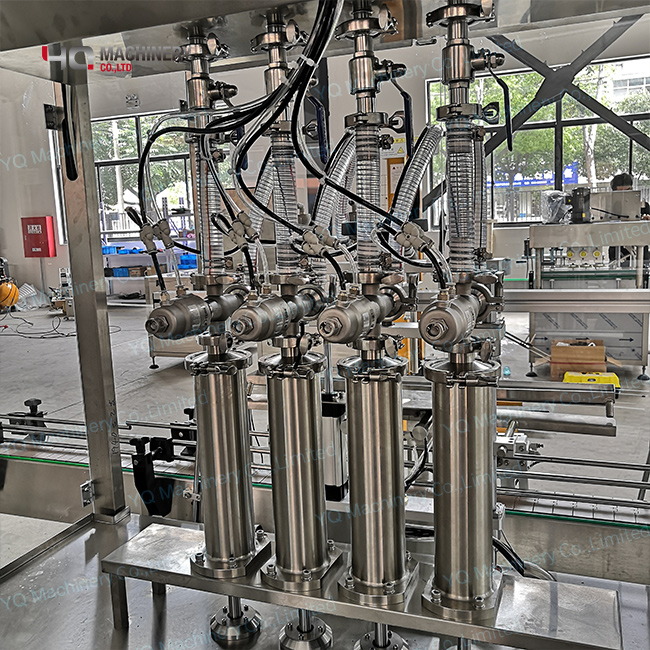

Technical Parameter of piston pump filling machine:
Type | Heads | Suitable bottles | Capacity (bottle/hour) | Precise | Size(mm) | Power (kW) | Power source | Air source |
---|---|---|---|---|---|---|---|---|
YQLF-Z20D | 20 | height: 100-280mm diameter: Φ30-110mm | 200ml:≤7500 | ≤1000ml: ±2ml 100-500ml: ±1ml ≤100ml:≤1ml | 2400*1100*2200 | 2.5Kw | 220/380V 50/60HZ | 0.6MPa |
YQLF-Z16D | 16 | 200ml:≤6500 | 2000*1100*2200 | 2.5Kw | ||||
YQLF-Z12D | 12 | 200ml:≤5000 | 2000*1100*2200 | 2.0Kw | ||||
YQLF-Z8D | 8 | 200ml:≤3500 | 1800*1100*2200 | 2.0Kw | ||||
YQLF-Z6D | 6 | 200ml:≤3000 | 1600*1100*2200 | 1.5Kw |
C.Cap Tightener
Application:
Suitable for all kinds of bottle caps such as spray caps, pump caps, spray pumps,trigger pumps in various daily chemical, pharmaceutical and chemical industries. This automatic capping machine has been used in a wide range. It can adapt to different types and sizes of bottle caps.Also screw different size and type of lid through simple adjustment without replacing parts. It is an ideal bottle capping machine for various round caps, duckbill caps, etc.

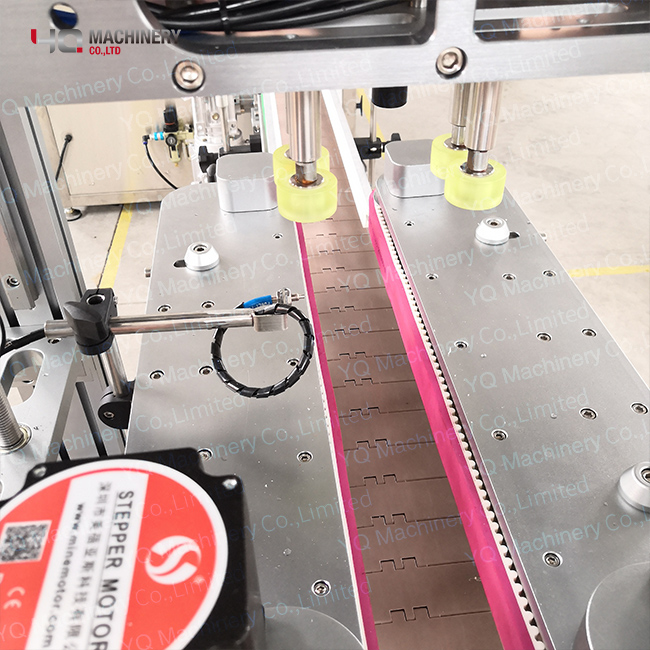

Capping wheels The capping machine adopts silicone material. Will not wear the cap | High-precision photoelectricity, detect bottle accurately | Clamping belt Clamp the bottle and convey it to the capping position to prevent the bottle from being falled down |
Torque adjustment button | Screws adjust the spacing of the capping wheel | Bottle fixed part(optional) Silicone material, will not scratch the bottle body, positioning the bottle body, easy to screw cap |
Technical parameters of lid sealing machine:
Voltage | 220v / 50Hz |
Power | 800W |
Capping range | 5--80mm |
Capping speed | about 25 ~ 50 bottles / minute |
Working pressure | 0.4 ~ 0.6MPa |
Applicable bottleneck | 50 ~ 280mm |
D.Pressure Sensitive Labeling Machine
Basic use of label applicator machine
Applicable to the single-side labeling of round, square, flat bottles and other similar products in medicine, food, daily chemical and other light industries. One machine is versatile, suitable for square bottles, flat bottles and round bottles, which can be used in a single machine or in line.
Labeling Equipment advantages:
1. The whole machine adopts mature PLC control system to make the whole machine run stably and at high speed
2. General-purpose bottle-separating device, no need to change accessories for any bottle shape with any diameter, quick positioning adjustment
3. The operating system adopts touch screen control, easy to operate, practical and high efficiency
4. Double side chain correction device to ensure the alignment of materials
5. Special elastic top pressure equipment to ensure the stability of materials
6. The labeling speed, conveying speed, and bottle splitting speed can be adjusted steplessly, and can be adjusted as needed
Technical Parameters of labeling systems:
Power supply | AC 220V; 50Hz(can be customized) |
Power | 2.5 kW |
Labeling speed | 30-80 bottle/min |
Inner diameter of paper roll | 75mm |
Max outer diameter of paper roll | 350mm |
Standard label height | 0 ~ 130mm |
Maximum label height | 200mm |
Weight | 750 Kg |
Machine dimension | ( L × W × H ) 2600mm x 1200mm x 1600mm |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system:
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
