YQLW
YQ

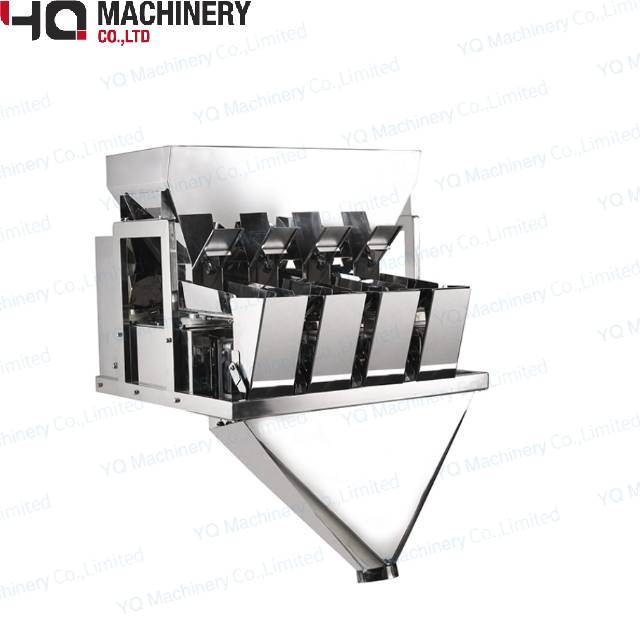

Introduction:
Linear weighers have the advantage of having a hopper that can be hand fed, three different deed rates then fill the weigh bin to the target weight, for accuracy they are ideally suited to smaller free flowing granular products with a low individual piece weight.
We supply different models with up to four weigh bins, the standard software can blend up to four different weight products into a single deposit.
Application:
It is developed for precise and high-speed quantitative weighing packaging system. It is suitable for weighing material of small grain with good uniformity, such as oatmeal, sugar, salt, seeds, rice, sesame, milk powder coffee, etc
Features:
1.Superior product flow: YQ machinery linear weighers excel in handling free-flowing products that have a tendency to "run away."
2.High speed, high accuracy: The two/four weigh hoppers to each weigh head, combined with superior flow control, enables high speeds and high accuracy, leading to reduced giveaway.
3.Gentle handling of fragile products: Product drop distances are kept low to minimise breakage.
4.High performance in a small space: These linear weighers are very compact in design and do not require complex infeed arrangements.
5.Maintainable structure for easy operation: Simple and intuitive user interface and contact parts can be removed without tools for quick cleaning.
YQ MACHINERY also supplies specialist linear weighers for the fresh food industry, e.g. meat and salads where products can be difficult to handle due to their "sticky" nature.

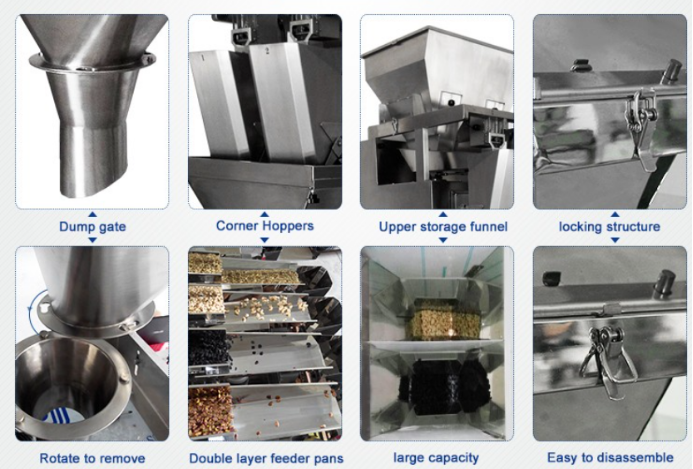

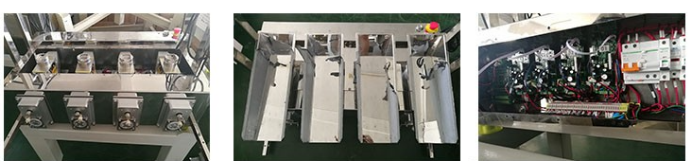

Equipment Structure
Technical Parameter:
Model | YQLW-1 | YQLW-2 | YQLW-3 | YQLW-4 |
Single Dump Max. | 50-1500g | 100-2500g | 50-1800g | 50-1800g |
Weighing Accuracy | 0.5-3g | 0.5-3g | 0.2-3g | 0.2-3g |
Max Speed | 10 bags/min | 24 bags/min | 30 bags/min | 40 bags/min |
Hopper Volume | 3L | 5L | 3L | 3L |
Mixture | Cannot | 2 | 3 | 4 |
Control Panel | 7” Touch Screen | |||
Power | 220V/50/60HZ 8A/1000W |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
