Introduction:

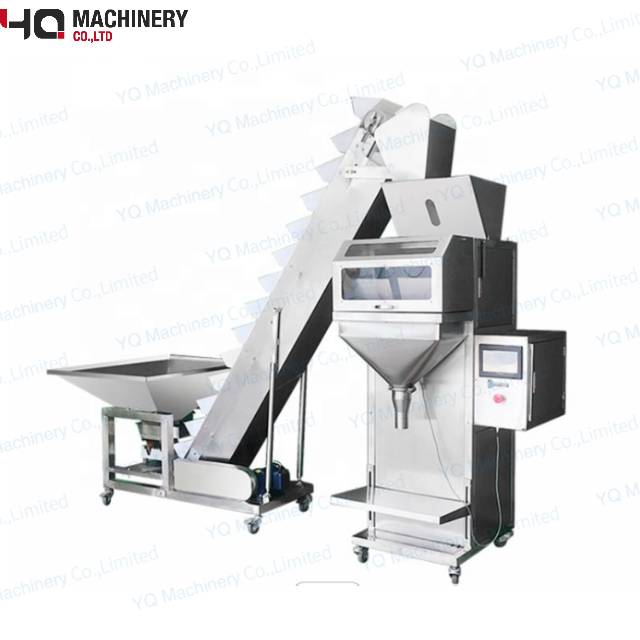

We are one of the good manufacturers, suppliers of superior quality for linear weigh filler etc. With our years of experience and quality customer service we can provide you with the perfect vibratory filling machine for granule. This net weight filler machines in your production line will streamline your entire operation and boost efficiency.
YQ machinery can offer linear weigh fillers which are still the main roles in pharmaceuticals, pesticides, foods, chemicals and other industries. It is designed to weigh a wide variety of granule products with good fluidity, such as: feed washing powder, dry seasonings, seeds, salt, monosodium glutamate, sugar etc.
Application
Advantages:
Utilizing a vibratory feeder can weigh and fill large volumes of product very fast. The product is cascaded from this powerful vibratory tray into the weigh bucket and also onto a secondary vibratory tray that is used to top-off of the portioned product for accuracy.
These weighing and filling systems can be used in a semi-automatic operation or interface and fitted with an automatic bagger, conveyor or pouch maker if you want.
Features:
A.This linear weigh filler machine can feeding , weighing granule.
B.Packaging granule in large range from 50 to5000g.
C.Designed in vibratory filling which weigh product directly to keep in high accuracy .
D.Built in stainless steel which is convenient for clean. Moreover,we can add a vacuum cleaner as an option.
E.Chinese/English or custom your language shows on the touch screen.The vibratory weigh filler can save different products' parameter

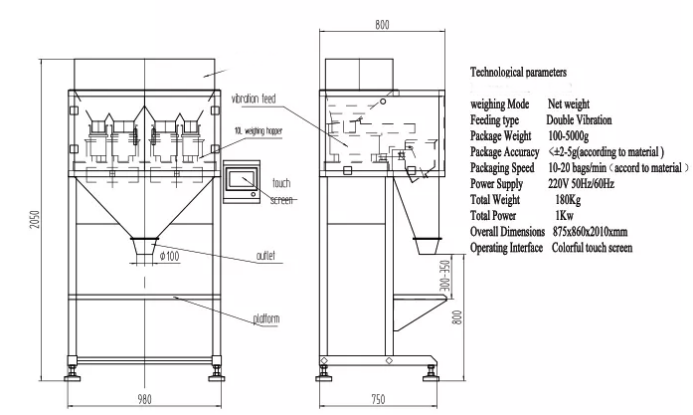

Drawing
Technical parameter
Model: | YQGF2-2 | YQGF2-6 | YQGF4-2 | YQGF4-6 |
Measurement Range: | 30-2000g | 500-6000g | 30-2000g | 500-6000g |
Measurement Method: | Double Weigh Hoppers | Four Weigh Hoppers | ||
Feeding Method: | Double Vibratory Linear weigh feeder | |||
Filled Error: | ≤ ±0.5% | |||
Filling Speed: | 0-30 bags/min | 0-50 bags/min | 0-60 bags/min | |
Hopper Volume: | 4.5 Liters | 25 Liters | 3 Liters | 25 Liters |
Silo Volume: | 100 Liters | 150 Liters | 120 Liters | 180 Liters |
Dimensions: | 108× 95×192cm | 113× 110×227cm | 131× 107×242cm | 150× 110×250cm |
Voltage & Power: | 220V/380V;1P/3P;50/60HZ |
WHAT OUR LINEAR WEIGH FILLER CAN DO FOR YOUR PRODUCTION?

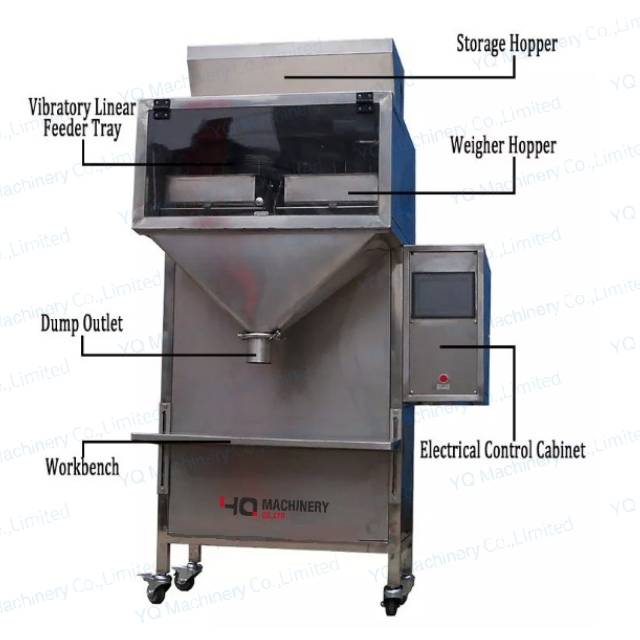

Net Weigh Filler packaging machines will keep your production rates up to speed and provide an accurate amount of product at the same time. YQ machinery weigh feeder is designed to handle the unique needs of precise weights – from small consumables such as nuts and coffees to industrial-use powders and chemicals in packaging sizes weighing up to 6 kilogram. Vibratory fillers features include the hopper, a feeder pan and a control system. If you are not sure which vibratory net weigher is right for your filling and weighing needs, we will help you decide.
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
