YQF-30

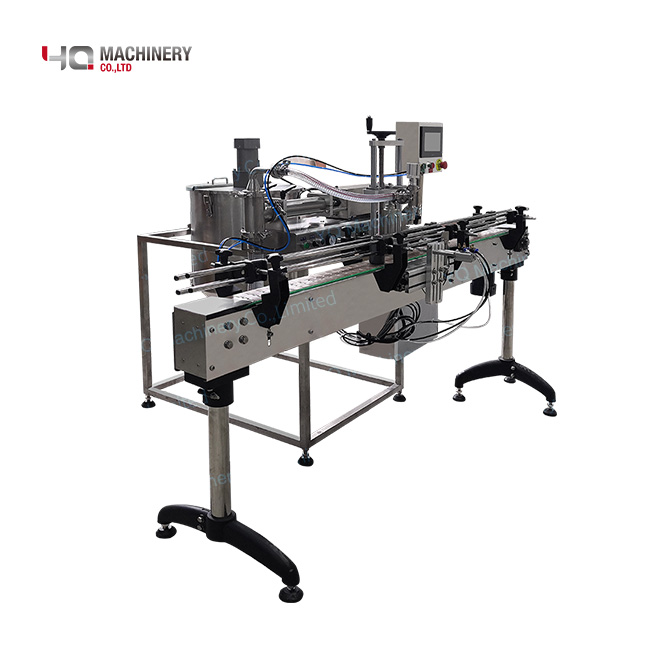

Introduction of automatic filling machine:
It is suitable for pharmaceutical, daily chemical, food, pesticide and special industries. It is an ideal filling equipment.The humanized design is more in line with the requirements of modern enterprises. It is suitable for filling oily materials, paste materials and liquid materials. Such as shampoo, edible oil,sauce, health products, pharmaceuticals, etc.
LInear single-head liquid filling machine is controlled by PLC and electronic optical fiber sensor,. No bottle,no filling. And it has a counting function. It can record the output of the day and month.

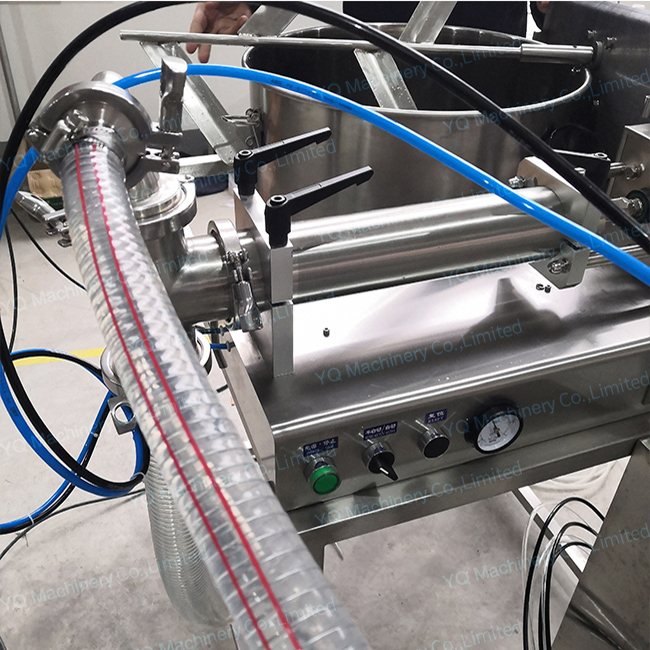

This bottle filling machinery can be used in conjunction with capping machine and labeling machine. The linear filler machine uses a submerged filling mechanism. When filling, the filling head automatically dive into the bottle and rises slowly, so that the liquid does not overflow and can not afford Bubble.This liquid dispenser is suitable for liquid Filling. The equipment is made of 304 stainless steel, which is easy to clean. There is no dead angle, which fully meets the requirements of GMP standards.
Advantage of linear filling machine:
1.Electrical and pneumatic components of world-renowned brands are adopted, with low failure rate, stable and reliable performance and long service life;
2. Contact part is made of 304 or 316L stainless steel, corrosion resistance, acid and alkali resistance, simple disassembly and assembly, easy to clean, and meet sanitary requirements;
3. Simple adjustment of filling volume and filling speed, intelligent photoelectric sensor, automatic liquid level control and feeding, convenient, fast and save labor;
4. Strong equipment compatibility, can quickly adjust and replace bottles of different shapes and sizes without replacing parts, which can meet the production requirements of multiple sizes of bottles;
5. The filling nozzle is equipped with anti-drip device to ensure that there is no drawing or dripping during filling.
6. Bottle filling machine runs smoothly;maintenance is convenient
7. Full English human-machine interface. The terminal display operation platform adopts English menus.
Technical Parameters of gallon filling machine:
Applicable specifications | 10-100ml;50-500ml;100-1000ml |
Production capacity | 15-30bottle /min |
Filling accuracy | ±1% |
Capping rate | ≥99% |
Power supply | 220V / 50Hz 60Hz |
Power | 1.5kW |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by misoperation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
