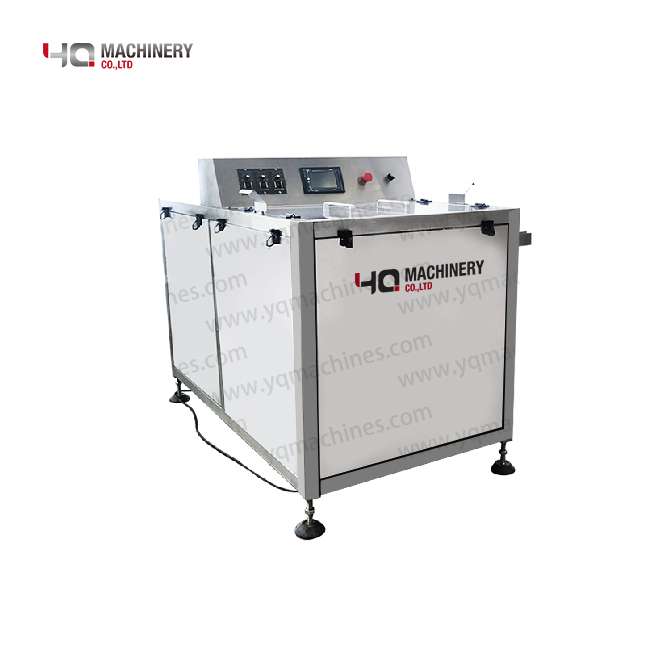

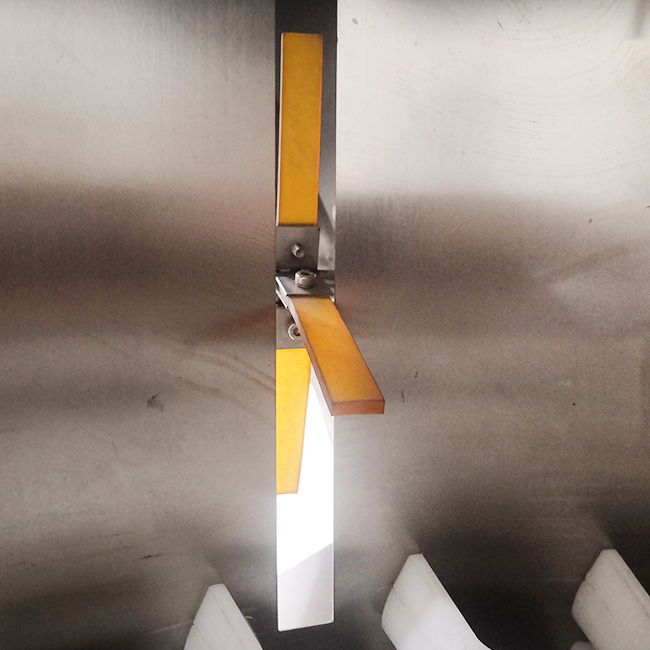

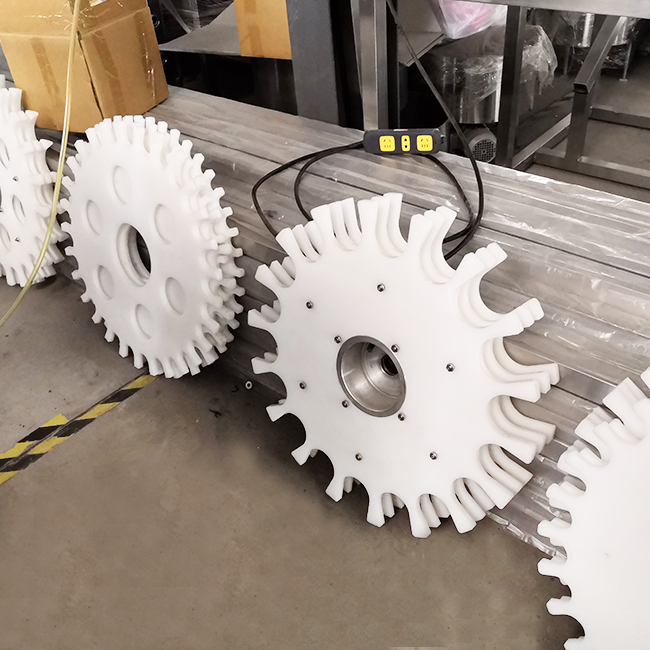

Bottle unscramble machine for chubby gorilla
Application:
Automatic bottle unscrambler is suitable for the automatic sorting and arrangement of various plastic containers (round bottles, square bottles), mainly used in the pharmaceutical industry, health products industry, food industry and related industries. The bottle arranging machine only needs to pour the bottles into the hopper, and the bottles can be sent to the next process in a certain order.
Working principle:
The bottle unscrambler is an electromechanical integrated device with convenient operation, simple maintenance and reliable operation. This plastic bottle sorting machine is equipped with a bottle quantitative control and detection and overload protection device. Encounter is less than 70db. This pet bottle unsrambler is made of 304 high quality stainless steel. Use mechanical flip bottle structure to correct bottle direction and achieve consistent bottle mouth.This bottle sorter is also equipped with a bottle storage device, which greatly improves the production efficiency. It also have 3 stepless speed regulation motors. One of them is used to adjust the speed of star wheel. The faster the star wheel is, the faster the bottle coming out. And at the exit of this rotary bottle unscrambler machine is with a sensor to detect whether there is a full bottle on the conveyor belt. If there is a enough bottle on conveyor, the motor of star wheel will stop automatically. Automatically power on if there is lack of bottles
Technical Parameters:
Production capacity: 30-120 bottles / min
Air source: 0.5-0.7Mpa
Power source: 220V / 50Hz
Power: 0.55 kw
Dimensions: 1400 * 800 * 1000mm

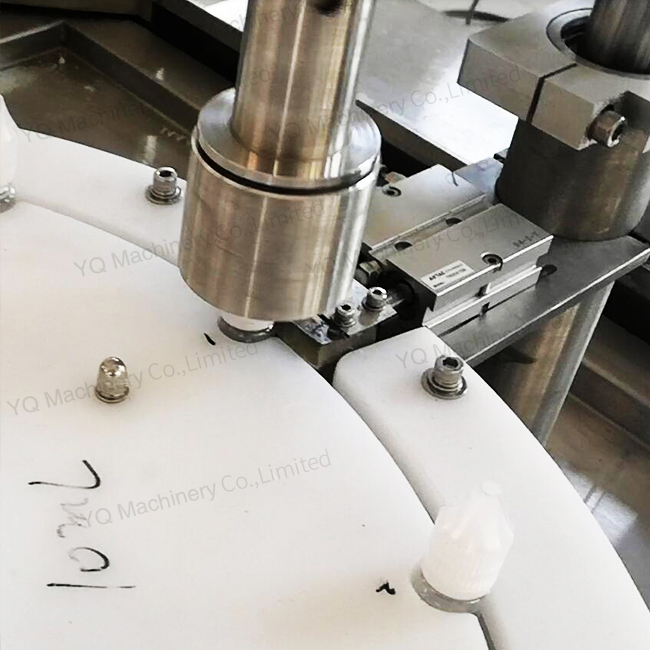

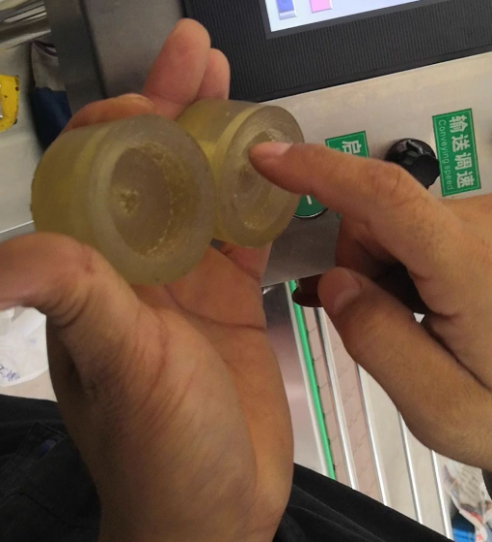

Vial filling and capping machine with peristaltic pump metering system
Application:
This small-dose filling machine is with plugging and capping stations.It is suitable for automatic filling, stoppering, capping 10-120ml plastic bottles or glass bottles. It has the advantages of accurate positioning, stable transmission, accurate measurement, and simplicity. Servo motor driven peristaltic pump filling, accurate filling measurement, no dripping during filling, no bottle without filling function,no cap no sealing function.The vial filling and sealing machine is equipped PLC programmable Control, touch screen human-machine interface system, simple and convenient operation; full compliance with GMP requirements.
Features of liquid bottling machine
1.Peristaltic pump performs metered filling, with a large filling adjustment range, high filling accuracy, simple adjustment of the filling volume and filling speed, and overcomes the problems of slow traditional filling and small filling range from the root.
2. Convenient cleaning and fast replacement to ensure no material cross-contamination. (Different materials just need to change the pipes)
3. Human-machine interface, parameter setting, calling parameter group is convenient and fast, PLC programmable control, providing multiple groups of memory areas, programs, memory storage function to automatically store filling measurement; filling of the same medium and measurement directly from the memory bank No need to adjust the device again.
4. User-friendly design, fast and easy to change different bottle types.
5. The filling nozzle is equipped with special leak-proof device, submerged filling, filling without drawing and dripping.
6. Using world-renowned brands of electrical and pneumatic components, low failure rate, reliable performance and long service life.
7. The whole liquid dosing machine is mainly made of high-quality SUS304 stainless steel.
8. The design and manufacture are strictly implemented in accordance with the CE standards required by the European Union, and the operation is safe, stable and durable.
Technical parameter:
Model | YQPF-2 | YQPF-4 |
Capacity | 20-35 bottles/min | 45-55 bottles/min |
Filling volume | 10-120ml | 10-120ml |
Filling head | 2 | 4 |
Filling accuracy | Less than ± 1% | Less than ± 1% |
Power supply | 1ph 220V, 50/60Hz | 1ph 220V, 50/60Hz |
Power | 2.2 KW | 2.5 KW |
Overall dimension | 2000×1600×1600mm | 2100×1600×1600mm |
Net weight | 450kg | 600kg |

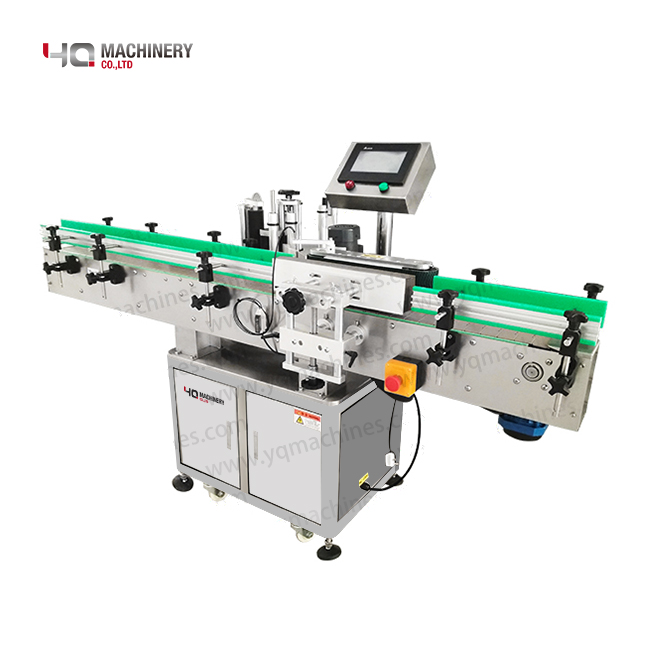

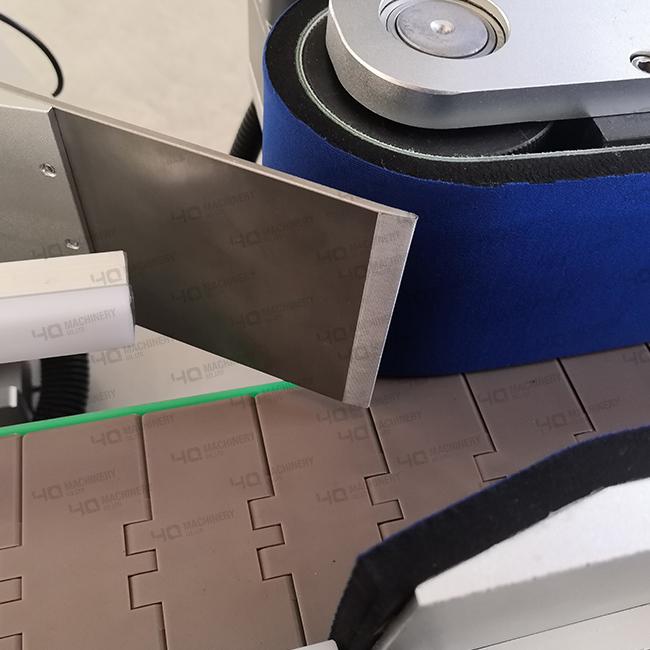

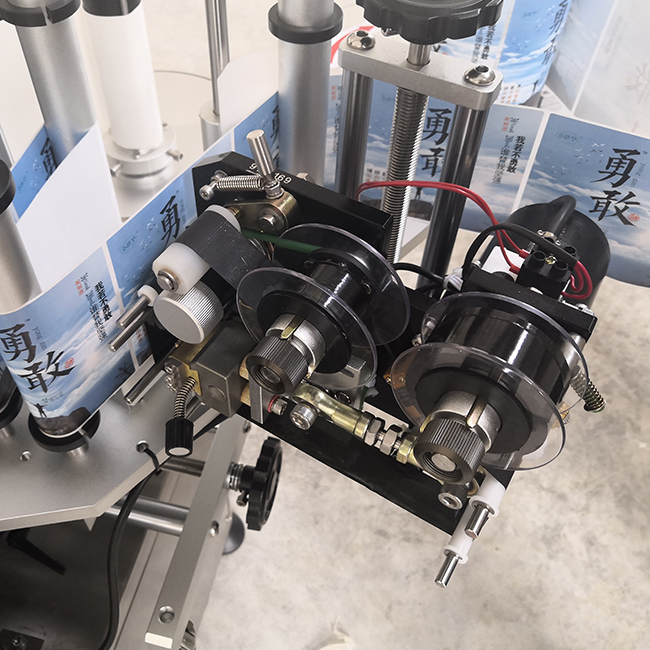

Small bottle labeling machine
Application:
This automatic round bottle labeling machine can be use to label various regular cylindrical or conical products. It is widely used in cosmetics, food, medicine, daily chemical, toys, hardware, plastic and other industries. This sticker labeling machine can label circle/semi circle of round container. Suitable for self-adhesive labels, self-adhesive films, electronic supervision codes, bar codes, two-dimensional code labels, transparent labels, etc. High equipment stability, good labeling effect, no bubbles, no wrinkles, labeling accuracy ± 1mm.
Options:
a. date coding machine(injet printer,ribbon coder,laser printer)
b. clear/transparent label(adopt clear sensor to detect)
c. bottle feeding table and pack off table
d. filling and capping machine
Feature
◆ Easy adjustment, equipped with front, back, left and up, up and down, plane tilt, vertical tilt adjustment seat, no dead angle for different bottle shapes, easy and fast adjustment
◆ Automatic bottle sorting, using the bottle sorting mechanism, effectively eliminating the bottle smoothness caused by the bottle error and improving the stability;
◆Touch screen control, human-machine interaction interface with operation teaching function, parameter modification is intuitive and clear, and various functions are easy to switch;
◆ Intelligent control, automatic photoelectric tracking, with functions of no labeling, automatic calibration without label and automatic label detection function, avoid wasting labels and missing labels;
◆Sturdy and sanitary, mainly made of stainless steel and high-grade aluminum alloy, with solid quality and meeting GMP production requirements;
◆With automatic shutdown function, production counting function, power saving function (when no production is in the set time, the device automatically switches to the power saving standby state), production number setting prompt function, parameter setting protection function (parameter setting is divided into rights management) To facilitate production management.
Operating direction | Left or Right |
Labeling Accuracy | ±1.0 mm(subject to the roughness of the plane) |
Production(bottle/min) | 10-120(according to the size of bottle and label) |
Labeling Speed(m/min) | ≤40 |
Label Specifications | adhesive sticker,transparent or opaque |
The application of bottle | Outer diameter 20-100mm Height 35-200mm(can be customized according to your requirement) |
The application of label | Height 20-180mm ; Length 23-300mm(can be customized according to your requirement) |
The inner diameter of label roll | 76mm |
The outer diameter of label roll | 350mm (max) |
The power of motor(w) | 550W |
Voltage | AC220V 50/60HZ Single phase |
Size appearance(mm) | 2200(L) 700(W) 1270(H)mm |

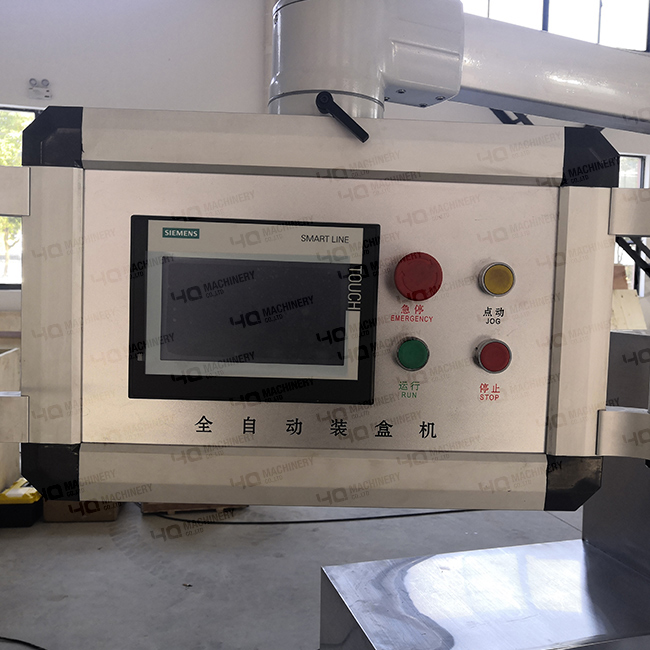

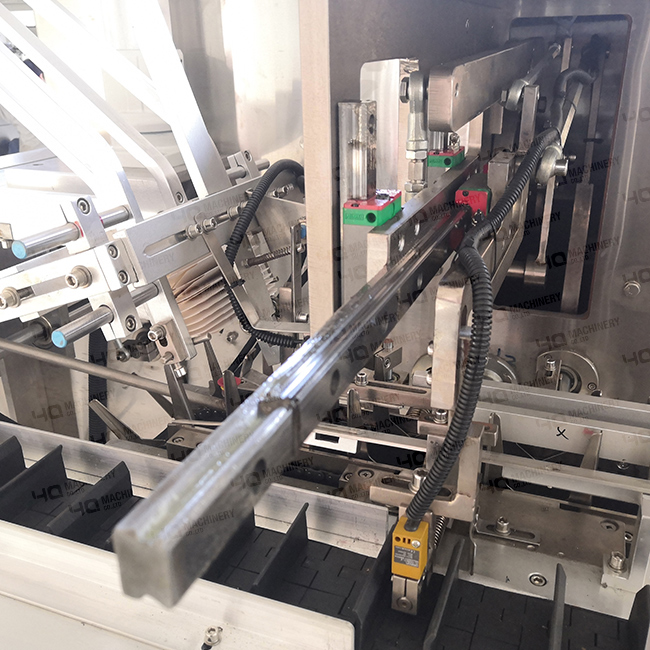

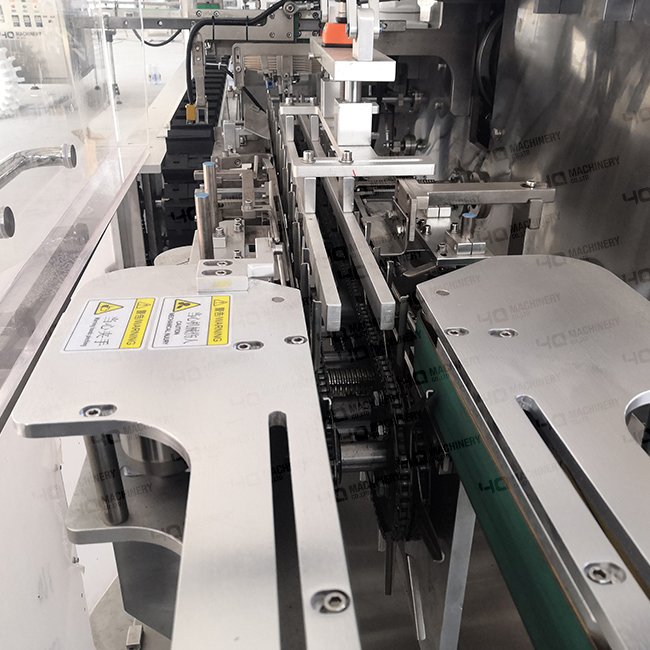

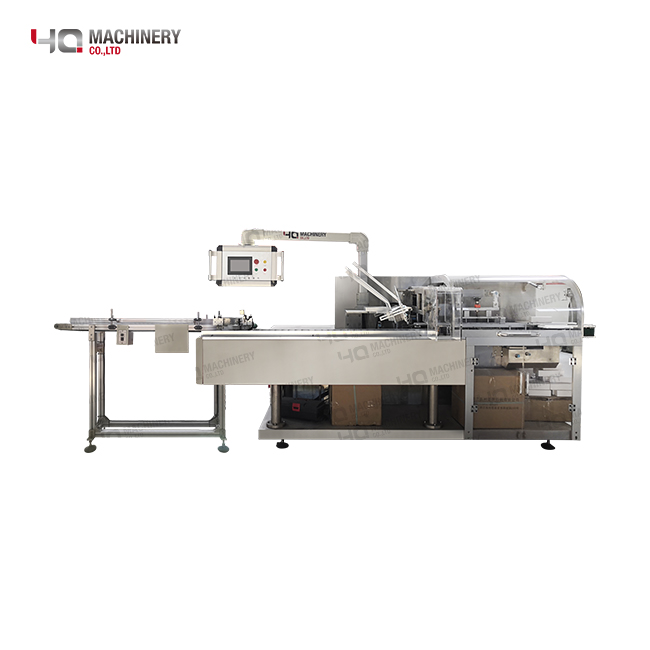

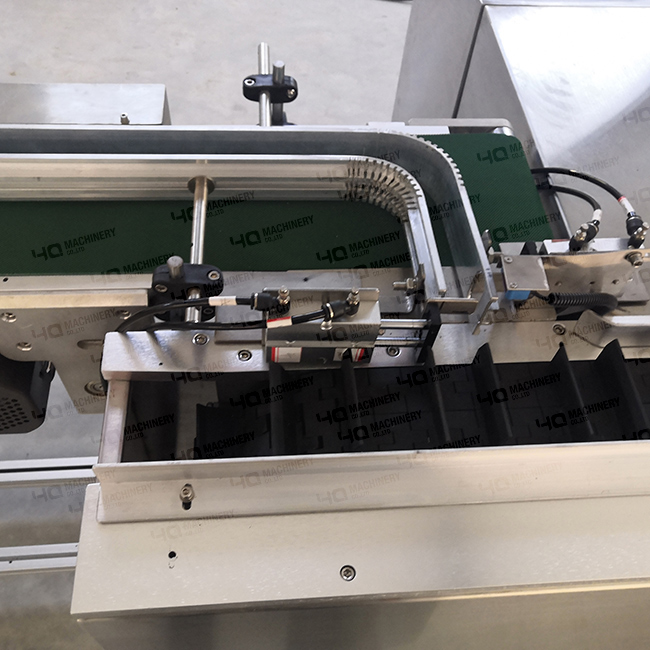

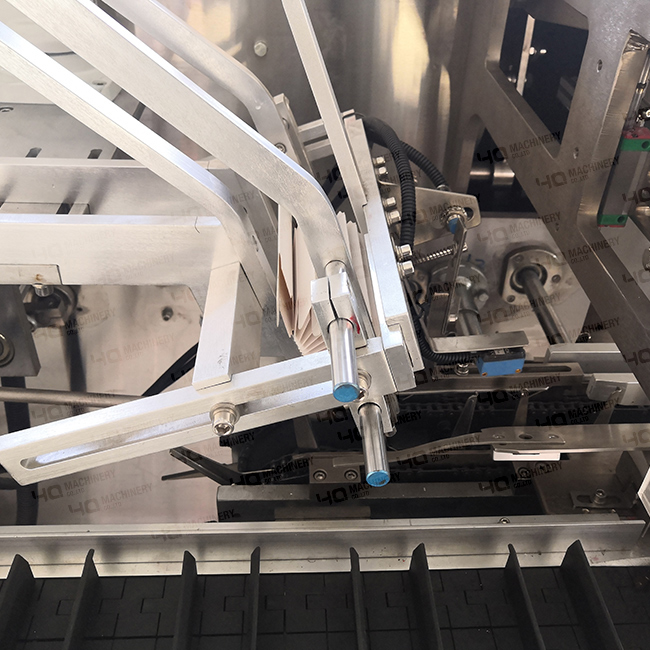

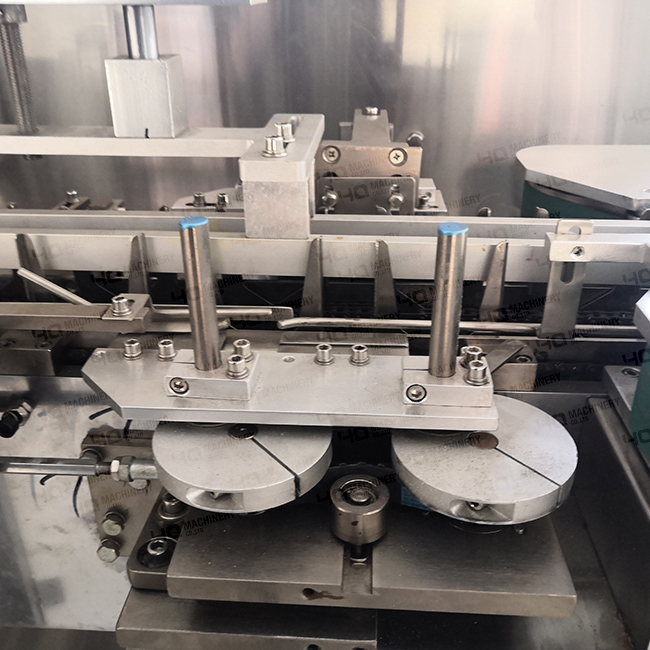

Cartoning machine
Application
The cartoning machine produced by YQ MACHINERY is suitable for multiple industries:
1. Food products automatic cartoner machine is used for packing and gluing of biscuits, chocolates, coffee bars, various moon cakes, specialty products, frozen foods, ice cream, dried fruits, tea, bread, cakes, drinks, milk powder, etc. .
2.Pharmaceutical cartoning machine is used for packing of oral liquids, aluminum-plastic plates, medicine bottles, water needles, granules, health products, salves, plasters, medicine tubes, tablets, etc
3. Cosmetic box cartoning machine is used for packing of facial mask, facial cleanser, toothpaste, nail polish, toner, hand cream, lipstick, eyebrow pencil, BB cream, Dabao, etc.
4. Hardware carton packing machine is suitable for packing of bulbs, bulbs, energy-saving lamps, spark plugs, filters, bearings, solenoid valves, cylinders, air switches, switches, plug-in boards, auto parts, etc
5. Stationery automatic carton machine is suitable for packing of signature pens, water pens, paint brushes, crayons, toys, science and education supplies, finger tops, and so on.
Features
1. The cartoning machinery can automatically complete the folding of manual, carton forming, opening, block packing, batch number printing, sealing, etc. And can be equipped with hot-melt sealing system
2. The horizontal cartoning machine is controlled by PLC. Photoelectricity monitors the movements of various parts, abnormalities occur during operation, and it can automatically stop and display the cause, so as to eliminate the fault in time.
3. The main drive motor and clutch brake are installed inside the frame. Torque overload protectors for various parts of the transmission system are installed on the machine board. In the case of overload, the main drive motor can be disconnected from each transmission part to ensure the safety of the whole machinery.
4. The automatic cartoning machine is equipped with an intelligent detection device. No product,then there is no manual, no paper box, and also easy to work with front-end equipment. Waste products (non-medicine version, instruction manual) found in the testing process are removed at the exit to ensure that the product quality meets the requirements
5. This cartoning machinery can be used alone or in conjunction with three-dimensional packaging machines and other equipment to form a complete production line.
6. The boxing machine can change the packaging specifications according to different user requirements, and is easy to adjust and debug. It is suitable for large-volume production of a single variety, and at the same time, it can meet users' small-volume production of multiple varieties.
The main parameters
Power source: Ac380v three-phase four-wire 50HZ
Total power: 1.5KW
Production capacity:50-80 boxes per min
Air consumption; 20m3 / h (pressure 0.5-0.7mpa)
Packaging materials; carton quality; 250-300g / m2 (depending on the size of the carton)
Specifications: maximum size (LxWxH) 250x155x80mm minimum size: (LxWxH) 60x30x15mm
Manual: Mass of paper 55-65g / m2
Specifications: Maximum size (LxW) 260x190mm;Minimum size: (LxW) 100x100mm
Dimensions: 3300x1350x1650mm
Weight: about 1.3 tons
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
