Applications:

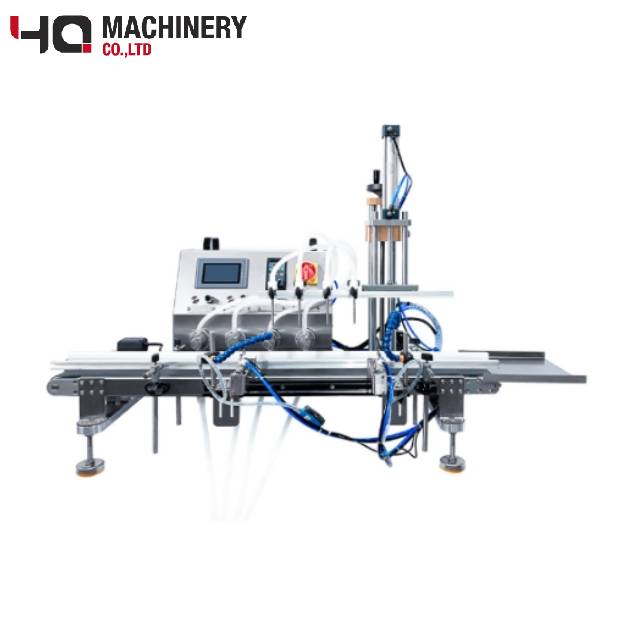

This magnetic pump filling machine is widely used in different industries for filling liquid like perfume,aclohol,serum,oil,lotion,etc.
Features:
1.Each button have English and Chinese, simple and easy to read and control.
2.Food-grade plastic feeding pipe, which meet the food quality inspection standard, Corrosion resistant, the feed inlet has a filter, it makes your filling work safety.
3.Adopt drip-proof nozzle design, filling will be more accuracy.
4. Adopt variable frequency governor, equipped with high precision multi-circle potentiometer and lock dial, make the flow adjustment stable and accurate, the error is small.
Technical Parameter:
Power | 0.5KW |
Voltage | 220V/50HZ |
Filling heads | 4 heads |
Diamater of bottle mouth | Above 4mm |
Suitable material | Liquid |
Suitable bottle height | 20-300mm |
Flow rate | 7L/pump/min |
Working environment | -5-50'C |
Working conditiion | The temperature does not exceed 100* |
Diameter of nozzles | 8mm (Can be customized) |
Machine material | Stainless steel |
Weight | 15kg |
Dimension | 260*400* 380mm |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
