Malaysia customer placed an order of 60ml e juice bottle feeder,filler,labeler and collector machines

Views: 334     Author: TRACY     Publish Time: 2017-06-08      Origin: YQ MACHINERY CO.,LIMITED

we are automatic rotary vial filler manufacturers.It can be used for different type of vials.and also fill E-liquid,essential oil.we can offers specialized equipment designed for customers in the E-Cigarette,E-Liquid,Vapor industry. Timed Flow Volumetric and Piston Filling Machines can accommodate a wide range of E-Liquid flavors and Scents.E liquid filling Machines are built for use in many different environments and can be individually customized for your particular project needs.

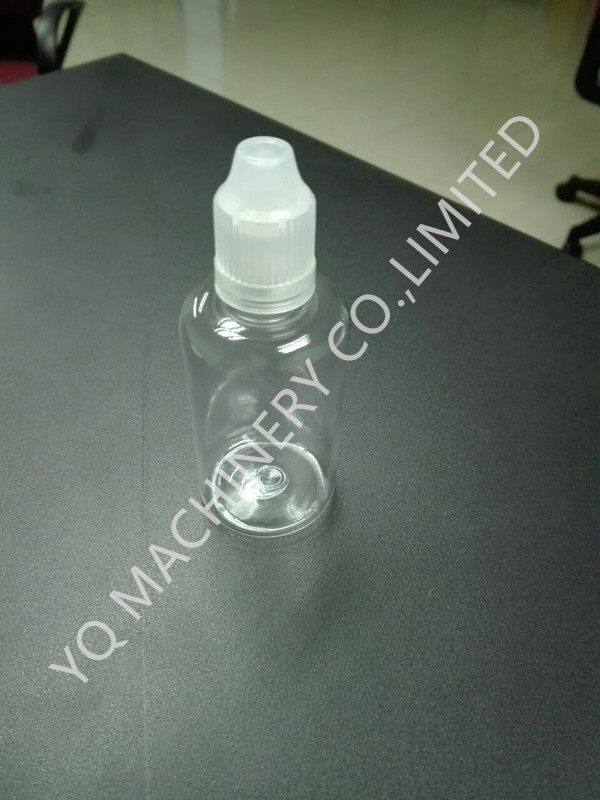

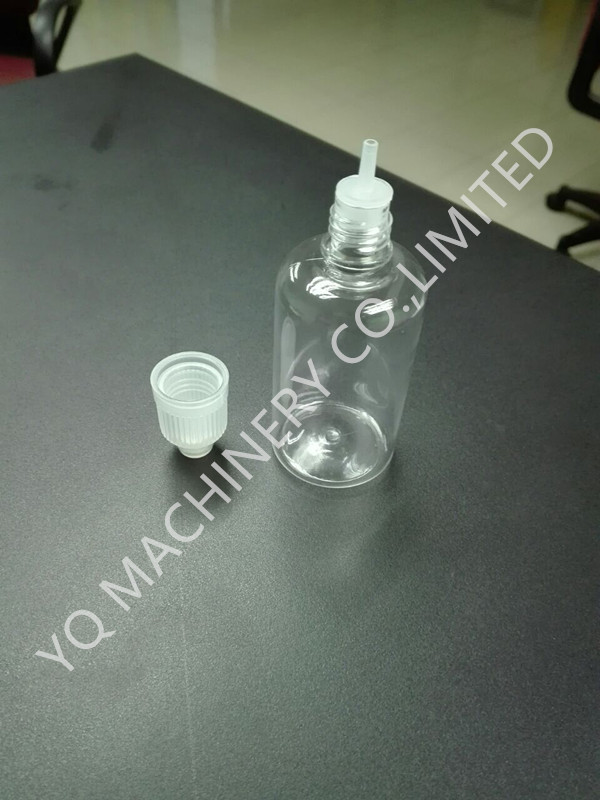

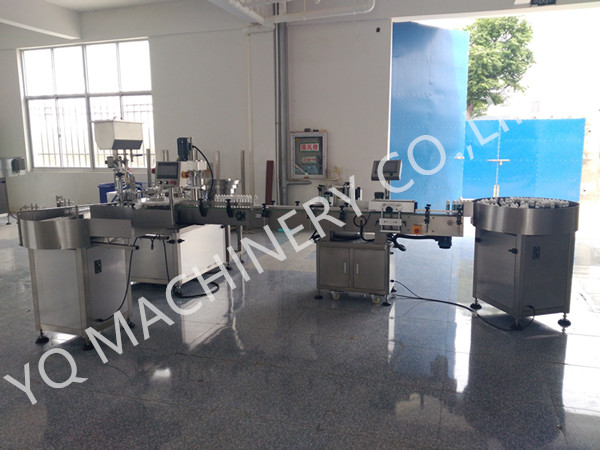

This e liquid filling machine was customized for Malaysian customer.It includes 4 machines:e liquid bottle feeding machine,e juice bottle filling plugging cap tightening machine,E-Cigarette bottle labeling machine,Vapor oil bottle labeling machine.According to client's requirement,it need to fill 60ml,so we adopt piston filling system.Below is videos of this e juice filling production line for your reference:


E LIQUID FILLING MACHINE.jpg60ml e juice filling machine.jpg

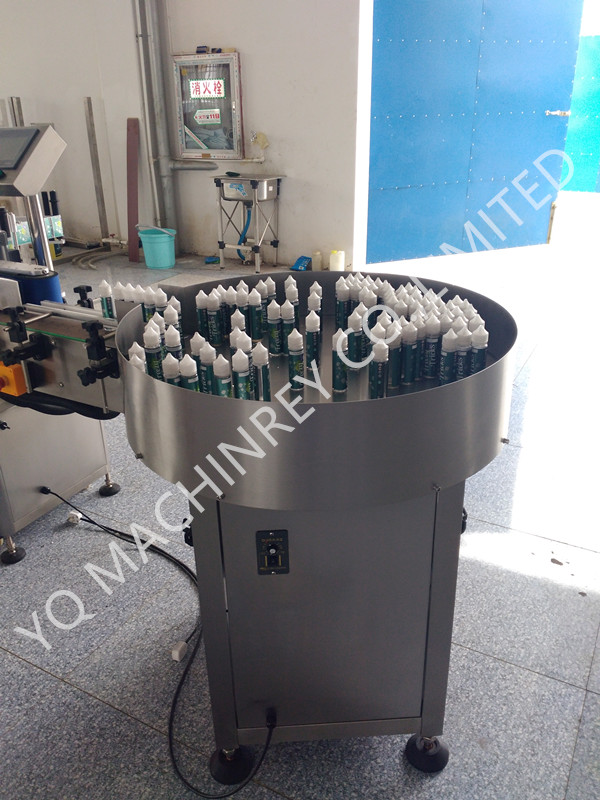

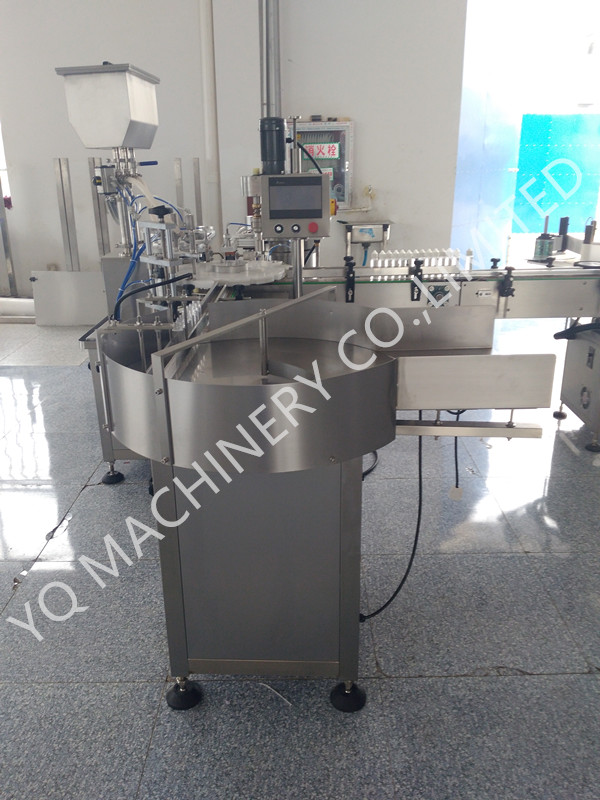

1.bottle turntable

Technical Specification for e liquid bottle feeder:

Applicable specifications 20-1000 ml

Bottle diameter:φ 10-φ80 mm

The bottle height:85-300 mm

Production capacity:0-100 BPM (speed adjustable)


Power:0.5 kw


Machine size:1300*1000*1300mm

Stainless steel:SUS304 material

E Cigs Liquid filling machine.jpg

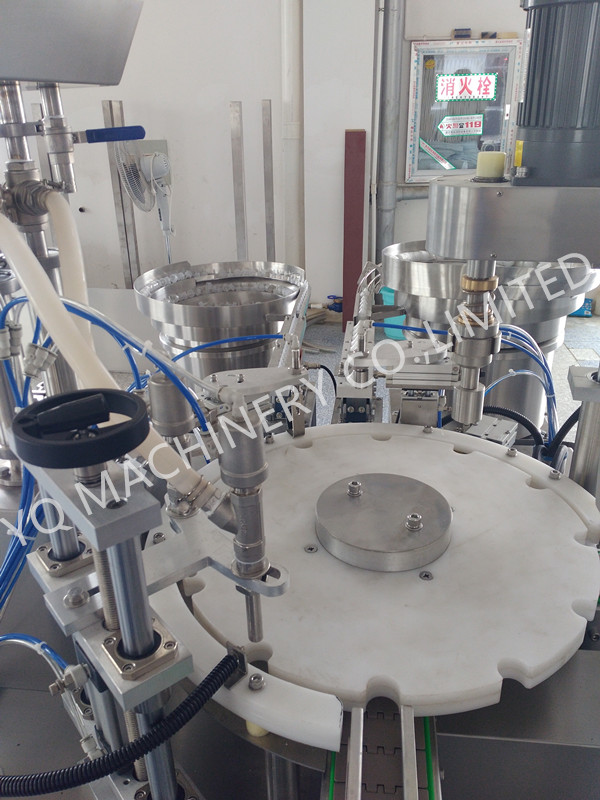

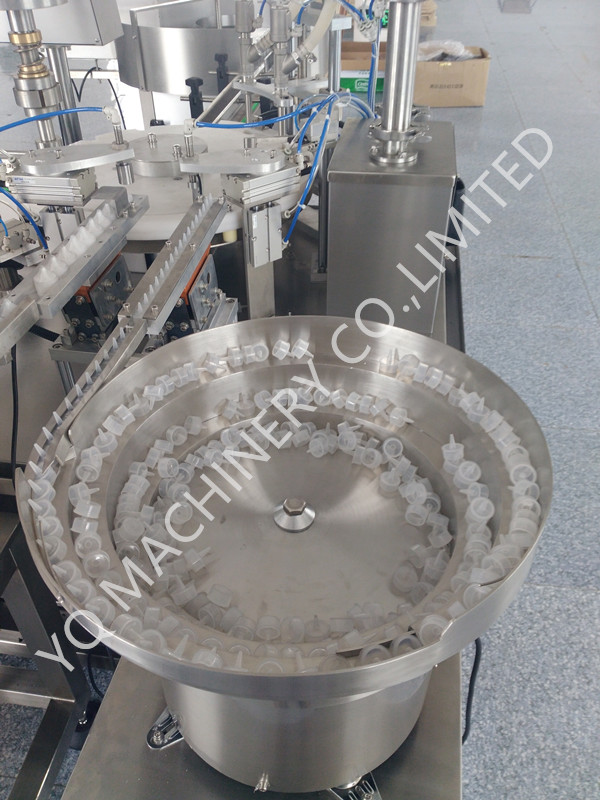

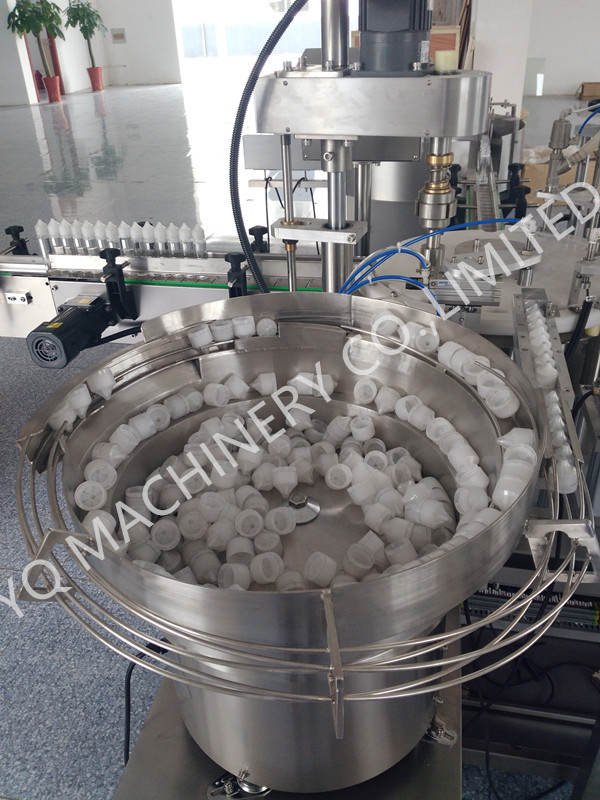

2.Vape liquid bottle filling plugging capping machine

Main performance and structure features of e juice filling machine:

This machine is suitable for the filling of 10-100ml liquid. Mainly used for the filling linkage production of various liquid materials in pharmaceutical, food, chemical industry.The production line is fully compliant with the GMP requirements.

1. No bottle no filling,no bottle no capping,suck out foam.

2. Outer material is stainless steel, it complies with GMP regulation.

3. Capping by manipulator automatically.

4. Easy operation and convenient maintenance.

5.Microcomputer setting, PLC control, touch screen operation, it is high automated, easy to operate with stable performance can work both alone an together with other machines.Such as bottle unscrambler/turntable,labeling machine,cartoning machine and so on.

7.It can be customized, the product quantity can be controlled according to customer's requests, no matter 2/4 heads.

 E juice filling machines.jpg

E LIQUID FILLER.jpgvape juice filling machine.jpge-cig liquid filling machine.jpgvape oil filling machine.jpg

Technical Parameters of e juice filling equipment:

Applicable specifications: 10-100ml

Filling head: two heads(when fill 60ml,we use piston pump)

Production capacity: 20-50 bottle /min

Filling accuracy: ±1%

Capping rate: ≥99%

Power supply: 220V / 50Hz 60Hz

Power: 2kW

Total dimension: 2500 * 1000 * 1500MM

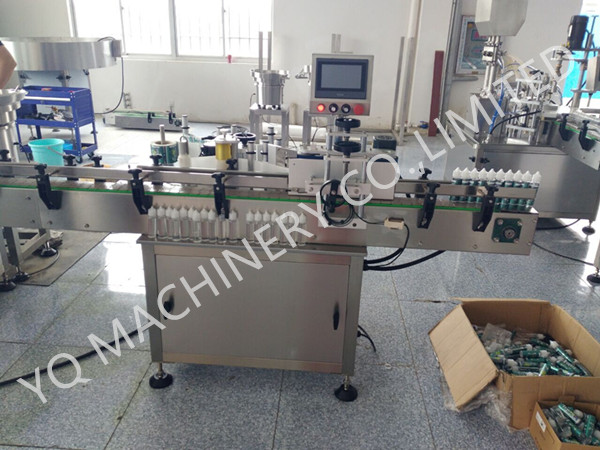

3.E juice bottle Labeling machine

E juice filling and capping machine.jpge juice filling system.jpg

Main technical parameters of this vape liquid bottle labeling machine:

Operating directionLeft or Right

Labeling Accuracy±1.0 mm(subject to the roughness of the plane)

Production(bottle/min)60-150(according to the size of bottle and label)

Labeling Speed(m/min)≤40

Label Specificationsadhesive sticker,transparent or opaque

The application of bottleOuter diameter 20-100mm  Height 35-200mm(can be customized according to your requirement)

The application of labelHeight 20-180mm ; Length 23-300mm(can be customized according to your requirement)

The inner diameter of label roll76mm

The outer diameter of label roll350mm (max)

The power of motor(w)550W

VoltageAC220V 50/60HZ Single phase

Size appearance(mm)2200(L) 700(W) 1270(H)mm

4.Bottle accumulation table:

E liquid filling capping machine.jpg

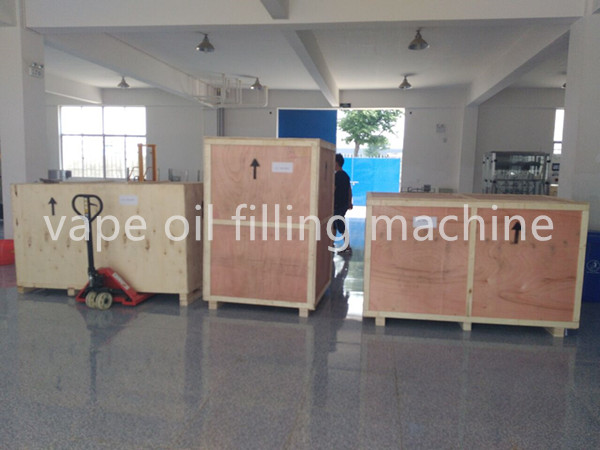

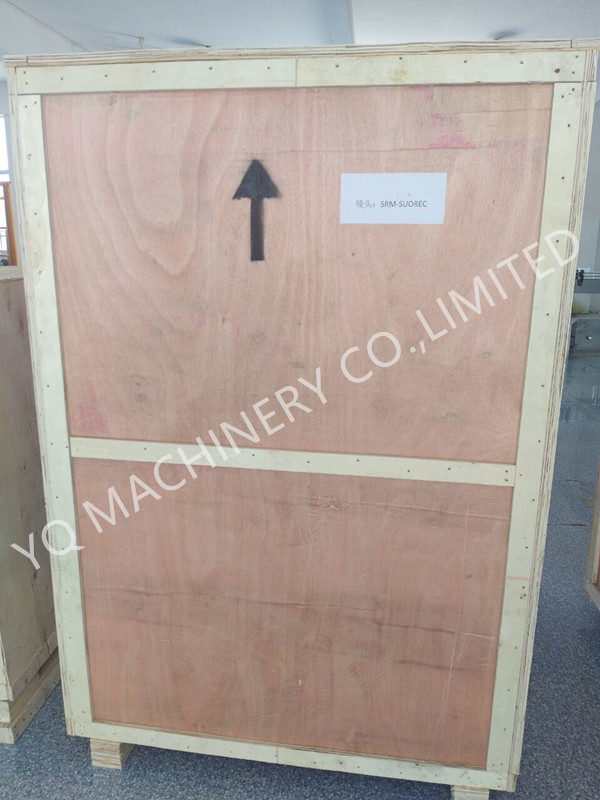

They are packed in wooden cases and sent to YiWu.

E CIGS FILLING MACHINERY.jpgE LIQUID FILLING MACHINERY.jpgE liquid filling machines.jpg9_副本.jpg
