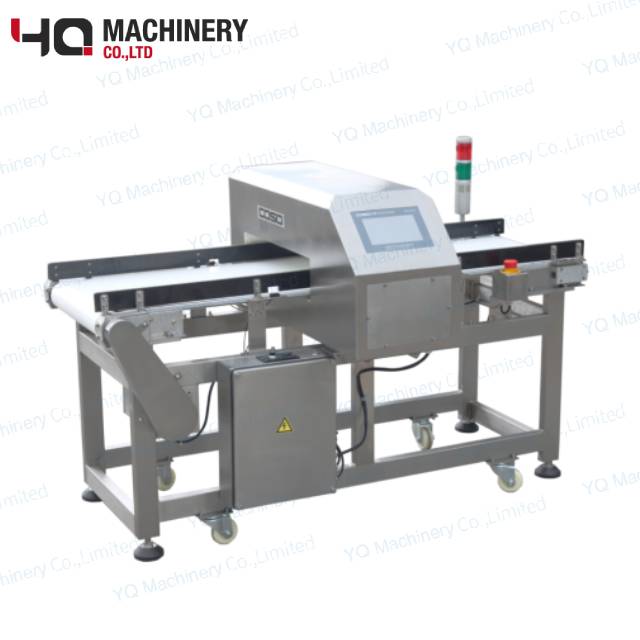

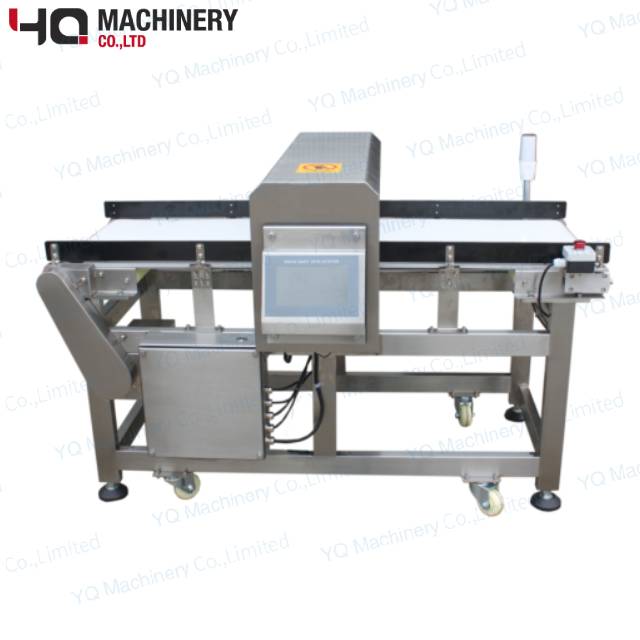

YQMC-80
YQ

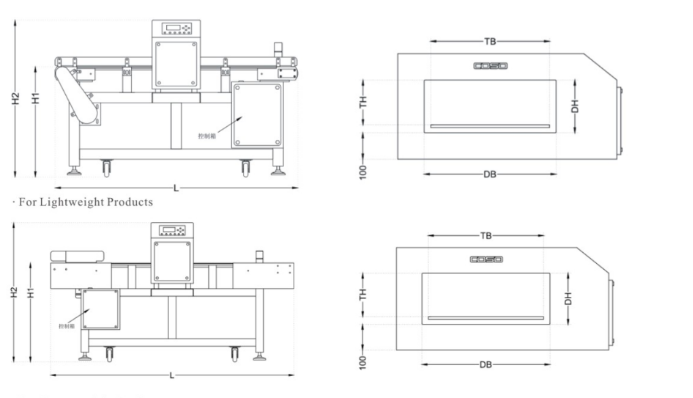

Structure:
DB: Width of detector H1: Height from conveyor belt to the ground
DH: Height of detector H2: Height of whole machine
TB: Passing width L: Length of conveyor belt
TH: Passing height W: Height of whole machine (Customization is available)
Features:
1. Material: stainless steel 304.
2. Screen choice: LCD screen & touch screen. With touch screen, metal detector can store inspection data by USB.
3. High & stable sensitivity, store 100 kinds of products parameters.
4. Operation is easy, with auto-set learning function.
5. Adjustable speed: 0-30m/m, if need higher speed, can customize.
6. Provide customization service, with own engineer service team.
7. Modular components, easy and convenient for replacements.
8. Multi-type rejection system to choose.
Technical Parameter:
Detected Height(mm) | 80 | 100 | 150 | 200 | 250 | 300 | 350 |
Belt Width(mm) | 250 | 250 | 400 | 400 | 400 | 400 | 400 |
Belt length | 1500 | ||||||
Detector sensitivity(mm) | Fe 0.8 | Fe 1.0 | Fe 1.2 | Fe 1.5 | Fe 2.0 | Fe 2.5 | Fe 3.0 |
SUS 1.0 | SUS2.0 | SUS2.5 | SUS2.5 | SUS3.0 | SUS3.5 | SUS4.0 | |
N-Fe 1.0 | N-Fe1.5 | N-Fe2.0 | N-Fe2.0 | N-Fe2.5 | N-Fe3.0 | N-Fe3.5 | |
Speed of belt | 25M/min (Fixed speed) ; If you need adjust 5-40 M/min , please inform us before order | ||||||
Load ability | 20KG | ||||||
Count | 100 | ||||||
Warning method | ound and light alarm ; The belt can be stopped, continue run or belt return ( the option you can selected in PLC controller) | ||||||
Reject Ways | when has auto-reject system ,belt continue and rejecting the goods | ||||||
Application | Non-package ,plastic package ,paper bag or box (non-metallic) product | ||||||
Work Environment | Temperature -10℃-40℃ ,relative humility 30-90% |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
