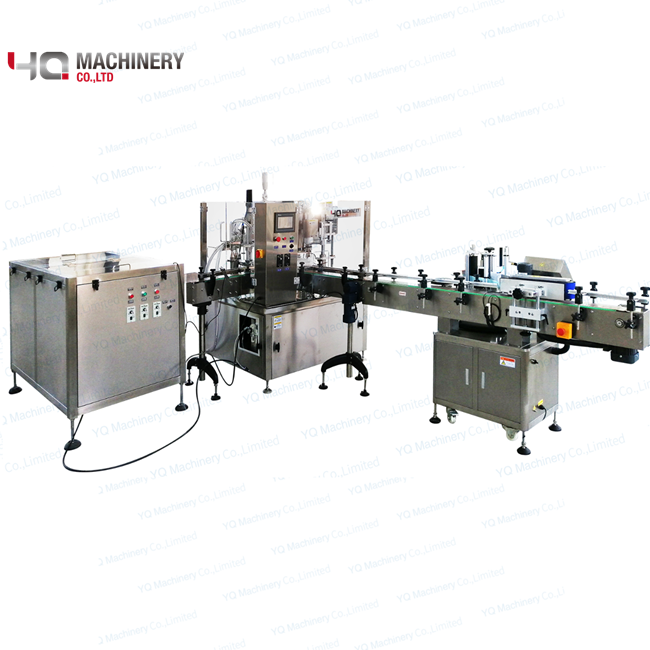

YQVF-120
YQ
Industry Applications:
E-liquid Bottle, Nail Polish, Vial Bottle, Essential Oil Bottle...

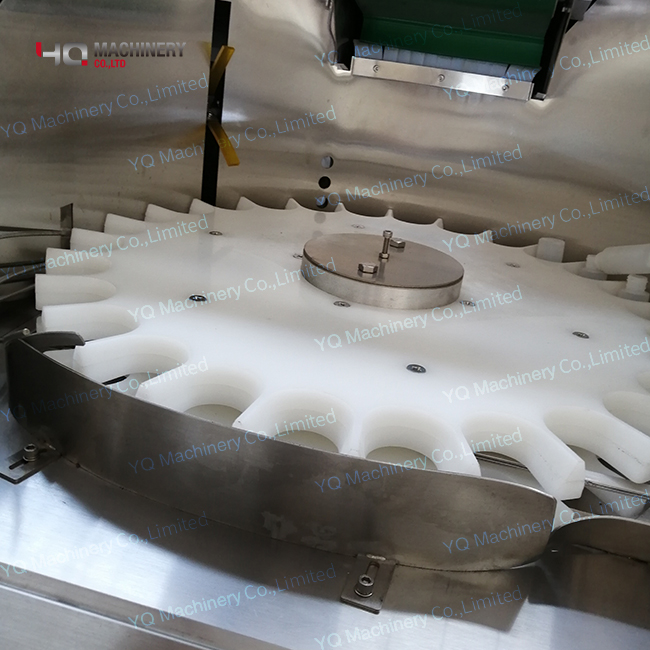

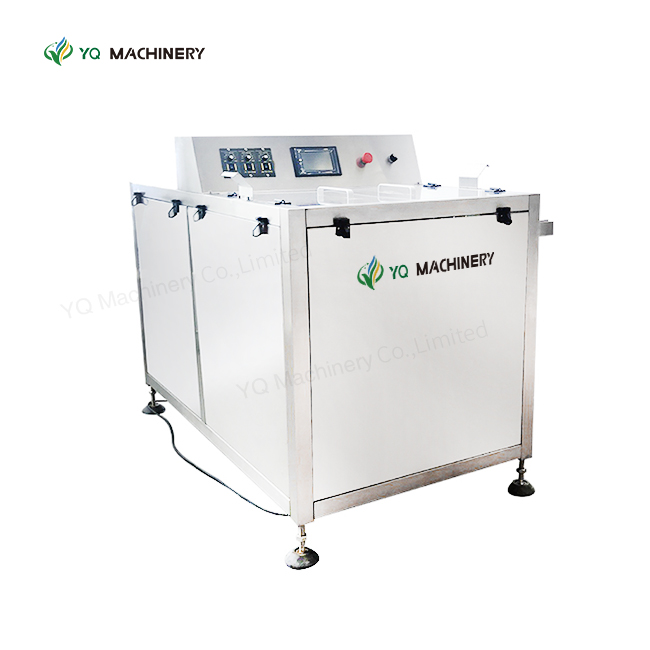

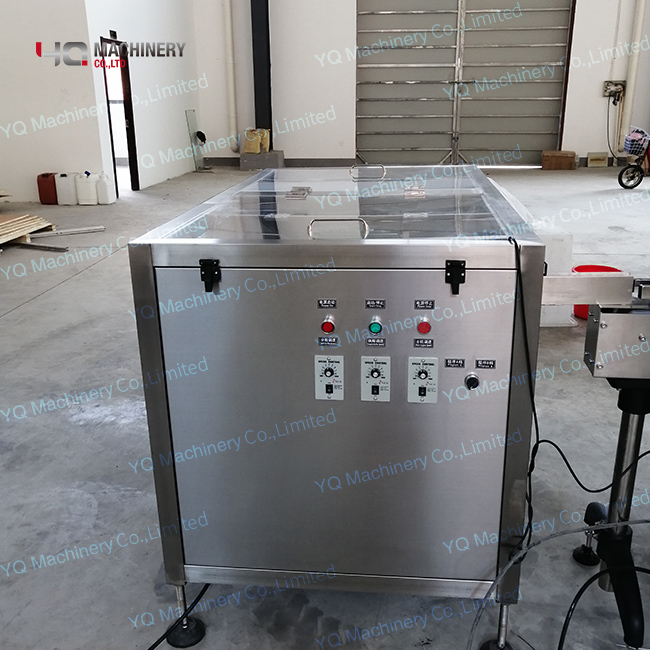

A) Bottle unscrambler
Introduction:
This bottle unscrambler used in dozens of industries for a wide range of bottle types, shapes, and sizes offering speeds up to 100 bottles per min.
Advantage:
Automatic Bottle Unscramblers effectively automate packaging production lines affording increased efficiency, savings and productivity. Savings are realized through effective use of personnel and associated costs over manual/semi-automatic unscrambler operations.YQ unscramblers are designed for quick changeovers (accomplished in a few minutes) and durability resulting in less downtime. All unscramblers can be upgraded with the ability to change production lines.
Structure and features:

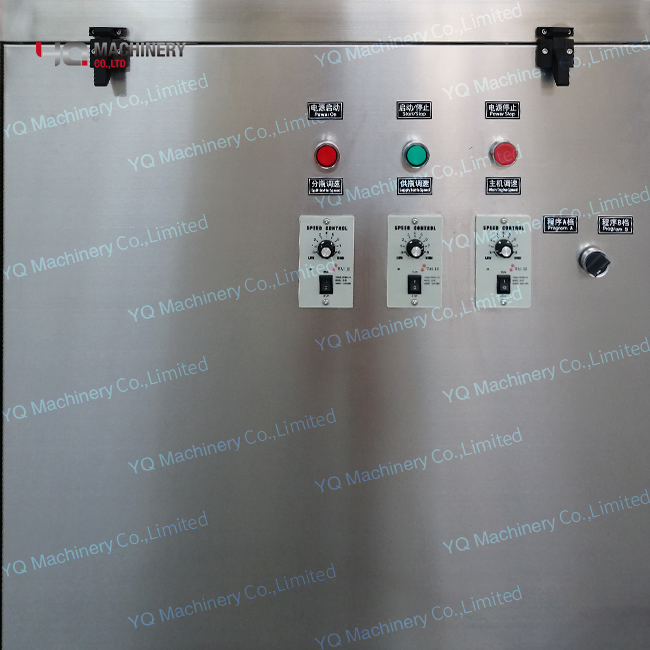

Adopt PLC control,it will stop automatic when the bottles is enough.
It will correct the bottle direction automtically.
It have a large space for store bottles.

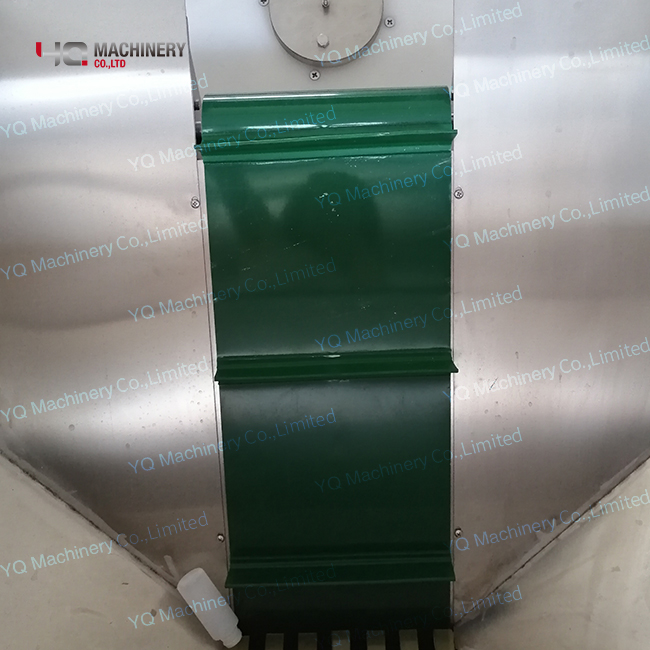

Equipped with bottle lifter.
Main technical parameters:
Production speed | 60-120bottles/min |
Voltage | AC220/50Hz |
Power | 0.3kw |
Weight | 220kg |
Machine dimension | 1800*850*1100MM |
B) Small Volume Filling Machine
Introduction:
A monoblock filling machine is an economical choice versus an inline packaging system. The cost of a single monoblock system can save money when compared to purchasing all the individual machines required to do the same on an inline system, depending on what packaging components are included on the monoblock filler. For certain applications, a monoblock filling system may also increase the speed of the packaging process by taking control of the bottles, vials or other containers and removing the need to send them down a conveyor system.
Advantage:
a monoblock filling system will consist of a starwheel that will move containers from one piece of
packaging equipment to another by simply turning the starwheel in a consistent manner. One
of the most obvious advantages of a monoblock filler is that the space required for the packaging
equipment is reduced from that of traditional inline systems. Long and complex conveyor
systems for transferring bottles or containers are replaced by the single starwheel. Individual,
stand alone packaging machines such as liquid fillers, capping machines are replaced by
components serving the same function, but surrounding the starwheel. For facilities with
limited space, the monoblock may be the only alternative for automating their packaging system.
a) Filling part
b) Capping part
Technical Parameters
Model | YQVF-120 |
Power | 220V / 50Hz |
Power | 2.0 kw |
Filling range | 10-100ml (can be customized) |
Filling volume error | ≤ ± 1% |
Production capacity | 20-40 bottles / minute |
Dimension | 2300 * 1200 * 1800mm |
Machine net weight | 600 kg |
C) Vial labeling machine
Introduction:
Vial Automatic Labeling Machine is a stand type bottle labeling machine that is suitable for adhesive labels to be applied on cylindrical containers of various shape and material.
Automatic Labeling Machine can label various types of round bottles. The bottle labeler is designed with a solid base, allowing the labeling system to reach high speeds while maintaining stability. Wrap-Around Labeler is the most economical and efficient machine in terms of capabilities. This labeler is fast, easy to operate, and easy to maintain. It is flexible enough to handle production schedule and product changes quickly and easily.
Main technical parameters:
Operating direction | Left or Right |
Labeling Accuracy | ±1.0 mm(subject to the roughness of the plane) |
Production(bottle/min) | 10-100(according to the size of bottle and label) |
Label Specifications | adhesive sticker,transparent or opaque |
The application of bottle | Outer diameter 20-100mm Height 35-200mm(can be customized according to your requirement) |
The application of label | Height 20-180mm ; Length 23-300mm(can be customized according to your requirement) |
The inner diameter of label roll | 76mm |
The outer diameter of label roll | 350mm (max) |
The power of motor(w) | 1.5KW |
Voltage | AC220V 50/60HZ Single phase |
Size appearance(mm) | 2000(L) 800(W) 1500(H)mm |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
After-sale service:
1. Instruction for Installation and Debugging
Before delivery, we takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.
We also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer, provides the engineer with round-trip tickets, accommodation, vehicle and $100 per day salary.
2. User Training
Before delivery, we will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.
3. Warranty Period
The warranty period for machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.Mechanical models are standard, make special design according to customer requirements.
