YQCF-2
YQ
Introduction:

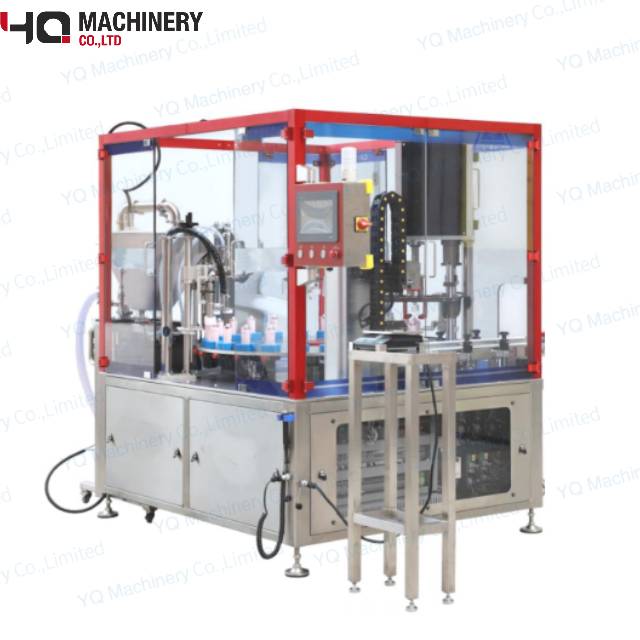

Cosmetic products can range from thin liquid products such as perfume and baby oils to thicker creams and lotions for skin care and hair. In an industry that serves a large variety of product types, monoblock filling machine will normally work for all of the products. When it comes to cosmetics, this filling machine for cosmetics that are ideal for the different creams and lotions offered by the industry.
YQ machinery has a complete range of top-of-the-line lotion filling and cosmetic cream filler machines for the cosmetics market. From moisturizer tubs, to hand creams in extra small containers, YQ machinery has the experience and know-how to cater to your packaging needs.
Advantage:

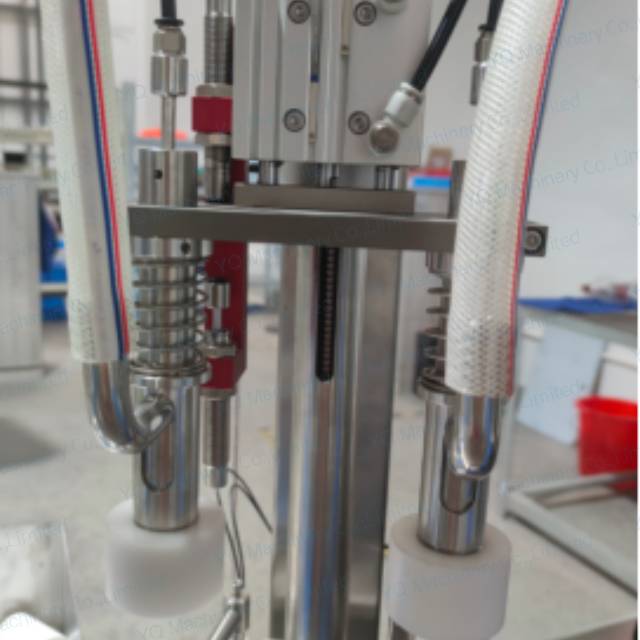

1. Blow suction bottle cleaning system

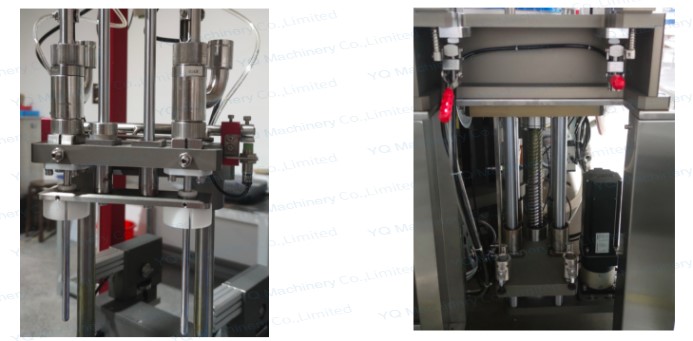

2. Filling with servo motor
a.High filling precision;
b.The filling speed is adjustable to achieve different filling speeds for different materials;
c.Effectively solve the problem of material foaming.
3. Adopt the latest anti-collision bottle mouth device.
Prevent the occurrence of problems such as spillage, damage to the bottle, and the breaking of the filling head,which are caused by the filling head hitting the bottle mouth to be filled during the filling process.
4. Equipped with a jog function, which is convenient and quick to adjust.

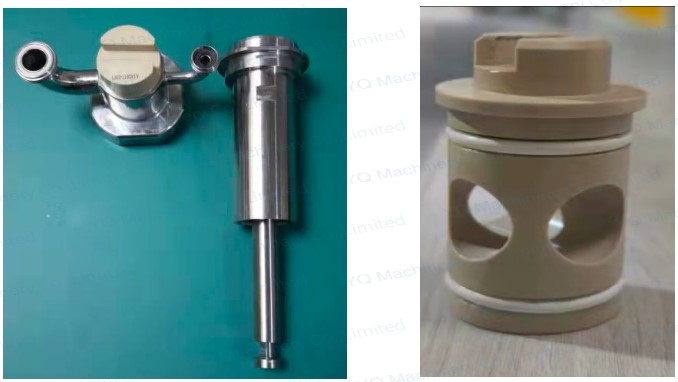

5. The filling valve on the equipment adopts our customized food-grade valve.
The valve structure is simple to disassemble, easy to clean without dead ends, and all pipes adopt sanitary quick-install pipes and quick-connect joints; all valves and pipes are easy to disassemble and clean.

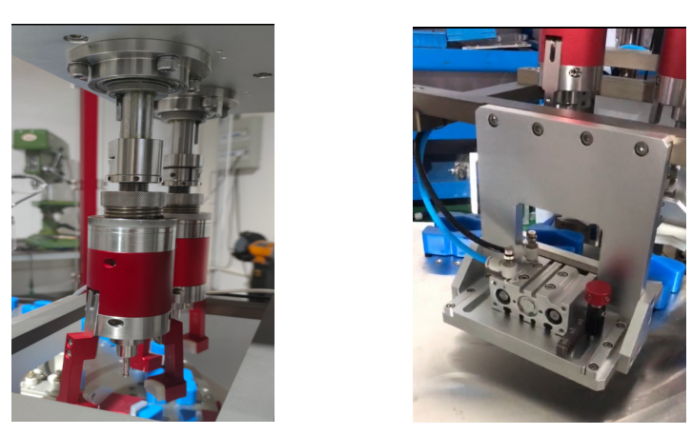

6. The capping torque of the servo motor is adjustable, and the cap is not damaged.
7. Knob type adjustment, convenient and quick adjustment of the bottle clamping mechanism
Technical parameter
Production capacity | 45BPM (Testing with 30ml water) 35BPM (Testing with 100ml water) |
Filling accuracy | 10-100ml ±0.5g 101-300ml ±0.5% |
Diameter of bottle mold | 15-70mm (diameter 15-25mm customized clamp mold according to bottle) |
Height of bottle mold | 35-220mm |
Filling volume | 15-300ml |
Air preasure | 0.6-0.8Mpa |
Voltage | 220V 50HZ |
Power | 5KW |
Net weight | 1000kg |
Machine dimension(L*W*H) | 2000*1700*2000mm |
For a lotion cream filling system that gives you the results you want from your production line, you can fully customize your cosmetics packaging solutions configuration with different size and shape combinations. Meet space and application requirements with a system that's tailored to fit your facility. If you would like help with the design of your cosmetics bottle filling machine, our experienced experts can help decide on the best filling equipment options and installation.
To get started on your lotion and cream filling system installation today, contact YQ Machinery. Our packaging experts are ready to help you determine which equipment your facility needs and integrate it in your facility. To further improve performance and give your production line the tools it needs to remain productive through long periods of heavy use, we offer more service and installation.
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
