Introduction:

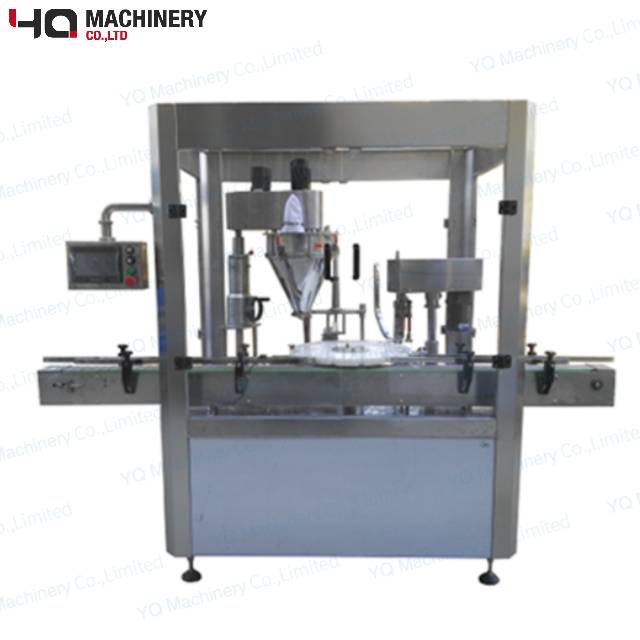

Monoblock filling plugging capping Machine is suitable for plastic or glass Vials with steady speed. It is constructed as per GMP standards in stainless steel finish including vial filler frame structure. To match the speed of incoming and outgoing vials, it can be with bottle unscramble as an option. Parts that come in contact with powders are specially made from SS316 materials if you want. The monoblock filling Machine is equipped with auger filler system.With vibratory bowl, It can offer inner plug to do stopper inserting system which operates in a continuous mode with synchronized speed of machine. Monoblock filling plugging capping Machine is suitable for plastic or glass Vials with steady speed.
Monoblock filling plugging and capping machine can be either a single-indexing or dual-indexing multi-station platform that can be configured to handle several types of applications. The vial filler is designed to work with free-standing containers or with the use of a puck system. This Monoblock filling plugging capping capping machine can be equipped powder dosing system(auger filler), a choice of plugging and/or capping station, torquing and/or crimping solution.

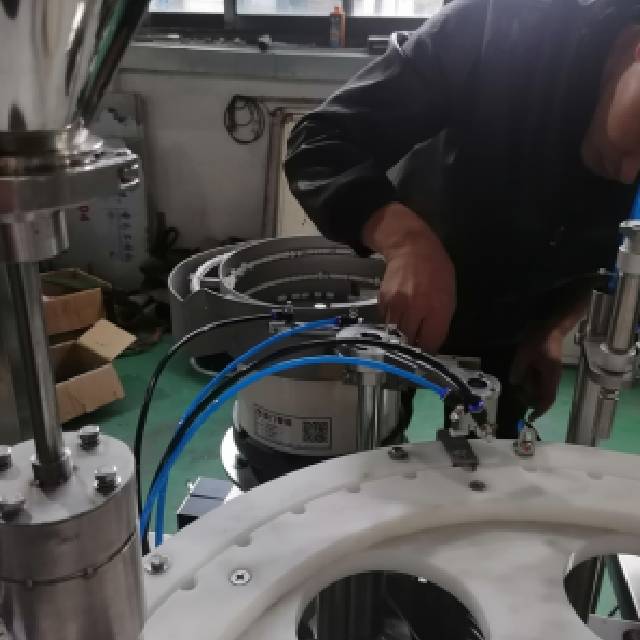

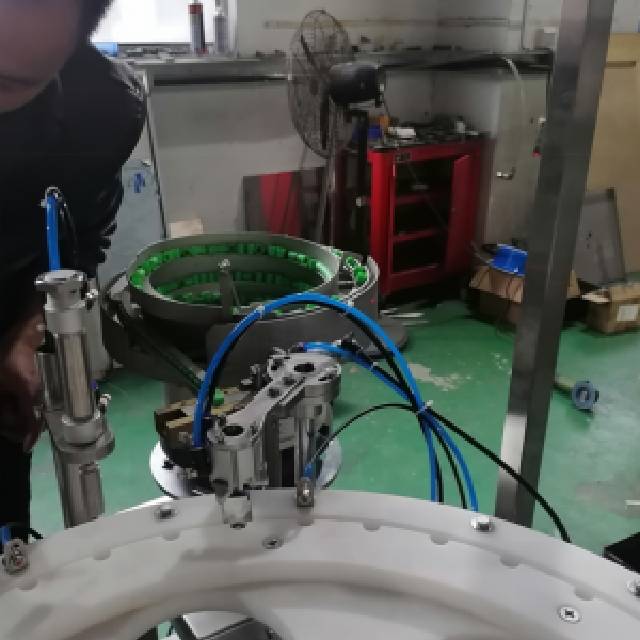

Sorting options can be a centrifugal bowl or a vibratory system for tips, plugs and caps. The low-profile design is easy to clean and maintain to comply with GMP standards and regulations. Removable stainless steel doors on the front and back of the machine provides quick access to internal components and electrical controls.

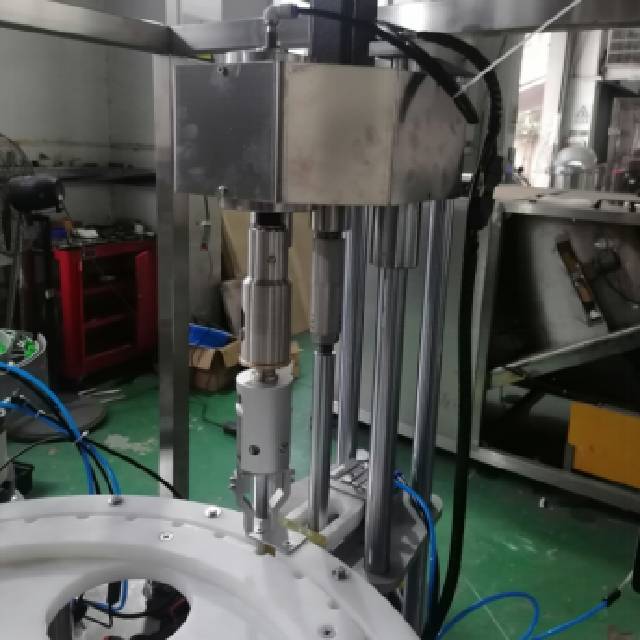

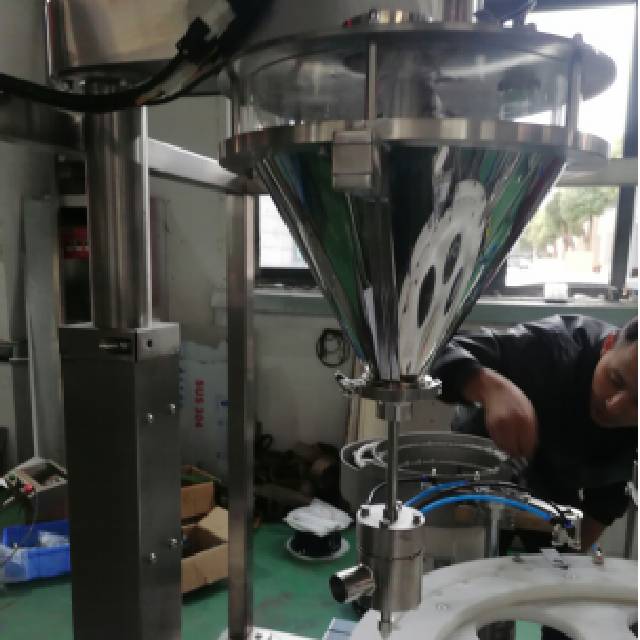

The automatic monoblock filling plugging capping machine can accommodate a single or dual step filling operation. The containers are first brought to the turret indexing assembly by conveyor. As the containers index around the star wheel, the powder can be introduced via auger filler. Once filled, the star wheel may jog one or two more positions to the position under the plug/tip inserter, then to the chuck cap placer and tightener. Once completed the container is released onto the conveyor to exit to a separate labeling machine for labeling and collection.
Features
Closure types: screw caps or crimp tops
Speed range: 15-30 per minute
Cam driven fill station; option for servo driven
Filling options include auger filler,piston, peristaltic, etc.
Stainless steel or ceramic wetted components
Quick removal of wetted components for clean-up
Built in plugging system for tip
Accuracy in filling +/- 1% depending on powder
Cost effective for enhanced productivity
No bottle - no fill system
All contact parts made of stainless steel material
Technical parameter
Filling volume | 5-500g (can change screw if volume is large different) |
Capacity | 20-30BPM (adjustable) |
Filling head | 1/2 |
Capping head | 1 |
Air pressure | 0.6-0.8Mpa |
Power supply | 220V/50Hz(Can be customized) |
Power consumption | 1.5kw |
Machine weight | 600kg |
Overall size | 2000×800×1500mm(mm) |
About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1.All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2.In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.
Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.
B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.
C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.
D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
